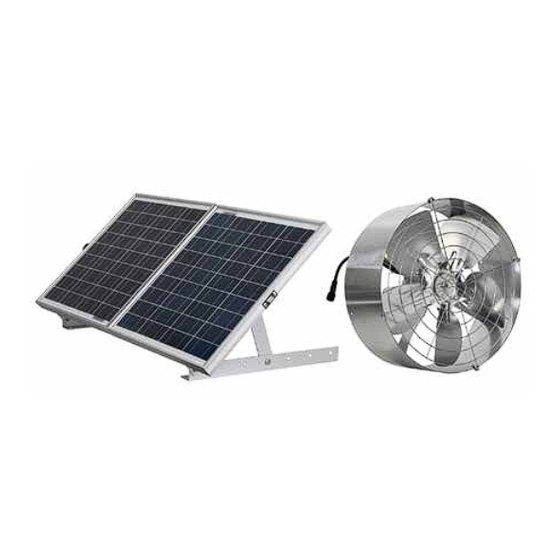

- Page 1 ECO-WORTHY 12 5/8 inch Solar Fan & 30W Foldable Solar Panel Email:ECO666888@163.com Call:1-866-939-8222...
- Page 2 Solar Powered Attic Fan This is a DC solar exhaust fan with a high flow of 3000 CFM, which ● can meet most of the air circulation needs of family life, sheds, attics, roofs, attics, courtyards, greenhouses, RV, boats, cabin, chicken coops, doghouse,garages, storage rooms , factories etc.
- Page 3 EASY INSTALLATION - Plug and play, beginner friendly. ● FOLDABLE DESIGN - The foldable design of the solar panel saves ● storage space and is convenient to carry. READY-TO-USE - It's a ready-to-use solar fan system for home, shed, ● garage or RV, outdoor, etc.
-
Page 4: Packing List
9. When working with asphalt shingles in cold weather (below 40oF), take care to avoid damage to the shingle edges and corners. Packing List 1 piece 12 5/8 inch DC Solar Fan 1 piece 30W Folding Solar Panel 1 piece... -
Page 5: Tools And Materials Required
Fodable Solar Panel Irradiance and cell temperature 1000W/㎡ AM1.5 25℃ Open circuit voltage (Voc) 21.6V Max power voltage (Vpm) Short circuit current (Isc) 1.83A Max power current (Ipm) 1.67A Open size 27.8*13.8*0.7in (707x350x18mm) Folding size 13.8*13.8*1.5in (350x350x38mm) Tools and Materials Required Impact drill / electric hammer (for opening holes) Screwdriver... -
Page 6: Installation Preparation
Installation Preparation 1. This solar fan is a perfect cooling 2. You can choose the installation and ventilation solution for any place according to your needs. And space at your home - including the the best wall thickness is 4 1/4in attics, roofs, garages, sheds, green- (10.8cm). -
Page 7: Install The Brackets
4. Install the exhaust fan into the hole, then use a screwdriver to screw on the corresponding screws, and seal the gap between the exhaust fan and the wall with glue. NOTE: If you want the air to blow OUT, please install the fan with the blade facing away from you. - Page 8 1. Install and fix the longest 2. Connect another alummi- 3. Install the shortest alum- aluminum alloy stent on the num alloy stent to the first minum alloy stent according one. to the required. angle solar panel. 4. Install the alumminum alloy 5.
- Page 9 Warranties Limited 365 Day Warranty (Retail) ECO-WORTHY makes every effort to assure that its products meet high quality and durabili- ty standards, and warrants to the original purchaser that this product is free from defects in materi- als and workmanship for the period of 365 days from the date of purchase.
-
Page 10: Questions And Answers
If you wan it to suck air IN, then mount with the blades facing you. The installation direction depends on your needs, thanks. The diameter of the fan is 12 5/8 in. (320mm) It must have direct exposure to the sun to work . The best working angle of solar panels is facing south, forming an angle of 20-30 degrees with the horizontal. - Page 11 Yes, the cable length can be extended. The solar panel comes with 1 piece of 16ft (5m) extension cable which has a connector for the plug to the fan conveniently. No thermostat for the fan is provided. It runs automatically when the solar panels are exposed to sunlight and conversely shuts off when it’s dark.
