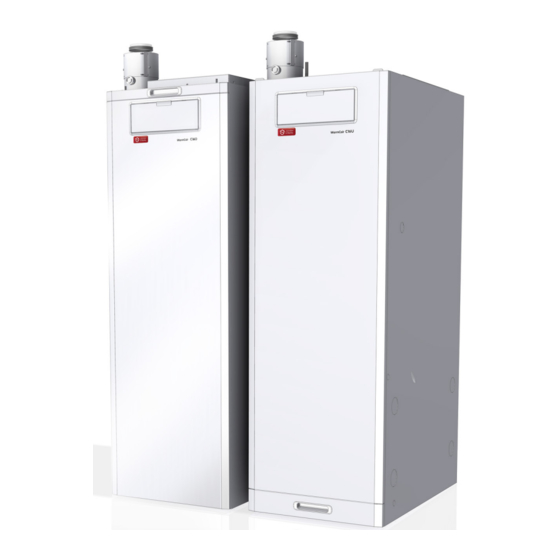

Johnson & Starley C10D User Instructions
Condensing air heater high efficiency downflow & upflow condensing air heaters
Hide thumbs
Also See for C10D:
- Instructions manual (44 pages) ,
- Installation, commissioning & servicing instructions (37 pages) ,
- Manual (32 pages)
Table of Contents
Advertisement
WARMCAIR
Condensing Air Heater
High Efficiency
Downflow & Upflow
Condensing Air Heaters
USERS
INSTRUCTIONS
C10D
- G.C. No. 42-416-99
C16D
- G.C. No. 42-415-19
C26D
- G.C. No. 42-417-98
C36D
- G.C. No. 42-451-17
C46D
- G.C. No. 42-415-21
These instructions are to be left with the User or adjacent to the Gas Meter
C16U
- G.C. No. 42-415-23
C26U
- G.C. No. 42-415-25
C36U
- G.C. No. 42-415-27
C46U
- G.C. No. 42-415-29
www.johnsonandstarley.co.uk
Publication No. ZZ 1340-3
January 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson & Starley C10D
Summary of Contents for Johnson & Starley C10D
- Page 1 Publication No. ZZ 1340-3 January 2018 WARMCAIR Condensing Air Heater High Efficiency Downflow & Upflow Condensing Air Heaters USERS INSTRUCTIONS C10D - G.C. No. 42-416-99 C16U C16D - G.C. No. 42-415-23 - G.C. No. 42-415-19 C26U C26D - G.C. No. 42-415-25 - G.C.
-
Page 2: Table Of Contents
CONTENT Brief Description Modulating Control - How It Works To Light Your Heater To Stop Your Heater Temperature Control Control Of Your Heating System Time Control Operation Air Filter Condensate Drain Service & Maintenance Power Cuts Troubleshooting Error Codes Cleaning Important Information NOTE This appliance is not intended for use by persons (including children) with reduced physical, sensory... -
Page 3: Brief Description
BRIEF DESCRIPTION WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: IT IS A STATUTORY REQUIREMENT THAT ALL GAS APPLIANCES BE INSTALLED BY COMPETENT PERSONS, (i.e. GAS SAFE REGISTERED INSTALLERS. GAS SAFE MEMBERSHIP ENQUIRIES - TEL: 0800 408 5500) IN ACCORDANCE WITH THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS (CURRENT EDITION). -
Page 4: Temperature Control
TEMPERATURE CONTROL The figure on the room control are degrees centigrade. It is worth noting that best economy is achieved at the lowest setting that you find acceptable. Unlike normal room thermostats, the OpenTherm controller varies the heat output of the condensing heater to which it is connected. This adds significantly to the heater efficiency by ensuring that the heater keeps in economical condensing mode whenever possible. -
Page 5: Time Control Operation
It should be noted that under certain conditions, Le is displayed. This is part of the control sequence and the appliance should reset automatically. Ensure that the filter and the ducts are clear. You can control the heat to each room by opening and closing the warm air outlets, but never close more than half of the outlets at any one time or the performance of the heating system will be affected. -
Page 6: Condensate Drain
CONDENSATE DRAIN The condensate drain must not be modified or blocked. Blockage of the condensate drain caused by debris or freezing, can cause the boiler to lockout. If freezing is suspected and the pipe run is accessible, then an attempt to free the obstruction by pouring hot water on to the pipe may be made. -
Page 7: 13. Error Codes
ERROR CODES 13.1 FLAME LOCKOUT Should the heater fail to light after 5 attempts, it will lock out Error 1. Check the gas meter is turned on and any pre-payment meters have credit. Pressing the reset button will enable the heater to relight. 13.2 FLAME LOSE Should the flame signal be lost 5 times in any 4 minute period then the heater will lockout and an error code 26 will be displayed in the centre of... - Page 8 Johnson & Starley Ltd Rhosili Road, Brackmills, Northampton NN4 7LZ sales@johnsonandstarley.co.uk marketing@johnsonandstarley.co.uk Reception/Customer Service 01604 762881 01604 767408 Anniversary 1922 - 2012...
