C11G (Rev. 8.2) User Manual
7.2 Connecting NPN sensors.

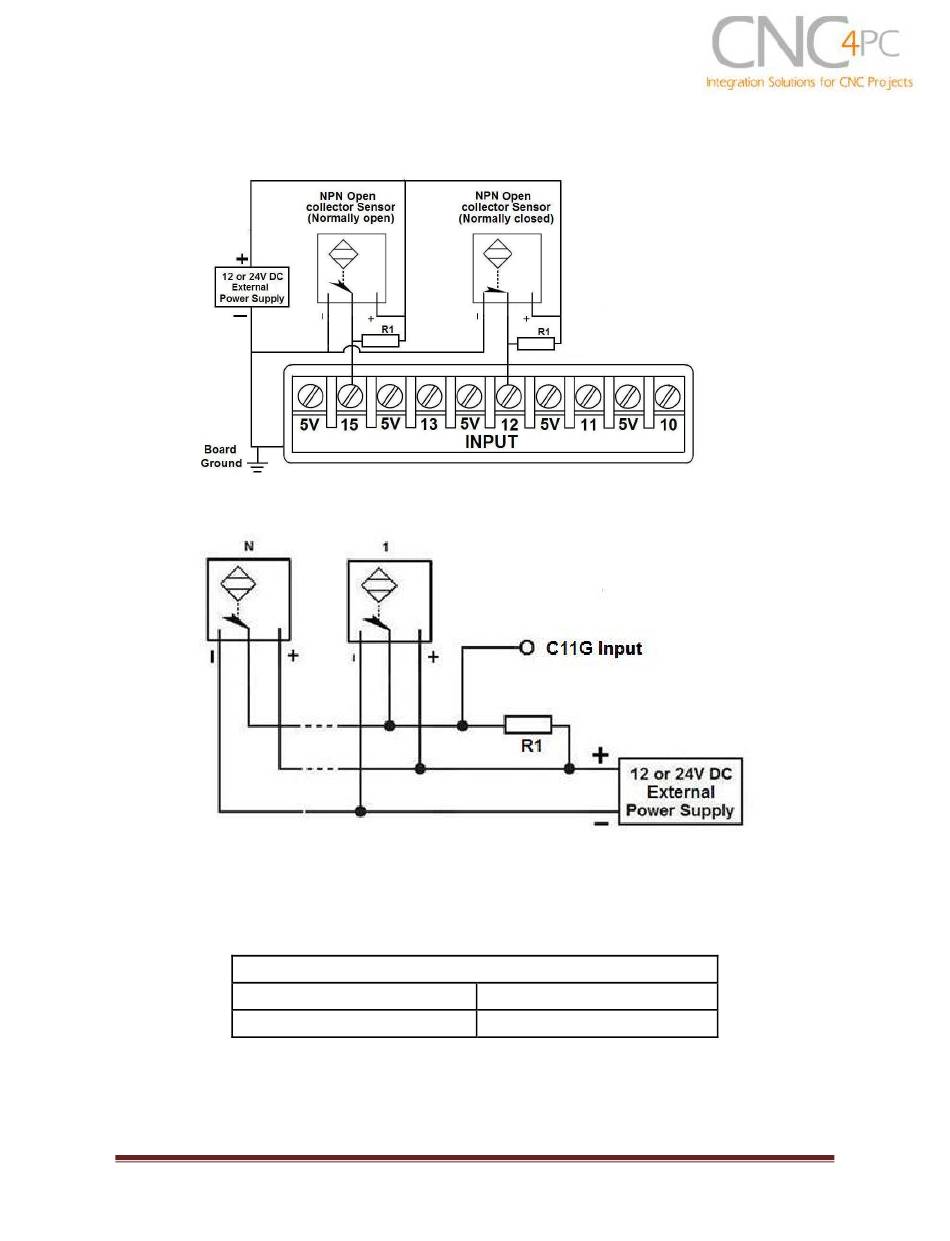

Fig. 8 Wiring diagram to connect NPN open collector proximity sensors.
Fig. 9 Wiring diagram to connect in parallel NPN open collector proximity sensors.
Connecting NPN open collector proximity sensor with the C11G
R1 Value (12V)
R1 Value (24V)
Aprox. 10KΩ
Aprox. 25KΩ
Revision: 01/27/2010
http://cnc4pc.com/TechDocs/C11GR8_2_User_Manual.pdf 13/21
