Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
Model ESFR-17
Early Suppression Fast Response Pendent Sprinklers
16.8 K-factor
General
Description

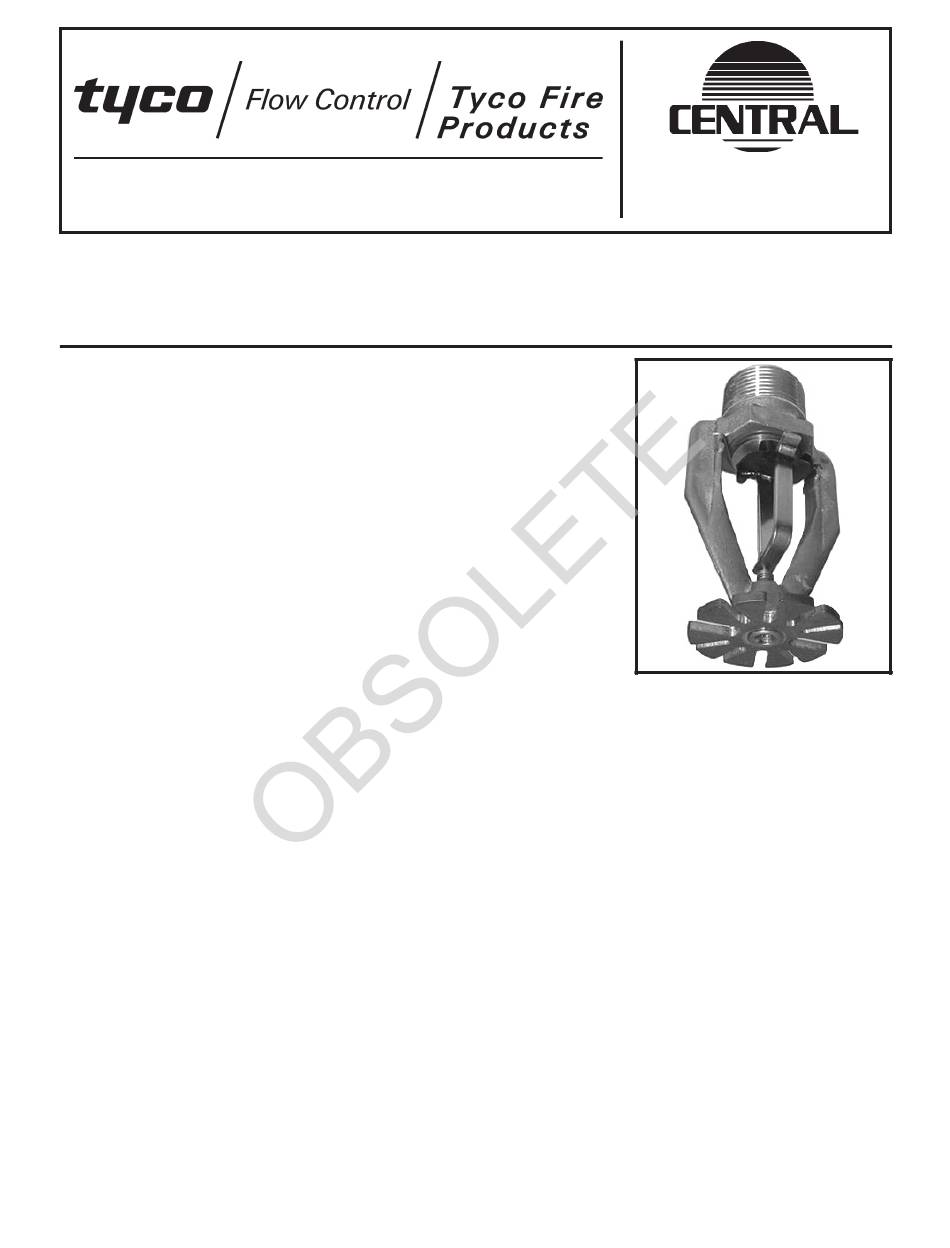

The Model ESFR-17 Sprinklers (Ref.
Figure 1) are "Early Suppression Fast
Response Sprinklers" having a nomi-
nal K-factor of 16.8. They are suppres-
sion mode sprinklers, and they are es-
pecially advantageous as a means of
eliminating in-rack sprinklers, when
protecting rack storage.
The Model ESFR-17 is primarily de-
signed for use in ceiling only sprinkler
systems (i.e. no in-rack sprinklers) for
the protection of storage heights of
most encapsulated or non-encapsu-
lated common materials including car-
toned unexpanded plastics of up to 35
ft. (10,7 m) with ceiling heights to 40 ft.
(12,2 m), as well as cartoned ex-
panded plastics up to 25 ft. (7,6 m) with
ceiling heights to 30 ft.(9,1 m). In addi-
tion, the protection of some storage
arrangements of roll paper and rubber
tires can be considered.
In some cases, the Model ESFR-17
can be used to protect storage heights
up to 40 ft. (12,2 m) with ceiling heights
to 45 ft. (13,7 m) in combination with
one level of in-rack sprinklers.
The ESFR-17 provides the system de-
signer with hydraulic options not pres-
ently available to traditional ESFR
sprinklers having a nominal K-Factor
of 14.0. In particular, the Model ESFR-
17 has been designed to operate at
substantially lower end head pres-
sures, as compared to ESFR sprin-
klers having a nominal K-Factor of
14.0. This feature offers flexibility when
sizing the system piping, as well as
possibly reducing or eliminating the
need for a system fire pump.
WARNINGS
The Model ESFR-17 Sprinklers de-
scribed herein must be installed and
maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
Page 1 of 4
tection Association, in addition to the
standards of any other authorities hav-
ing jurisdiction (e.g., FM Global). Fail-
ure to do so may impair the integrity of
these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
relative to any questions.
Sprinkler
Identification
Numbers
SIN TY7226 - (Pendent K=16.8)
Technical
Data
Approvals
FM Approved. UL and C-UL Listed.
(Refer to the Design Criteria Section)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT or ISO 7-R3/4
Discharge Coefficient
1/2
K = 16.8 GPM/psi
1/2
(241,9 LPM/bar
)
Temperature Ratings
165°F/74°C or 214°F/101°C
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . Brass
Deflector . . . . . . . . . . . . Bronze
Compression Screw . . . . . . . . .
. . . . . . . . . . . . Stainless Steel
Hook . . . . . . . . . . . . . . Monel
Strut . . . . . . . . . . . . . . Monel
Link Assembly
. . . . Solder, Nickel
Button . . . . . . . . . . . . . Brass
FEBRUARY, 2002
Customer Service/Sales:
Tel: (215) 362-0700 / (800) 523-6512
Fax: (215) 362-5385
Sealing Assembly . . . . . . . . . .
. . . . . . Beryllium Nickel w/Teflon*
Ejection Spring
. . . . . . . Inconel
Patents
U.S.A. Patent
Numbers 4,580,729
5,829,532, and 6,059,044 may be ap-
plicable to the Model ESFR-17. Other
patents are pending.
Operation
The fusible link assembly is comprised
of two link halves that are joined to-
gether by a thin layer of solder. When
the rated temperature is reached, the
solder melts and the two link halves
separate activating the sprinkler and
allowing water to flow.
TFP315 (3-1.6)
TFP315

Advertisement

loading
Need help?

Need help?

Do you have a question about the CENTRAL ESFR-17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tyco Fire Product CENTRAL ESFR-17

  • Page 1 Customer Service/Sales: Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 Tel: (215) 362-0700 / (800) 523-6512 Fax: (215) 362-5385 Model ESFR-17 Early Suppression Fast Response Pendent Sprinklers 16.8 K-factor tection Association, in addition to the General standards of any other authorities hav- ing jurisdiction (e.g., FM Global).
  • Page 2 Page 2 of 4 TFP315 1-Frame 2-Deflector 3-Compression Screw 4-Hook 5-Strut 6-Link Assembly 7-Button 8-Sealing Assembly 9-Ejection Spring FIGURE 1, MODEL ESFR-17 EARLY SUPPRESSION FAST RESPONSE PENDENT SPRINKLER (9,3m ) and the minimum area of cupancies which qualify for use with Design coverage is 80 ft (7,4 m...
  • Page 3 TFP315 Page 3 of 4 Installation Care and Limited Maintenance Warranty The Model ESFR-17 Pendent Sprin- klers are to be installed in accordance with the following instructions: The Model ESFR-17 must be main- Products manufactured by Tyco Fire tained and serviced in accordance Products are warranted solely to the NOTE with the following instructions:...
  • Page 4 Page 4 of 4 TFP315 Ordering Procedure When placing an order, indicate the full product name. Please specify the Sprinkler Identification Number (SIN), quantity, and temperature rating. Refer to the Price List for complete listing of Part Numbers. Contact your local distributor for avail- ability.
