Early Suppression Fast Response
Pendent Sprinklers,
Pulsar™ ESFR-1, K=14.0

GENERAL DESCRIPTION

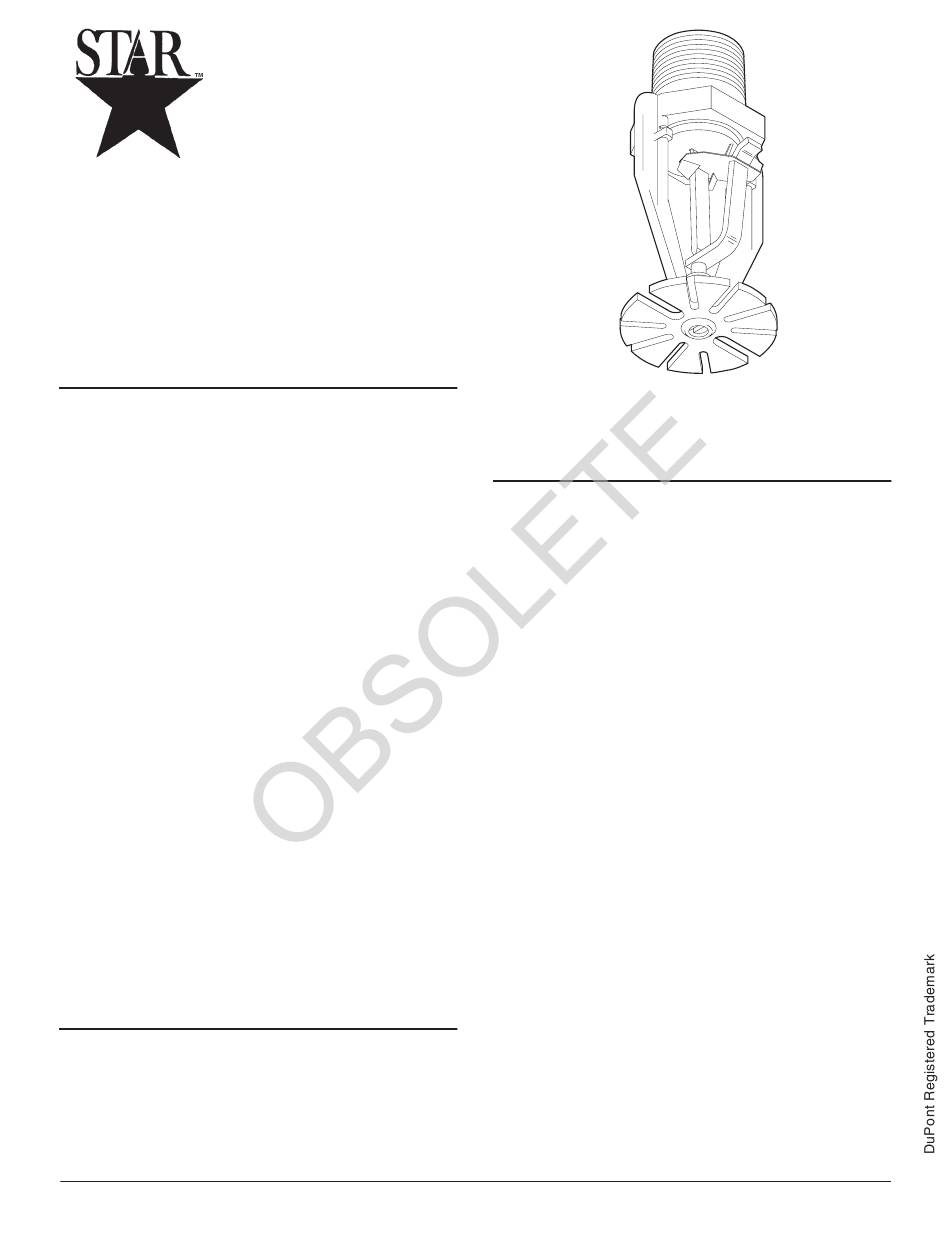

The Star Pulsar ESFR-1 Sprinklers (Ref. Figure 1) are
"Early Suppression Fast Response Sprinklers" having a
nominal K-factor of 14.0. They are suppression mode
sprinklers, and their use is especially advantageous as a
means of eliminating the use of in-rack sprinklers, when
protecting high-piled storage.
The Pulsar ESFR-1 is primarily designed for use with stor-
age heights of most encapsulated or non-encapsulated
common materials including cartoned unexpanded plas-
tics of up to 35 ft. (10,7 m). In addition, the protection of
some storage arrangements of roll paper and rubber tires
can be considered as well.
Applications for the Pulsar ESFR-1 Sprinklers are expand-
ing beyond the current recognized installation standards.
For information regarding research fire tests which may
be acceptable to an Authority Having Jurisdiction (e.g.,
flammable liquids, aerosols, etc.), please contact the
Technical Services Department.
WARNINGS
The Pulsar ESFR-1 Sprinklers described herein must be
installed and maintained in compliance with this docu-
ment, as well as with the applicable standards of the Na-
tional Fire Protection Association, in addition to the stand-
ards of any other authorities having jurisdiction (e.g.,
Factory Mutual Research Corporation). Failure to do so
may impair the integrity of these devices.
The owner is responsible for maintaining their fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.

OPERATION

The fusible link (heat collector) assembly is comprised of
two link halves which are joined together by a thin layer
of solder. When the rated temperature is reached, the sol-
der melts and the two link halves separate, which then al-
lows the sprinkler to activate and flow water.
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500
SIN S8000

TECHNICAL DATA

Approvals
UL and ULC Listed. FM and LPC Approved.
(UL and ULC Listings, as well as FM Approvals, only ap-
ply to the service conditions indicated in the Design
Criteria section.)
VdS Approved; however, the use of the ESFR-1 is re-
quired to be agreed upon by the VdS for each application.
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT or ISO 7-R3/4
Discharge Coefficient
1/2
K = 14.0 GPM/psi
(201,6 LPM/bar
Temperature Ratings
165°F/74°C or 214°F/101°C
Finish
Natural Brass
Physical Characteristics (Ref. Figure 1)
The Pulsar ESFR-1 utilizes a dezincification resistant
bronze alloy frame. The strut and hook are monel; and,
the button, deflector, and compression screw are bronze.
The gasketed spring plate consists of a beryllium nickel
disc spring that is sealed on both its inside and outside
edges with a Teflon V gasket, and the two halves of the fus-
ible link assembly are nickel.
Patents
U.S.A. Patent Number 4,580,729 and 4,901,799 are appli-
cable to the Pulsar ESFR-1.
1/2
)
1-4.1.10
3-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Star Pulsar ESFR-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco Fire Product Star Pulsar ESFR-1

  • Page 1 Pulsar™ ESFR-1, K=14.0 GENERAL DESCRIPTION SIN S8000 The Star Pulsar ESFR-1 Sprinklers (Ref. Figure 1) are “Early Suppression Fast Response Sprinklers” having a nominal K-factor of 14.0. They are suppression mode sprinklers, and their use is especially advantageous as a...
  • Page 2 STAR SPRINKLER 1-4.1.10 Page 2 "FITTING SIDE" 1/2" (12.7 mm) TOWARDS SPRINKLER NOMINAL MAKE-IN FITTING FIGURE 2 W-TYPE 2 SPRINKLER WRENCH 3/4" NPT WRENCH 3-9/16" RECESS (90.5 mm) WRENCH FLAT (BOTH SIDES) CARE AND MAINTENANCE The Pulsar ESFR-1 must be maintained and serviced in accordance with the following instructions: NOTE Before closing a fire protection system main control valve...
  • Page 3 STAR SPRINKLER Page 3 1-4.1.10 LIMITED WARRANTY ORDERING PROCEDURE Products manufactured by Tyco Fire Products are war- Please Specify: ranted solely to the original Buyer for ten (10) years against defects in material and workmanship when paid Pulsar ESFR-1 Pendent Sprinkler (#8000) for and properly installed and maintained under normal use and service.
  • Page 4 1-4.1.10 STAR SPRINKLER Page 4 7071 S. 13th Street • Suite 103 Oak Creek, WI 53154 PRINTED IN U.S.A. 3-01 www.starsprinkler.com...
