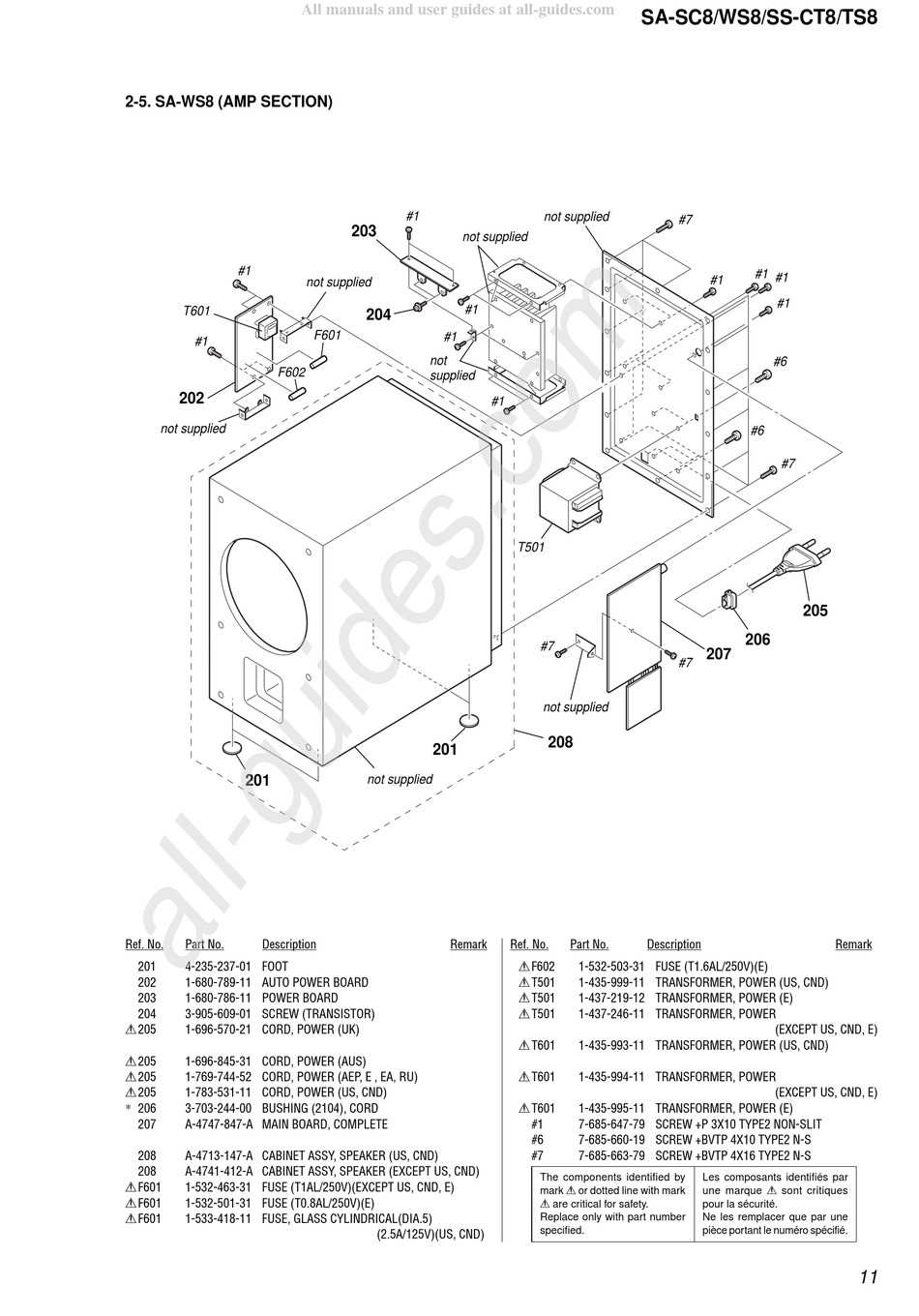

2-5. SA-WS8 (AMP SECTION)

#1
T601
#1
F602
202
not supplied
201
Ref. No. Part No. Description
201 4-235-237-01 FOOT
202 1-680-789-11 AUTO POWER BOARD
203 1-680-786-11 POWER BOARD
204 3-905-609-01 SCREW (TRANSISTOR)
0 205 1-696-570-21 CORD, POWER (UK)
0 205
1-696-845-31 CORD, POWER (AUS)
0 205 1-769-744-52 CORD, POWER (AEP, E , EA, RU)
0 205 1-783-531-11 CORD, POWER (US, CND)
* 206 3-703-244-00 BUSHING (2104), CORD
207 A-4747-847-A MAIN BOARD, COMPLETE
208 A-4713-147-A CABINET ASSY, SPEAKER (US, CND)
208 A-4741-412-A CABINET ASSY, SPEAKER (EXCEPT US, CND)
0 F601 1-532-463-31 FUSE (T1AL/250V)(EXCEPT US, CND, E)
0 F601
1-532-501-31 FUSE (T0.8AL/250V)(E)
0 F601
1-533-418-11 FUSE, GLASS CYLINDRICAL(DIA.5)
All manuals and user guides at all-guides.com
#1
203
not supplied
not supplied
#1
204
F601
#1
not
supplied
201
not supplied
Remark
(2.5A/125V)(US, CND)
SA-SC8/WS8/SS-CT8/TS8
not supplied
#1
T501
#7
not supplied
208
Ref. No. Part No. Description
0 F602
1-532-503-31 FUSE (T1.6AL/250V)(E)
0 T501 1-435-999-11 TRANSFORMER, POWER (US, CND)
0 T501 1-437-219-12 TRANSFORMER, POWER (E)
0 T501
1-437-246-11 TRANSFORMER, POWER
0 T601 1-435-993-11 TRANSFORMER, POWER (US, CND)
0 T601 1-435-994-11 TRANSFORMER, POWER
0 T601
1-435-995-11 TRANSFORMER, POWER (E)
#1 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
#6 7-685-660-19 SCREW +BVTP 4X10 TYPE2 N-S
#7 7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
#7
#1
#1
#1
#1
#6
#6
#7
205
206
207
#7
Remark
(EXCEPT US, CND, E)
(EXCEPT US, CND, E)
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
