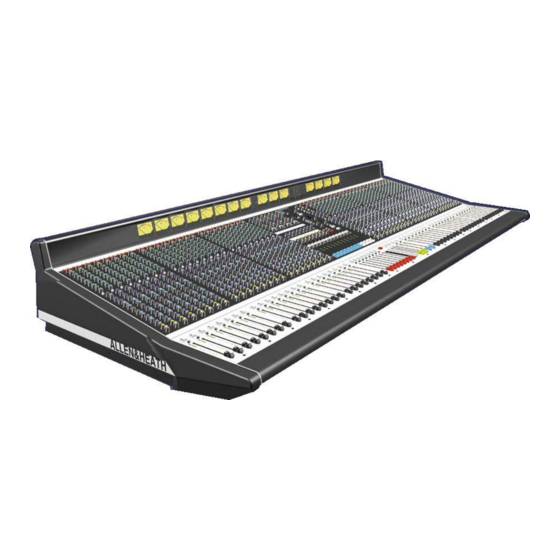

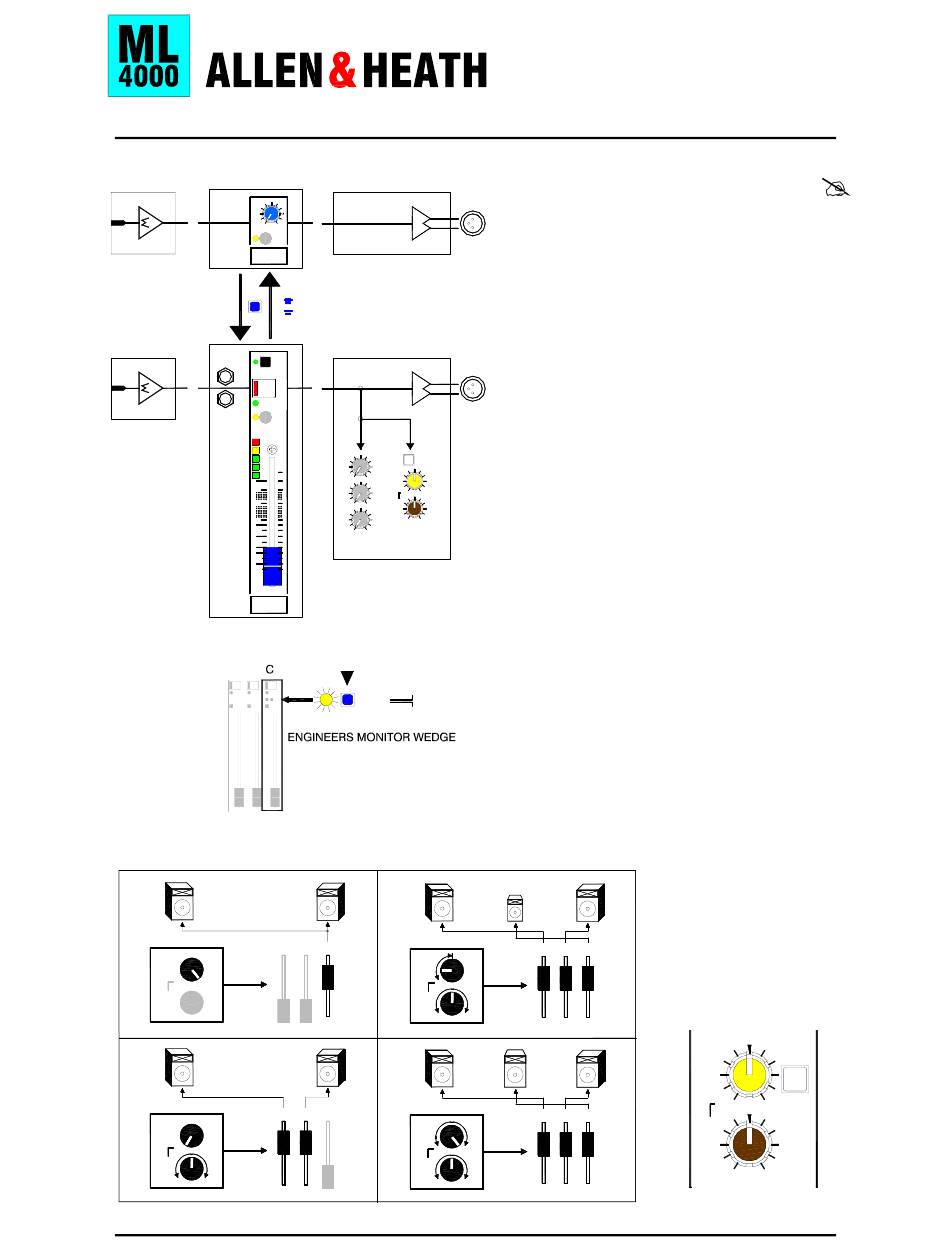

QUICK START SHEET
Configure the Mode Switches :
Use a pen or pointed object to select the underpanel
mode switches.
FRONT-OF-HOUSE
AUX 1-8 = AUX 1-4 and 5-8 switchable pre or post-
fade. Rotary masters.
AUX 9-12 = Switchable pre or post-fade and mono
or stereo in pairs. Fader masters with inserts.
GROUP 1-8 = Audio groups with paired routing
switches. Fader masters with subgrouping and
matrix sends.
MONITOR
AUX 1-8 = Monitor mix 1-4 and 5-8 switchable pre
or post-fade. Fader masters with inserts. Group mix
on rotary masters.
AUX 9-12 = Monitor mix 9-12 switchable pre or
post-fade and mono or stereo in pairs.
masters with inserts.
MAIN C OUT = Engineers wedge monitor.
DUAL MODE
Set the mode switches to configure fader masters 1-
8 in any combination of audio groups and aux
sends.
Using LCRplus™
PAN and BLEND = Two
controls adjust the balance
between L, R and C.
L R C
MAIN MIX = Routes the
channel to the main L,R,C
outputs.
L R C
Fader
=
LCR + MAIN
MIX
BLEND
LR C
=
PAN
L R
