WONDOM ICP5 User Guide

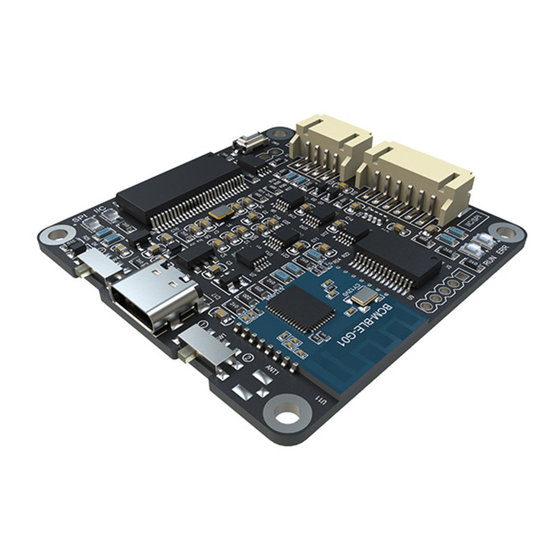

IN-CIRCUIT PROGRAMMER FOR PROGRAMMING, APP CONTROL & PC UI - ICP5
By Sure Electronics Co., Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WONDOM ICP5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sure Electronics WONDOM ICP5

Summary of Contents for Sure Electronics WONDOM ICP5

  • Page 1 WONDOM ICP5 User Guide IN-CIRCUIT PROGRAMMER FOR PROGRAMMING, APP CONTROL & PC UI - ICP5 By Sure Electronics Co., Ltd.
  • Page 2 Revision History Revision Description Date V1.0 WONDOM ICP5 PCB version – V100 10-Sept-2021 Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 3 Integrated with Integrated with USB Update ICP5 by EEPROM for operating with Bluetooth BLE for APP UART for PC UI your side for use Analog Devices, Inc., control Control with more products SigmaStudio™ Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 4 (End of Sep) ADAU1701 DSP & BT 5.0 N represents for NOT AVAILABLE; Y represents for AVAILABLE. Y in red means that it’s in plan and you can see the estimated release date. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 5 Contents We cover the following contents in this document. You can click on the title to skip to corresponding chapter. ICP5 Introduction Programming PC UI Control APP Control Intro Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 6 Introduction of ICP5 Programmer ICP5 IN-CIRCUIT PROGRAMMER FOR SIGMASTUDIO PROGRAMMING, APP CONTROL & PC UI CONTROL...
  • Page 7 For connection with WONDOM products integrated with other DSP USBi Mode Switch MODE FUNCTION SW3, Bootloader Start Switch For WONDOM Products with ① ADAU1452 For ICP5 firmware upgrade For WONDOM Products with ② ADAU1701 Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 8 Once ICP5 is connected with target products through the PH-6Pos or PH-4Pos connection port, ICP5 will be powered by the target products directly. There is no need to connect with an extra power supply. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 9 ICP5 is integrated with high performance Bluetooth BLE module, which are for APP control with target products. For now, there is no APP available for use with ICP5. We will develop APPs in the near future. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 10 WONDOM products that are integrated with Analog ADAU1701 DSP and later ADAU1452 DSP. ICP5 is equipped with automatic identification system, which means, it will identify the target product once it is connected. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 11 WONDOM products integrated with other DSP chips, for now there is only JAB2v2. Since the DSP used is not from Analog, it will not support programming with SigmaStudio. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 12 APP Control / PC UI Control If you want SigmaStudio programming function, you ； need to set SW1 at “USBi” ① If you want APP / PC UI control, you need to set SW1 at “Remote”. ② Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 13 Set SW4 at ② “IIC” when you want to program products integrated with For WONDOM Products with ADAU1701; ① ADAU1452 Set SW4 at ① “SPI” when you want to program products integrated with For WONDOM Products with ② ADAU1701 ADAU1452. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 14 DSP products. ICP5 needs online firmware upgrade if it’s used with a target product for the first time. As for the details, please refer to “Firmware Update” part. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 15 When ICP5 is in BootLoader mode, this indicator will blink. ERROR Indicator This error indicator is red and it will be ON when there is problem in hardware connection problem, or the firmware in ICP5 doesn’t match with the connected target product. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 16 ① ② “IIC”, this indicator will be ON. SPI Indicator This indicator is green. When SW1 is set at “USBi” and SW4 is set at ① ① “SPI”, this indicator will be ON. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 17 How to achieve SigmaStudio programming with WONDOM ICP5? ICP5 IN-CIRCUIT PROGRAMMER FOR SIGMASTUDIO PROGRAMMING, APP CONTROL & PC UI CONTROL...
  • Page 18 Analog Devices, Inc. SigmaStudio™ WONDOM Products Integrated with ADAU1701 Here we will use JAB3+ as an example to explain how to connect. WONDOM ICP5 with a 6-pin cable Accessories Speakers Cables Phone … Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 19 Steps Be sure to follow these connection steps. POWERING UP THE BOARD SETTING UP THE ICP5 CONNECTING ICP5 WITH APM2 / JAB3 INSTALLING SIGMASTUDIO SOFTWARE PROGRAMMING CONNECTING THE AUDIO CABLES Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 20 2.Install Microsoft . NET Framework version 2.0, if it has not been previously installed. To do so, double- click “dotnetfx.exe”. 3.Double-click “setup.exe” and following the prompts. A computer restart is not required. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 21 ADAU1701, we need to set SW4 at ② “IIC”. MODE FUNCTION After connection, run SigmaStudio software and ① For WONDOM Products with ADAU1452 create a new project. ② For WONDOM Products with ADAU1701 Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 22 ICP5 is successfully recognized. See figure 1. If it turns orange, it means ICP5 is not recognized. Please check the switches and reconnect the ICP5 until it turn green. Figure 1 Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 23 You can find the files in the detailed page of products. If you use ICP5 with APM2 for programming, make sure the SW1 of APM2 is set at ① “RUN”. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 24 Please power the target products with power supply within the recommended range. Otherwise, boards may be damaged permanently. After powering up, we can connect ICP5 with JAB3+ through a PH-6Pos cable. Everything is done. We can start programming now. DC 12V-26V ① ② Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 25 You can download them in the following table. Products Demo Program Document you may need APM2 APM2_SigmaStudio.dspproj Download JAB3 - Mono JAB3_SigmaStudio_MONO.dspproj Download JAB3 - Stereo JAB3_SigmaStudio_STEREO.dspproj JAB3+ JAB3+_Stereo_ADAU1701_DEMOProgram.dspproj Download JAB4 JAB4_ADAU1701_DEMOProgram.dspproj JAB5 JAB5_ADAU1701_DEMOProgram.dspproj Download Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 26 Please note, this is online debug mode, that means, the program will be lost once you re-power on. If you want to run the program offline, you need to write the program into ADAU1701. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 27 If it shows “Design Mode” in the lower right corner, you need to click “Link Compile Download” at first. When it shows “Active: Compiled”, you can move on to write program into ADAU1701. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 28 DSP. You may want to restore original firmware in some cases. Below are original firmware for your download. Products Original Firmware for Restore Factory Settings APM2 APM2_Original_Firmware_V2.0 JAB3 - Mono JAB3_Mono_Original_Firmware_V2.0 JAB3 - Stereo JAB3_Stereo_Original_Firmware_V2.0 JAB3+ JAB3+_Original_Firmware JAB4 JAB4_Original_Firmware JAB5 JAB5_Original_Firmware Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 29 1. Right click the “E2Prom” (see Figure 6) and click “Read/Write Window”. You will see the following interface (Figure 7). Figure 7 Figure 6 2. Click ‘Click here to browse for file’ and select firmware file (Figure 8). Then click “Display File“ like Figure Figure 8 Figure 9 Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 30 Original Firmware Restore 3. Click ‘Write Display to E2prom’ then click ‘OK’ of the prompt box (Figure 10). Figure 10 Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 31 ➢ Disconnect with ICP5 and re-power target products play music) under powering condition when connected with ICP5 ➢ Make sure the SW1 on APM2 is set at  (RUN) (Not applicable to other products) Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 32 How to Realize PC UI Control with WONDOM ICP5? ICP5 IN-CIRCUIT PROGRAMMER FOR SIGMASTUDIO PROGRAMMING, APP CONTROL & PC UI CONTROL...
  • Page 33 We are working hardly on promoting the releasement of PC UI JAB2v2 for other products. You can check estimated release date in JAB3 (Mid-Nov) the right table. JAB3+ (End of Oct) JAB4 (Mid-Oct) JAB5 (End of Sep) Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 34 CONTENTS UPDATE FIRMWARE IN ICP5 CONNECT ICP5 WITH TARGET FOR THE FIRST USE PRODUCT USER INTERFACE COMPLETE HARDWARE BUILD AN AUDIO SYSTEM WITH INTRODUCTION SETTINGS OF ICP5 TARGET PRODUCT (HEREINAFTER JAB2V2) Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 35 As for SW4, it doesn’t matter where it is set at when we want PC UI control and SW1 is set at “Remote” . ② MODE FUNCTION ① USBi SigmaStudio Programming ② Remote APP Control / PC UI Control Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 36 Connect ICP5 to computer with Type-C cable when Please do not connect anything to ICP5 now. holding on SW3. When you see “RUN” indicator blinking, it means ICP5 has entered BootLoader mode. You can release SW3 now. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 37 After the update is done, “RUN” indicator will turn from blinking to ON. There is no need to update firmware next time you use ICP5 with the same target product, except that you use it with a different product. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 38 Audio System Build a desired audio system with the target product. Once connection is done, power up the system. DC 10.8V-24V Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 39 The DSP chip in JAB2v2 is not from analog, so we connect it with ICP5 through PH-4Pos connector. If there is connection error or the firmware in ICP5 doesn’t match the target device, “ERROR” indicator will be ON in red. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 40 PC UI Control We can start PC UI control then. Frequency Volume Output Mode Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 41 That means, once the target device, the kept parameters will be product is disconnected with ICP5, it won’t be affected loaded and function to target device. by the adjustments in PC UI. Copyright © 2021 Sure Electronics Co., Ltd.
  • Page 42 We will working on development of APP right after all the PC UIs been released. How to achieve The estimated date is as follow. APP Control Model Matched PC UI with WONDOM ICP5? APM2 (End of Jul, 2022) JAB2v2 JAB3 (End of Jun, 2022) ICP5...
