- Page 1 How to realize APP control with Sure Electronics’ ICP3? Miumax ICP3 In-Circuit Programmer with Bluetooth BLE for APP Control...

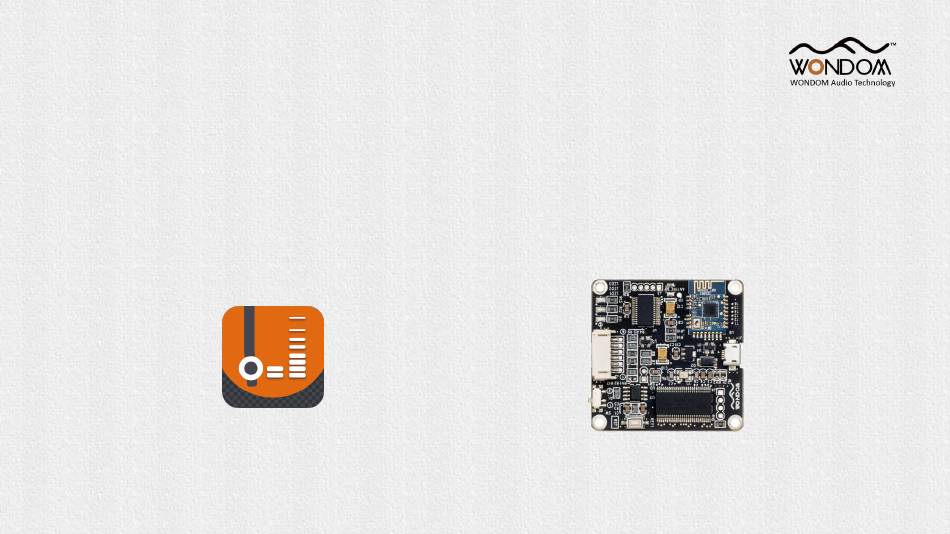

- Page 2 Overview WONDOM ICP3 is an in-circuit programmer inheriting all functions of ICP1. We had implemented firmware upgrade and control data transmission from Bluetooth BLE, this means, with ICP3, customers can adjust the basic parameters like volume, gain, EQ through APP.
- Page 3 Checklist Before starting, please make sure you have the following items on hand. ‘Miumax’ APP WONDOM JAB3/APM2+Extension Kit (APM3) Android WONDOM ICP3 with a 6-pin cable Accessories Speakers Cables Phone …...
- Page 4 Product Introduction Model Description Basic Cables Included ICP1 In-circuit Programmer for ADAU1701 Digital Signal 6Pin cable x 1 ICP3 DB-DP11224 WONDOM In-circuit Programmer with BLE Bluetooth for APP control 6Pin cable x 1 APM2 AA-AP23122 ADAU1701 Audio Digital Signal Processor Kernel Board APM3 AA-AA11428 ADAU1701 Audio Digital Signal Processor Interface Extension Kit...
- Page 5 CONTENTS CONNECT ICP3 AND POWER UP CONTROL SWITCH TROUBLE SHOOTING BUILD AN AUDIO SYSTEM WITH APP CONTROL APM2/JAB3...
-
Page 6: Audio System
AUDIO SYSTEM Sure Electronics provides two solution for DSP, - APM2 + Extension Kit (APM3) + Amplifier - JAB3, an audio amplifier with ADAU1701 integrated ICP3 ICP3 APM2+ Amplifier Speakers JAB3 Speakers Audio Source Audio Source APM3 19VDC Power Supply... - Page 7 CONNECT ICP3 Audio System with APM2 1. Connect ICP3 to the APM2/JAB3 through the programming port with a 6-pin cable. Please disconnect the power supply when operating for safety. Pin to Pin Programming 6-pin cable ICP3 Port of DSP/JAB3 Note: When ICP3 is connected to APM2/JAB3 pin to pin, it will be powered by APM2/JAB3 directly.
- Page 8 CONNECT ICP3 2. Set switch of ICP3 at ‘REMOTE’ before running ‘Miumax’ APP. 3. Connect whole system with power supply, in which condition, the LED3 on ICP3 will be blinking. 4. Make sure the Bluetooth of your device is on and click ‘Miumax’ APP and they will pair automatically within several seconds.
-
Page 9: App Control
APP CONTROL Choose the corresponding items for adjustment VOLUME Play music and choose your device to start CHANNEL GAIN CHANNEL FILTER PHASE DEGREE EQ SET... -
Page 10: Control Switch
CONTROL SWITCH Power-off Memory Function of APP Control Switch to hardware control Power-off memory function is integrated in APP When customers want to switch to hardware control for JAB3, namely even if customers use the control (potentiometers on board) from APP control potentiometers on board for control, when they mode, please do as follows. -
Page 11: Points Of Attention
POINTS OF ATTENTION Connection Please make sure the Bluetooth of your device is on and the SW of ICP3 is set at REMOTE before clicking APP. Adjustment The adjustment through APP control is irreversible. Please pay attention to the limitation of your devices in case of permanent damage. Control Switch When switch is made between software and hardware control, make sure the SW of ICP3 is set at right position. -
Page 12: Troubleshooting
TROUBLE SHOOTING Firstly, check the following items. 1. Switch of ICP3 is set at The connection between ICP3 and 2. Bluetooth of your device is on APP is unsuccessful or the APP If all settings are OK but there is still problem control malfunctions.
