Installation Guide Lighting Fixture
Tracklight
MSP-100S1H2E30AZ12

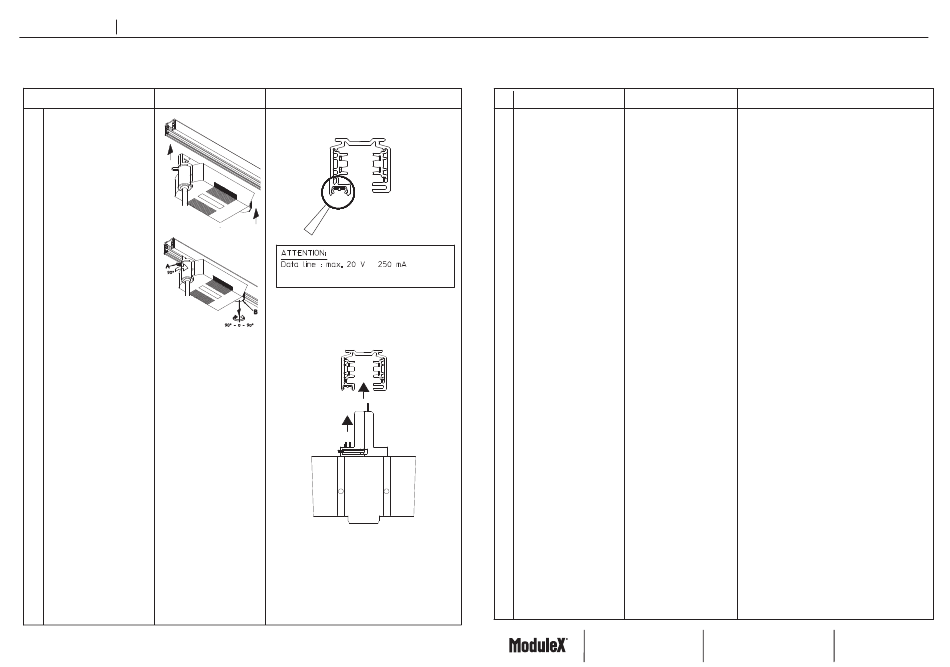

Installation Details Installation Diagram
ATTACHING LUMINAIRE TO TRACK.
1
Turn off power to TRACK.
2
Make sure ridge of adaptor aligns
with groove in track.
3
Turn knob A 90° clockwise to
2
connect to track.
Trun knob B 90° clockwise to
connect to circuit 1. and 90°
anti-clockwise to connecto to
circuit 2.
3
Caution
(Please ensure the data bus is connected from a
Listed class 2 dimmer, max 20V, 250mA)
FOR USE WITH EUTRAC CORP, Series 230 or 233,
TRACK SYSTEM ONLY.
(Please install the track in accordance with
the installation guide of EUTRAC.)
Installation Details Installation Diagram
TOKYO
R
1-20-6 BF1 Ebisuminami,Shibuya-ku,
Tokyo,150-0022,Japan
Tel : 81-3-5768-3681
To install ModuleX safety
Caution
