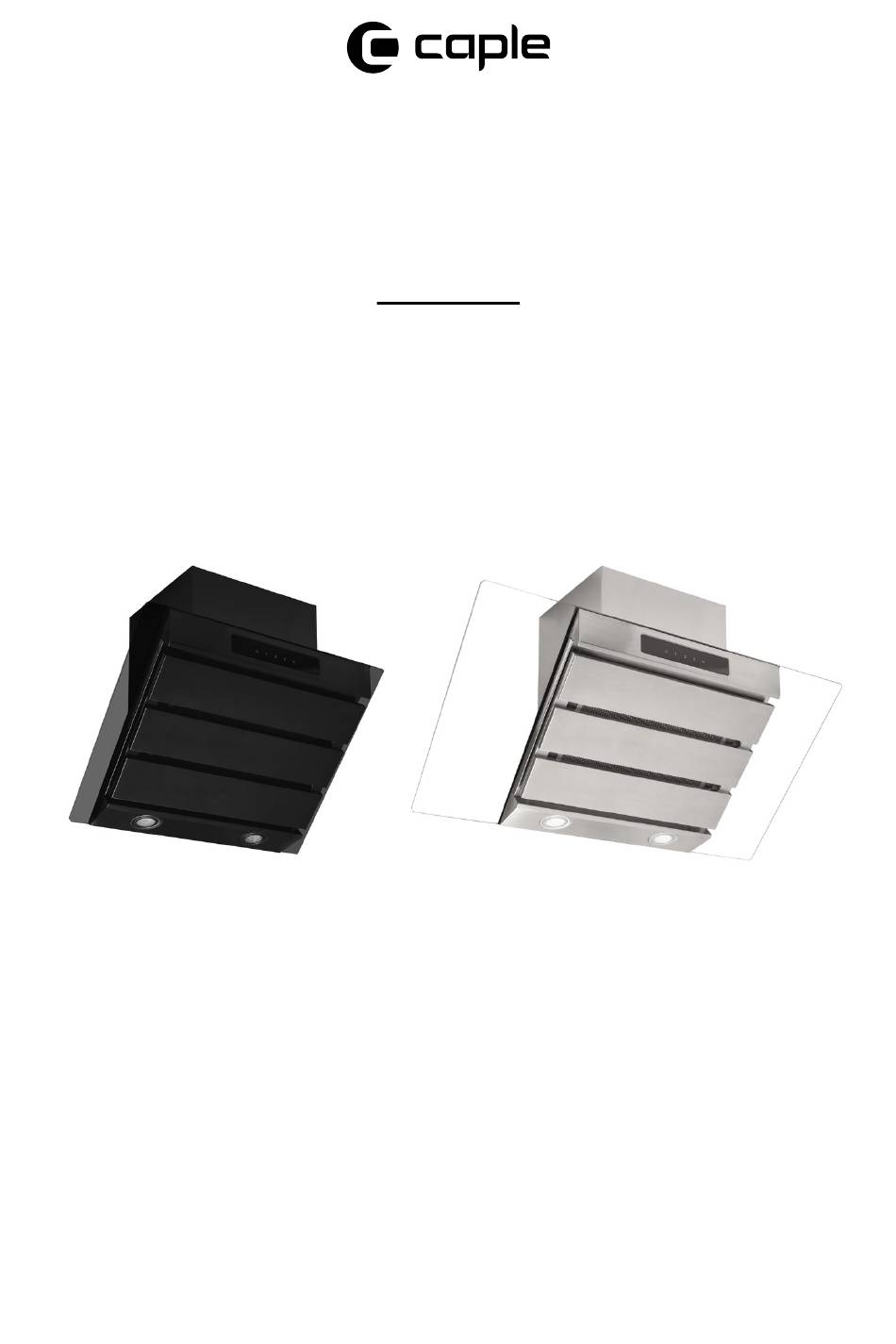

- Page 1 S p i r i t W a l l C h i m n e y H o o d I n s t r u c t i o n M a n u a l SP 61 2 / S P 912 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Introduction Safety instructions Environmental protection Installation Operation Care and maintenance Troubleshooting Product Dimensions Caple Contact Details Instruction manual SP612 / SP912 Please keep this instruction manual for future reference... -
Page 3: Introduction
Thank you for choosing this Caple extractor hood. To ensure that you get the best results from your new extractor, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple extractor should give you years of trouble-free use. - Page 4 This appliance must only be used for the purpose it is intended. Other types of use are not permitted and may prove dangerous. Caple will not be held liable for any damage caused by the incorrect use of the appliance.
-
Page 5: Safety Instructions
I M P O R T A N T N O T E : Caple cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that Caple reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. - Page 6 - Children should be supervised to ensure that they do not play with the appliance. - Cleaning and user maintenance must not be made by children without supervision. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference...
- Page 7 › Bed and breakfast type environments. - To avoid all risk, if the power cable is damaged, it must only be replaced by a Caple appointed engineer. - Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of...
- Page 8 N.I.C.E.I.C who will comply with the I.E.E and local regulations. Electrical information can be found on the rating plate. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference...
-
Page 9: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 10: Installation
be at least 760mm. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference... - Page 11 (4mm x 30mm) Holes on wall Screw Plug Wall Bracket 1. Installation of the cooker hood Level up the cooker hood and hang onto the wall bracket hook. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference...
- Page 12 2 wall plugs. Hang the hood back onto the wall and finally fix the safety screws with 2 Installation screws (ST4x30mm). Place the plastic duct on the cooker hood outlet. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference...
- Page 13 Screw (4mm x 30mm) Use image from original manual here Upper Chimney Bracket Instruction manual SP612 / SP912 Please keep this instruction manual for future reference...
- Page 14 A C C E S S I N G T H E G R E A S E F I LT E R : To access the grease filter, pull the bottom slat from the base upwards and it will lift up as shown below. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference...
- Page 15 We recommend replacing these filters every 6 months. Replacement filters (CAP61CF) can be purchased directly from www.caple.co.uk When using a charcoal filter, the extraction power may be slightly reduced. We recommend replacing these filters every 6 months.
-
Page 16: Operation
When a high amount of steam or odours are produced, use the high speed setting for the most effective extraction. L I G H T B U T TO N Switches the light on and off. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference... -
Page 17: Care And Maintenance
1. Switch the unit off and unplug the appliance. 2. Push out and unclip the old LED light. 3. Replace with the same type and rated bulb/lamp fixing. LED lamp (max.1.5W). Instruction manual SP612 / SP912 Please keep this instruction manual for future reference... -
Page 18: Troubleshooting
Replace the charcoal performance is not good. filter (if in recirculation mode). If the above table has not solved the problem please contact Caple Service by phone on 0117 938 7420 or by email service@caple.co.uk Instruction manual SP612 / SP912... -
Page 19: Product Dimensions
650mm space for electric hobs and 760mm space for gas hobs required from worktop to the mesh filter behind the centre glass panel. From the lowest point of the hood the distance required is 450mm for electric hobs and 550mm for gas hobs. Instruction manual SP612 / SP912 Please keep this instruction manual for future reference... -
Page 20: Caple Contact Details
Caple Service Fourth Way T: 0117 938 1900 Avonmouth E: service@caple.co.uk Bristol www.caple.co.uk BS11 8DW...
