- Page 1 User Manual SyncPad54...
-
Page 2: Table Of Contents
4.4.Registration 4.5.Help and Support 5.Charging without connecting to a host computer 6.Using when connected to a host computer 6.1.Charging 6.2.Data Transfer 7.Manage Ports & Devices using Cambrionix Software 7.1.LiveViewer 7.2.Cambrionix API 7.3.Command Line Instructions (CLI) 8.Certifications SyncPad54 Page 1 of 15... -

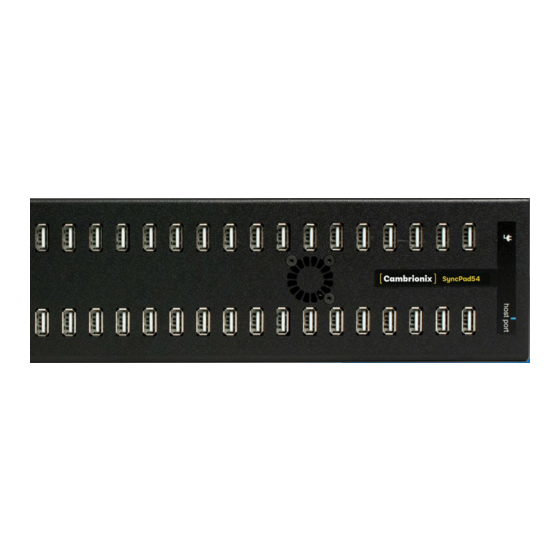

Page 3: Your Syncpad54 At A Glance
Interface (CLI). Cambrionix’s free monitoring and control software can be downloaded from- https://www.cambrionix.com/software For the SyncPad54 a host will need to be connected to hub before initial charging will take place, once the hub is up and running you will not need a host connected unless you power cycle the hub in which case a host will need to be connected for the initial power up. -
Page 4: Product Specifications
2.3.Physical specifications Input Connectors 1 x USB 2.0 Type-B Output Connectors 54 x USB 2.0 Type-A Ambient Operating Temperature range 0-35 °C Relative humidity 5% to 95% non-condensing Dimensions 430 x 86 x 28mm Weight 1.5kg SyncPad54 Page 3 of 15... -
Page 5: Power Supply Specifications
2.4.Power Supply Specifications Input Voltage 100-250Vdc Input Current 2.5A @ 115Vac Input Frequency 50-60Hz Input Connector Output Voltage 12Vdc Output Current Output Power 180W Output Connector 4-pin DIN SyncPad54 Page 4 of 15... -
Page 6: Safety
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor (reversible) injury. Indicates a potentially hazardous situation which, if not avoided, may result in damage to the product and/ or its functions or of a property in its proximity. SyncPad54 Page 5 of 15... -
Page 7: Safety Alert Symbol
Mandatory regulation 3.4.Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant to relevant safety standards, which could result in injury or damage to the product. -
Page 8: Power Supply
Do not short circuit the Power Supply Unit (PSU) supplied with your product Do not disconnect the power cord while the product is being used Do not bend or pull the power cord with excessive force SyncPad54 Page 7 of 15... -
Page 9: Storage And Installation
Do not place the power cord near heat sources Connect the plug to an earthed socket Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range... -
Page 10: Getting Started
If you are using a version of Microsoft Windows prior to Windows 10 you will need to install Cambrionix CDC drivers for enabling the full functionality of the hub. To install the drivers please detach the hub from the PC before executing the downloaded installer. The installer will prompt you for permission to install drivers signed by Cambrionix, please agree to this. -
Page 11: Charging Without Connecting To A Host Computer
For the SyncPad54 a host will need to be connected to hub before initial charging will take place, once the hub is up and running you will not need a host connected unless you power cycle the hub in which case a host will need to be connected for the initial power up. -
Page 12: Using When Connected To A Host Computer
Please note that USB specifications require a minimum 100 mA charge current to be delivered during data transfer. As indicated in above, if the attached device has a BC1.2 compliant CDP port, the device can draw up to 0.5A Max per Port while transferring data. SyncPad54 Page 11 of 15... -
Page 13: Manage Ports & Devices Using Cambrionix Software
Full instructions on LiveViewer are available on our website. 7.2.Cambrionix API Cambrionix API allows you to monitor and control each port in more detail and to integrate these functions into your own workflow processes. The API comprises a daemon that can be downloaded from https://www.cambrionix.com/products/api and installed on the host... -
Page 14: Command Line Instructions (Cli)
Python code can be obtained fromhttps://www.cambrionix.com/products/api to help you integrate many of these functions into your process workflow alongside the full User Guide. 7.3.Command Line Instructions (CLI) Command Line Instructions can also be used to control and monitor the functions of the hub and attached devices over a VCP (Virtual COM Port). - Page 15 <|> is a list of profile IDs Blank to use all profiles <i> is a single profile ID Optional parameters are shown in [ ] Com- Parameters pulsory in < > Tab key Re-runs previous command Cursor up recalls last command SyncPad54 Page 14 of 15...
-
Page 16: Certifications
8.Certifications CB Certificate CE Tested and marked FCC Part 15 Tested and marked Housed within a UL94-VO specification fire enclosure RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 SyncPad54 Page 15 of 15... - Page 17 Cambrionix Ltd The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom T +44 (0) 1223 755 520 E enquiries@cambrionix.com W www.cambrionix.com...
