Whispbar K631W Fitting Instructions Manual

Basic carrier
Hide thumbs Also See for K631W:

Advertisement

Quick Links

Download this manual
EN

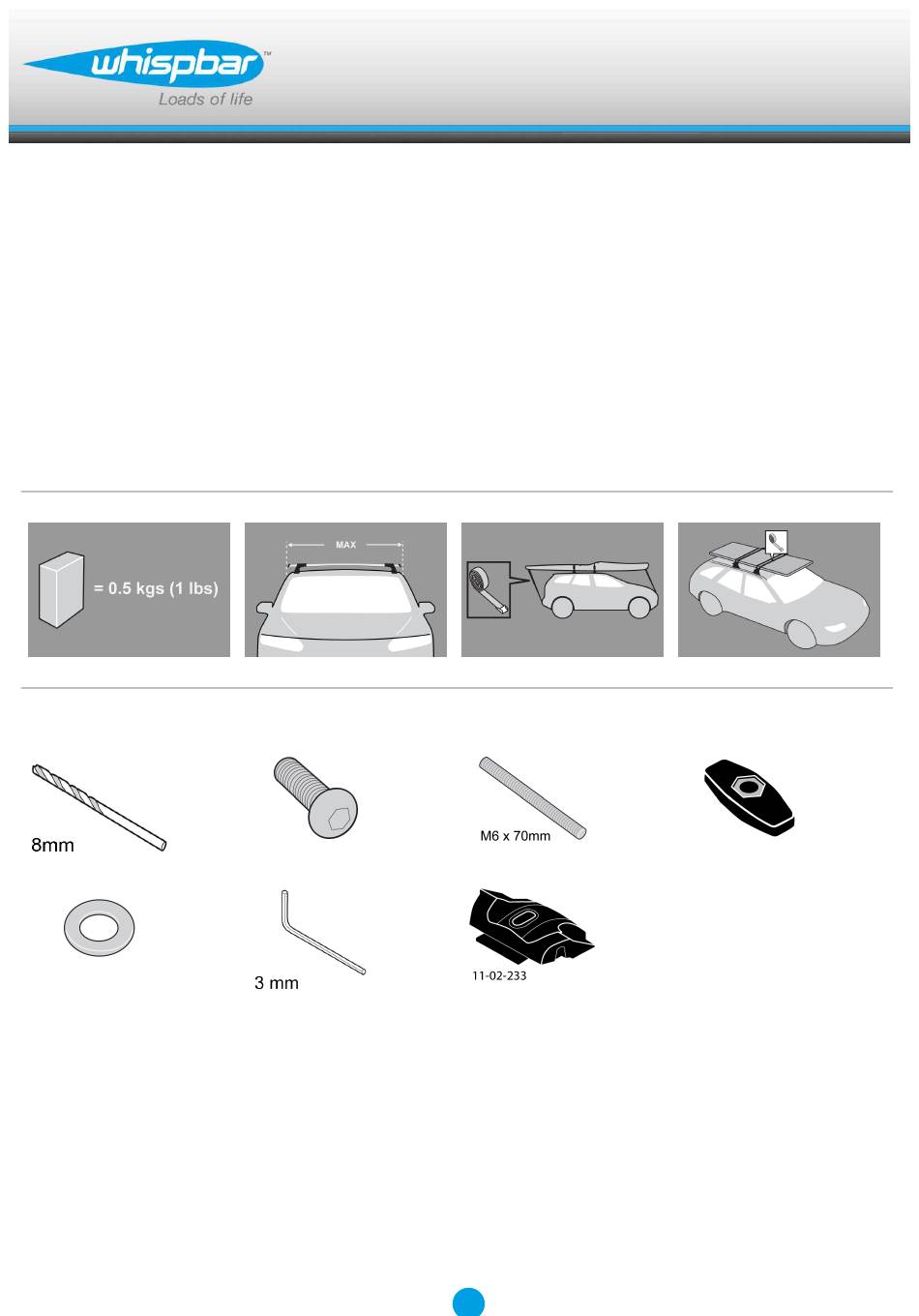

Fitting Instructions for Basic Carrier
Revision No: 3B
x 1
x 4
x 4
x 1
1
Fitting Kit
x 4
x 4
K631W
x 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the K631W and is the answer not in the manual?

Questions and answers

Related Manuals for Whispbar K631W

Summary of Contents for Whispbar K631W

  • Page 1 K631W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3B...
  • Page 2 Fitting Kit K631W MAX kgs (lbs) Land Rover Freelander 2, 5dr SUV 07-12 75 kgs (165 lbs) 75 kgs (165 lbs) Freelander 2, 5dr SUV 07-15 75 kgs (165 lbs) 75 kgs (165 lbs) Freelander 2, 5dr SUV 12-14 75 kgs (165 lbs)
  • Page 3 Fitting Kit K631W Freelander 2, 5dr SUV 07-12 (EU) -250mm 500mm 925mm 905mm -9 -13/16ths" 19 11/16ths" 36 7/16ths" 35 5/8ths" Freelander 2, 5dr SUV 07-15 (CN) -250mm 500mm 925mm 905mm -9 -13/16ths" 19 11/16ths" 36 7/16ths" 35 5/8ths" Freelander 2, 5dr SUV 12-14 (EU)

  • Page 4: First Time Installation

    Fitting Kit K631W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. These instructions show type A crossbar fitted. They also apply to type B, C and D.
  • Page 5 Fitting Kit K631W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points...
  • Page 6 Fitting Kit K631W Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs.
  • Page 7 Fitting Kit K631W Pull ditch moulding back towards you. Remove centre section. Remove as shown. Locate vehicle's fixed points.
  • Page 8 Fitting Kit K631W Remove plastic bungs as shown. Rotate as shown. Mark reference point with a pen onto removed section of ditch mould. Mark reference point with a pen onto removed section of ditch mould.
  • Page 9 Fitting Kit K631W Mark as shown. Use drill bit supplied, to drill holes in marked positions. Re-install ditch mould in roof channel. Align holes.
  • Page 10 Fitting Kit K631W Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions. Place crossbars on pads ensuring the pads fit into the holes underneath the foot and the grubscrew passes through the hole in the foot.
  • Page 11 Fitting Kit K631W Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
  • Page 12 Fitting Kit K631W Removal of crossbars Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Using the Hex Key and the capscrews, secure the ditch mould to the vehicle. CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.

  • Page 13: Maintenance

    Fitting Kit K631W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
  • Page 14 Fitting Kit K631W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.

  • Page 15: Warranty And Disclaimer

    Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
  • Page 16 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
