Summary of Contents for Whispbar K614W

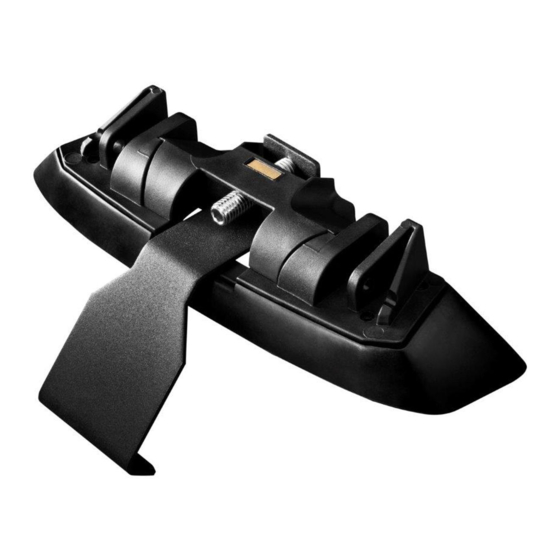

- Page 1 K614W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5C...
- Page 2 Fitting Kit K614W MAX kgs (lbs) Ford Focus , 5dr Hatch 11-+ 60 kgs (132 lbs) 60 kgs (132 lbs) Focus , 5dr Hatch 11-+ 60 kgs (132 lbs) 60 kgs (132 lbs) Focus , 5dr Hatch 11-+ 60 kgs (132 lbs)
-
Page 3: First Time Installation

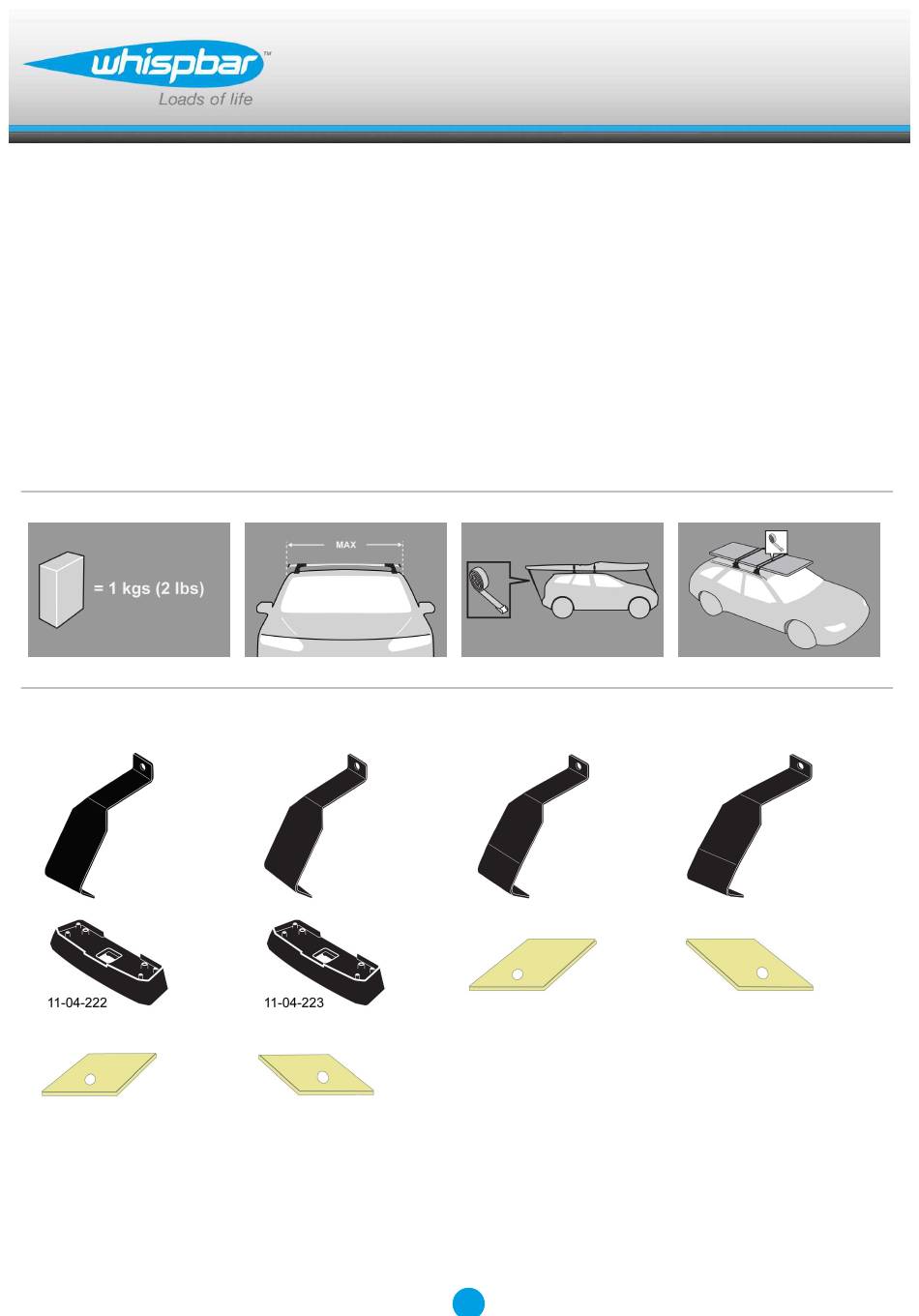

Fitting Kit K614W CAUTION: Only suitable for models with pin hole under door frame. First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. - Page 4 Fitting Kit K614W NOTE: Clamp images in these instructions may not be representative of the clamps in this kit Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns.
- Page 5 Fitting Kit K614W Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Remove locking screw. Apply protective strip as shown. Trim if required.
- Page 6 Fitting Kit K614W It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 871A B = 872A C = 873A D = 874A Attach clamp to each leg.
- Page 7 Fitting Kit K614W Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 8 Fitting Kit K614W Make sure the pad fits into the holes underneath the foot. Fitment Clamps directly to edge of roof under the doors, pin locates in hole on vehicle Please check the rear of this manual for information relating specifically to your vehicle.
- Page 9 Fitting Kit K614W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K614W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K614W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K614W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K614W Focus, 5dr Hatch 11-+ (EU) -220mm 530mm 915mm 885mm -8 -11/16ths" 20 7/8ths" 36" 34 13/16ths" Focus, 5dr Hatch 11-+ (AU) -220mm 530mm 915mm 885mm -8 -11/16ths" 20 7/8ths" 36" 34 13/16ths" Focus, 5dr Hatch 11-+ (NZ)
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
