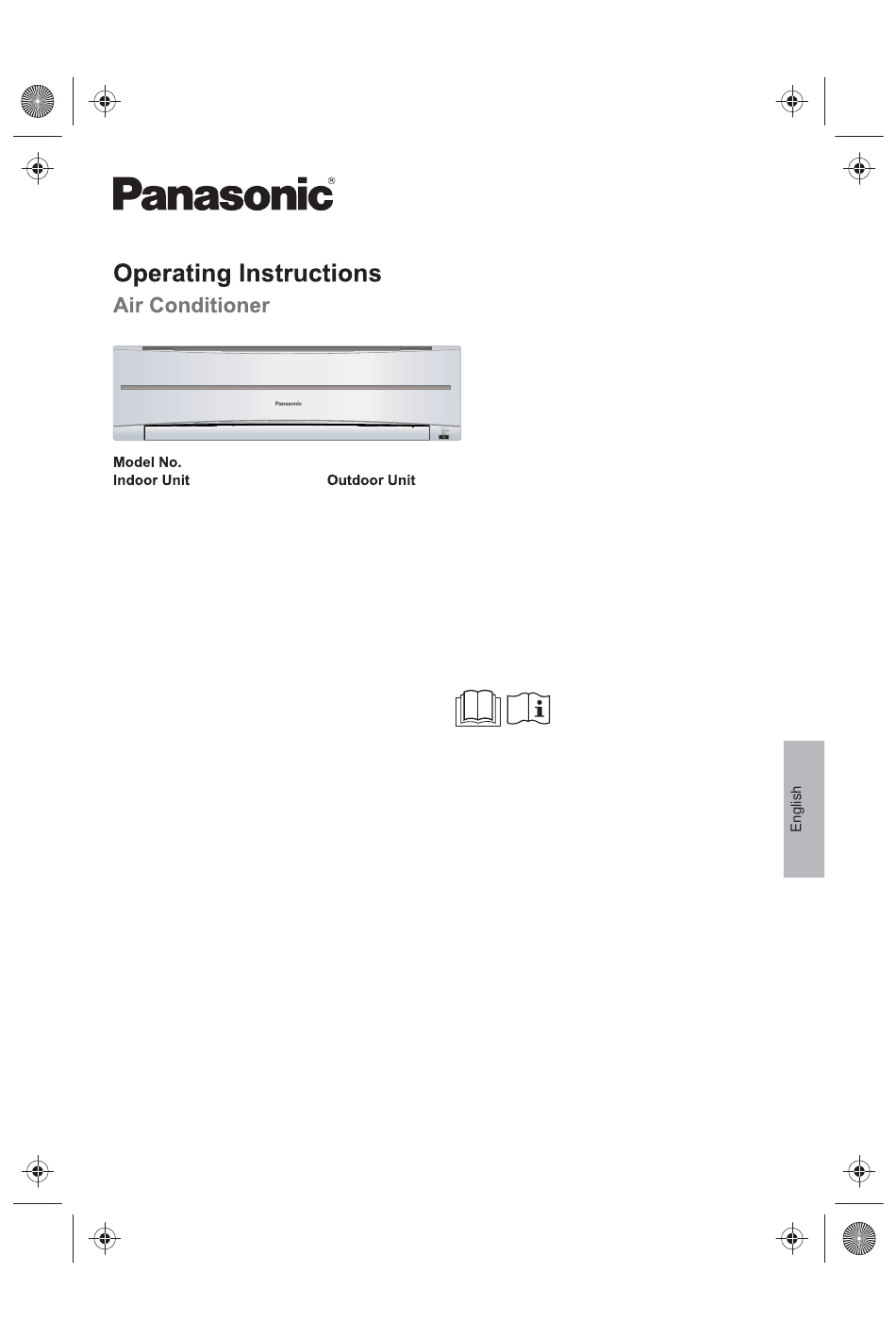

Operating Instructions
Air Conditioner
Thank you for purchasing Panasonic Air Conditioner.
Installation instructions attached.
Before operating the unit, please read these operating
instructions thoroughly and keep them for future
reference.
ACXF55-19150-AD
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panasonic CS-QN12UKY Series
Summary of Contents for Panasonic CS-QN12UKY Series
- Page 1 POWERFUL CS-QN12UKY series CU-QN12UKY series CS-QN18UKY series CU-QN18UKY series Operating Instructions Air Conditioner Thank you for purchasing Panasonic Air Conditioner. Installation instructions attached. Before operating the unit, please read these operating instructions thoroughly and keep them for future reference. ACXF55-19150-AD...
- Page 2 ACXF55-1915_OL.ai 2 6/1/2018 1:19:56 PM ACXF55-1915_OL.ai 2 6/1/2018 1:19:56 PM To confirm Press SET or CLOCK again • Operating the unit at 25 °C or higher degrees may save energy. • Better comfort condition at 25 °C or higher degrees.
- Page 3 ACXF55-1915_OL.ai 3 6/1/2018 1:19:57 PM ACXF55-1915_OL.ai 3 6/1/2018 1:19:57 PM Safety precautions ......4-9 How to use........10-11 Cleaning instructions ......Troubleshooting ........Information..........14...
-
Page 4: Indoor Unit And Outdoor Unit
ACXF55-1915_OL.ai 4 6/1/2018 1:19:57 PM ACXF55-1915_OL.ai 4 6/1/2018 1:19:57 PM Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: WARNING Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: Indoor unit and outdoor unit This appliance is not intended for use by... -
Page 5: Remote Control
ACXF55-1915_OL.ai 5 6/1/2018 1:19:57 PM ACXF55-1915_OL.ai 5 6/1/2018 1:19:57 PM Remote control Precaution for using R32 refrigerant The basic installation work procedures are the same as Do not allow infants and small children to play conventional refrigerant (R410A, R22) models. with the remote control to prevent them from accidentally swallowing the batteries. - Page 6 ACXF55-1915_OL.ai 6 6/1/2018 1:19:57 PM ACXF55-1915_OL.ai 6 6/1/2018 1:19:57 PM Safety precautions Prevent water leakage by ensuring drainage 2. Servicing 2-1. Service personnel pipe is: • Any qualifi ed person who is involved with - Connected properly, working on or breaking into a refrigerant - Kept clear of gutters and containers, or circuit should hold a current valid certifi cate - Not immersed in water...
- Page 7 ACXF55-1915_OL.ai 7 6/1/2018 1:19:57 PM ACXF55-1915_OL.ai 7 6/1/2018 1:19:57 PM 2-4. Presence of fi re extinguisher 2-8. Checks to electrical devices • If any hot work is to be conducted on the • Repair and maintenance to electrical refrigeration equipment or any associated components shall include initial safety parts, appropriate fi re extinguishing checks and component inspection...
- Page 8 ACXF55-1915_OL.ai 8 6/1/2018 1:19:57 PM ACXF55-1915_OL.ai 8 6/1/2018 1:19:57 PM Safety precautions 4. Repair to intrinsically safe components 8. Removal and evacuation • Do not apply any permanent inductive or • When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional capacitance loads to the circuit without procedures shall be used.
- Page 9 ACXF55-1915_OL.ai 9 6/1/2018 1:19:57 PM ACXF55-1915_OL.ai 9 6/1/2018 1:19:57 PM 10. Decommissioning 12. Recovery • Before carrying out this procedure, it is • When removing refrigerant from a system, essential that the technician is completely either for servicing or decommissioning, familiar with the equipment and all its details.
- Page 10 ACXF55-1915_OL.ai 10 6/1/2018 1:19:58 PM ACXF55-1915_OL.ai 10 6/1/2018 1:19:58 PM POWER POWER SLEEP SLEEP POWERFUL POWERFUL Standard setting Room temperature temperature 23 °C & above 25 °C (Orange) Below 23 °C 22 °C FAN - To operate Air-Con in “Fan Only” mode Unit operates without running compressor with IDU fan running as per remote setting fan speed and air flow direction.
- Page 11 ACXF55-1915_OL.ai 11 6/1/2018 1:19:58 PM ACXF55-1915_OL.ai 11 6/1/2018 1:19:58 PM If AUTO is set, the louver swings up/down automatically. POWERFUL • This operation is to achieve faster cooling. • To cancel ON or OFF timer, press then press • If timer is cancelled manually or due to power failure, you can restore the timer again by pressing then press...
- Page 12 ACXF55-1915_OL.ai 12 6/1/2018 1:19:58 PM ACXF55-1915_OL.ai 12 6/1/2018 1:19:58 PM Please remove the PM2.5 Filter before wash/rinse the filter with water.
- Page 13 ACXF55-1915_OL.ai 13 6/1/2018 1:20:00 PM ACXF55-1915_OL.ai 13 6/1/2018 1:20:00 PM The unit stops and some alpha-numeric codes appear on IDU display.
- Page 14 Panasonic service center when disposing of this product. Customer care number ( Toll free ) : 1800 103 1333 ,1800 108 1333 Please see the Panasonic website for further information on collection centers, etc. or call the customer care toll-free number http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html Do’s &...
- Page 15 ACXF55-1915_OL.ai 15 6/1/2018 1:20:00 PM ACXF55-1915_OL.ai 15 6/1/2018 1:20:00 PM...
- Page 16 This symbol shows that a service This symbol shows that there personnel should be handling this is information included in the equipment with reference to the Operation Instructions and/or Installation Instructions. Installation Instructions. Website: http://www.panasonic.com © Panasonic Corporation 2018 ACXF55-19150-AD FT0218-0...
