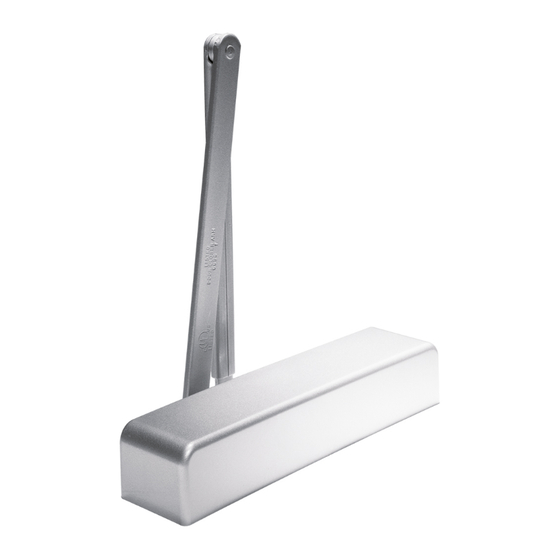

- Page 1 8900 TDE/TDEH Track double egress pull side mount and backplate (BP89) Installation instructions 08279351 – 09-2019 | EN |...
- Page 2 8900 TDE/TDEH Installation Instructions Table of Contents Table of contents 1 Technical specifications Overview Tools recommended Handing the door Instructions - track mount Installing backplate and surface closer Assemble and secure track, arm and slide shoe 4 Securing main arm to closer...
- Page 3 8900 TDE/TDEH Installation Instructions Technical specifications 1 Technical specifications Overview Caution: sex nuts are required for attachment Know the swing of the door which is being of components to unreinforced doors and to installed prior to installation. wood or plastic faced composite type fire doors, Verify closer spring size prior to installation.
- Page 4 8900 TDE/TDEH Installation Instructions Surface closer and backplate Track Instructions - track mount 2.1 Installing backplate and surface closer Fig.2 BP89 Pinion 2.1.1 Secure backplate. Arrow points upward. 2.1.2 Secure closer body. NOTE: Ensure pinion is oriented towards hinge.
- Page 5 8900 TDE/TDEH Installation Instructions Main arm 2.3 Securing main arm to closer Fig.4 2.3.1 Preload arm by placing wrench on bottom pinion. View from top of door 2.3.2 Rotate wrench 45° AWAY FROM hinge edge of door. View from top of door 45°...
- Page 6 8900 TDE/TDEH Installation Instructions Adjust closing speeds Adjust hold open Adjustments Confirm closer spring size prior to making any Maximum opening angle is 125º. closing speed adjustments. Door should close in 3 to 6 seconds from 90º. Do not back valve heads out beyond closer casting.
- Page 7 8900 TDE/TDEH Installation Instructions Adjust spring force Secure covers 3.3 Adjust spring force Fig.7 8916 - supplied with a size 4 8956 - supplied with a size 6 Increase 8916 ONLY - Barrier free openings: Take an opening Decrease force reading from the pull on the door.
- Page 8 DORMA USA, Inc. T: 800-523-8483 www.dormakaba.us...
