Alinco DJ-CRX5 Instruction Manual

Vhf/uhf fm transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

DJ-CRX5
A
B
C
MIC
1
2
TONE
4
5
SCAN
7
8
9
SET
#
0
DTMF

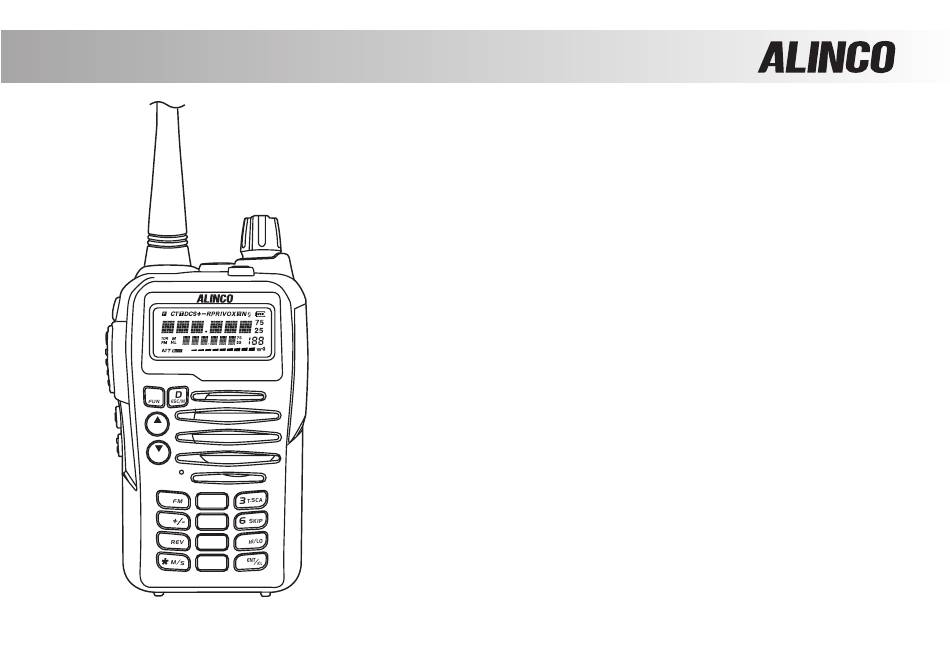

VHF/UHF FM Transceiver
DJ-CRX5
Instruction Manual
Thank you for purchasing your new Alinco transceiver. Please read this manual
carefully before using the product to ensure full performance, and keep this
manual for future reference as it contains information on after-sales service.
In case addendum or errata sheets are included with this product, please read
those materials and keep them together with this instruction manual for future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DJ-CRX5 and is the answer not in the manual?

Questions and answers

Related Manuals for Alinco DJ-CRX5

Summary of Contents for Alinco DJ-CRX5

  • Page 1 DJ-CRX5 Instruction Manual DJ-CRX5 Thank you for purchasing your new Alinco transceiver. Please read this manual carefully before using the product to ensure full performance, and keep this TONE manual for future reference as it contains information on after-sales service.
  • Page 2 ALINCO, INC. Yodoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:export@alinco.co.jp Copyright Alinco, lnc. PS0864 / FNEI-NL Printed in China...
  • Page 3 (which is higher than10 kA.). Note also that no car provides adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with using its hand-held radios outdoor or inside the car during lightning.
  • Page 4 Covering ranges ■ You may expect a range of approx.3km/2 miles or more at high-power when located on a flat, noise-free place like on a beach. However, it may vary drastically depending on how to wear and carry the radios, surrounding locations/conditions and static noise levels (below or near power transmission lines), etc.
  • Page 5 Features ■ Output power selectable 5W/2W/1W ■ 200 PC-programmable channels ■ Li-Ion battery pack and stand-charger as standard accessories ■ Alphanumeric name tags ■ FM broadcast 76-108MHz receiver built-in ■ Selectable Battery-save parameters ■ Busy Channel Lockout ■ CTCSS/DCS Encode/Decode, DTMF ■...
  • Page 6 WARNING To prevent any hazard during operation of Alinco’s radio product, in this manual and on the product you may find symbols shown below. Please read and understand the meanings of these symbols before starting to use the product. This symbol is intended to alert the user to an immediate danger that may Danger cause loss of life and property if the user disregards the warning.
  • Page 7 Alert Environment and condition of use Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you travel. It is recommended that you check local traffic regulations regarding the use of a radio equipment while driving.
  • Page 8 The manufacturer declines any responsibilities against loss of life and property due to a failure of this product when used with or as a part of a device made by third parties. Use of third party accessory may result in damage to this product. It will void our warranty for repair. Handling this product Be sure to reduce the audio output level to minimum before using an earphone or a headset.
  • Page 9 Securely plug the adapter into the wall outlet. Insecure installation may result in short-circuit, electronic shock and/or fire. Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or short-circuiting may result in fire, electric shock and/or damage to the product. In case of emergency In case of the following situation(s), please turn off the product, switch off the source of power, then remove or unplug the power-cord.
  • Page 10 Caution Environment and condition of use Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference. Do not install in a humid, dusty or insufficiently ventilated place. It may result in electric shock, fire and/or malfunction.
  • Page 11 The contents of this manual may be updated without any notice or obligation.Alinco cannot be liable for pictorial or typographical inaccuracies. Changes or modifications not expressly approved by the party responsible for compliance could...

  • Page 12: Table Of Contents

    TABLE OF CONTENTS STANDARD ACCESSORIES/ADDITIONAL ACCESSORIES ................01 Standard Accessories ..................................01 BATTERY INFORMATION ................................. 02 Charging Operation ....................................02 Battery Charger Type ................................... 02 Notice for Charging Battery ................................02 How to Charge ......................................04 How to Store the Battery ..................................
  • Page 13 TABLE OF CONTENTS Receiving ........................................13 Transmitting ......................................13 Emergency Alarm ....................................14 Side Key [PF1]/[PF2] function instruction ..........................14 MONI Key Function ....................................15 Edit channel ......................................15 Delete channel ......................................15 VFO Frequency scanning limit ............................... 16 Turn On/Off FM Radio ..................................
  • Page 14 TABLE OF CONTENTS Add or Cancel DTMF Sgnaling ...............................28 Signaling Combination ..................................29 Frequency Step ......................................29 Wide/ Narrow FM Mode ..................................30 Frequency Reverse ....................................30 Talk Around .......................................31 Offset Frequency ....................................31 Editing Channel name ..................................32 Busy Channel Lockout ..................................32 Prohibits transmitting ...................................33 Band Limit .........................................33 Sub Band Display...
  • Page 15 TABLE OF CONTENTS LCD Backlight Color ..................................... 40 Self ID inquiry ......................................41 Tone Burst Frequency ..................................41 Battery Save ......................................42 FM radio ........................................43 PF1 and PF2 Key Function ................................43 Display Mode Setup ..................................... 44 Resume Factory Default ..................................

  • Page 16: Standard Accessories/Additional Accessories

    STANDARD ACCESSORIES/ADDITIONAL ACCESSORIES Standard Accessories Antenna Li-ion Battery Battery Charger AC Adaptor Belt Clip Instruction Hand Strap Manual NOTE: Accessories may differ depending on the version you have purchased. Please contact your local dealer for details of standard accessories and the warranty-policy before purchase.

  • Page 17: Battery Information

    Battery Charger Type Please use our ALINCO's designated charger, other models may cause explosion. After installing the battery, when the radio displays low battery, please charge the battery.
  • Page 18 BATTERY INFORMATION Caution • Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an incorrect type or reverse polarity. Use always the recommended types of batteries in this manual only. • The battery pack isn't fully charged when shipped. It must be charged before use. •...

  • Page 19: How To Charge

    BATTERY INFORMATION How to Charge 1.Plug the AC adaptor into the AC outlet(100V-240V), then plug the cable of AC adaptor into the DC jack, the indicator lights orange for 1 second and goes out---waits to charge. 2.Slide the battery or transceiver with battery into the charger; make sure the battery terminals are in contact with the charging terminals.

  • Page 20: How To Store The Battery

    BATTERY INFORMATION ▲ The charger is to charge the battery pack only. It is not an AC adapter to operate the radio. Never attempt to transmit the radio with using the charger as it will cause the damage to the charger and a repair/replace may become necessary.

  • Page 21: Preparation

    PREPARATION Installing / Removing the Battery ■ Installing the Battery Align the catches on the unit with the grooves on the battery pack, slide the pack forward and close the latch until it clicks. ■ Removing the Battery Pack Push the latch in the direction of the arrow, and pull out the battery pack.

  • Page 22: Installing/Removing The Belt Clip

    PREPARATION Installing / Removing the Belt Clip ■ Installing the Belt Clip: Place the belt clip to the grooves on the back of the transceiver, and then fix it by provided screws. ■ Removing the Belt Clip: Check the tightness of the fixing screws from time to time. (screws siz 2.5 x 5mm).

  • Page 23: Getting Acquainted

    GETTING ACQUAINTED LCD Display Frequency Reverse VOX Function Offset Direction Scan Skip DTMF Narrow band CTCSS Battery Capacity FUNC Icon Sub band receiving signal/Function next menu Function Menu No. Main Channel No. FM radio TX Power Busy Channel Lock NOTE: Battery capacity indicator(full) No power, replace battery pack or charge battery Battery capacity remnant...
  • Page 24 GETTING ACQUAINTED DJ-CRX5 TONE SCAN DTMF NOTE: Please do not close the microphone hole.
  • Page 25 GETTING ACQUAINTED Antenna Lamp Power / Volume Switch Rotate it clockwise to turn on transceiver, rotate it anticlockwise until clicks to turn off the transceiver. When transceiver is power on, rotate it clockwise to increase volume, anticlockwise to reduce. TX/RX indicator, Main RX is Green, Sub RX is Blue, TX is Red LCD display Displays current frequency/channel and operations Speaker...

  • Page 26: Basic Operations

    BASIC OPERATIONS Turn the Radio On & OFF Under power-off state, please turn [POWER]/[VOLUME] clockwise to turn on the transceiver. The transceiver will announces prompt tone and displays the current channel on screen. Under power-on state, please turn [POWER]/[VOLUME] anticlockwise till hearing "Click"...

  • Page 27: Switch Between Channel Mode And Vfo Mode

    BASIC OPERATIONS Switch between Channel mode and VFO mode Under standby state, press key to set main band as Channel mode or frequency mode(VFO). Channel Adjusting When transceiver in Channel mode or FM radio channel mode, rotate to adjust channel. Press to enter the downward channel, Press to enter the upward channel.

  • Page 28: Fm Channel Searching

    BASIC OPERATIONS 2. Enter the desired frequency by keypad. In VFO or FM VFO mode, you can directly input frequency by keypad. Example: To enter 435.0125, press [4][3][5][0][1][2] then 5 appears and sets automatically. To enter 435.100, press [4][3][5][1][0][0]. By pressing the last [0], a dot appears after the MHz unit and the frequency is set.

  • Page 29: Emergency Alarm

    BASIC OPERATIONS ensure it is not busy, press [PTT] key and talk to speaker. Please keep the distance between mouth and speaker to be 2.5-5CM, speak in normal tone to get the best acoustic fidelity. NOTE: When press and hold PTT key, transceiver is transmitting if the red LED light is on, release [PTT] key to receive calls.

  • Page 30: Moni Key Function

    BASIC OPERATIONS MONI Key Function Following functions may be assigned to the MONI key. Squelch off: Press [MONI] key, you can hear background noise. Press [MONI] again, squelch is mute. Monitor: Press [MONI] key, you can hear background noise. Release [MONI], squelch is mute. Turn the power on while holding the MONI key to enter to the set mode.

  • Page 31: Vfo Frequency Scanning Limit

    BASIC OPERATIONS VFO frequency scanning limit Setup the frequency of L1 channel, U1 channel, L2 channel and U2 channel will realize VFO frequency scanning border limited. L1 and U1 must be in same frequency band. L2 and U2 in same frequency band, When VFO frequency between L1 and U1 or L2 and U2, radio will scan between them.

  • Page 32: Ctcss/Dcs Scan

    BASIC OPERATIONS CTCSS/DCS Scan While in the CTCSS or DCS mode, Press key, the top left corner of LCD displays " " icon, press key to enter into CTCSS/DCS scan. Under this state, press change scan direction. When scan the matching CTCSS/DCS signaling, it will stay 5seconds and then go on scanning.

  • Page 33: Frequency/Channel Scan

    BASIC OPERATIONS Frequency/Channel Scan Under corresponding mode, press key, the top left corner of LCD displays " " icon, then press key to SCAN start frequency scan or channel scan. 1. Frequency Scan Under VFO mode, frequency scan is available. This function is used for monitoring signal of various communication frequency by transceiver ‘step’...

  • Page 34: Frequency Reverse

    BASIC OPERATIONS Frequency Reverse Under standby state, press key, the top left corner of LCD displays " " icon, then press key to set the current channel as frequency reverse, repeat above operation to turn off frequency reverse. 1. When LCD displays "R" icon, it means current channel open the frequency reverse function, the TX frequency and RX frequency is interchanged, if CTCSS/DCS signaling is set, it will also interchange.

  • Page 35: Keypad Lock

    BASIC OPERATIONS 3. When current group displays "EMPTY", press key, the top left corner of LCD displays " " icon, press and hold key until a beep sounds, and transceiver DTMF enters into DTMF edit state, LCD displays "___________", now you can enter desired DTMF data by keypad.

  • Page 36: Function Menu Setup

    FUNCTION MENU SETUP Menu 1-13 of this transceiver are channel operations. Channel operations temporarily changed the functions of current channel. When power off or channel has been changed, the relevant setup will be erased. Only under VFO mode, the channel operations will be saved until next change. Menu 14-32 is background operation, it is valid for all channels, the relevant setup will be saved until next change.
  • Page 37 FUNCTION MENU SETUP No CTCSS/DCS Decode CTCSS/DCS 51 groups fixed CTCSS decode+1 group self- R-CDC 62.5Hz-254.1Hz+Self defined Decode defined CTCSS decode 000N-777I 1024 groups DCS decode No CTCSS/DCS encode/decode CTCSS/DCS 51 groups fixed CTCSS encode/decode + 1 group RT-CDC Encode/Decode 62.5Hz-254.1Hz+Self defined self-defined CTCSS encode/decode Synchronous...
  • Page 38 FUNCTION MENU SETUP When current channel received matching RF Squelch mode signals, or matching optional signaling, or matching SIGNAL CT/TO setup CTCSS/DCS signaling, transceiver can hear the talking from the other party. Frequency step STEP 2.5K-50K 9 options in total size setup Wide / Narrow WIDE/NARROW...
  • Page 39 FUNCTION MENU SETUP TX function is enabled in current channel TX OFF TX function is disabled in current channel BAND Band Limit ON/OFF Turn on/off band limit function FREQ Display sub band frequency or channel VOLT Display current battery voltage Sub band display DSPSUB setup...
  • Page 40 FUNCTION MENU SETUP When scanning matched signal, transceiver will 5ST-15ST stop scanning for 5-15seconds then resume. Scan Dwell Time SCAN When scanning matched signal, transceiver will stop Setup scanning, 2seconds after signal disappeared, then resume. When finished function setting or enter into FUNCT function menu, icon disappeared.
  • Page 41 FUNCTION MENU SETUP VOLT Displays current battery capacity. CALL Call function. Self define PF1/ ALARM Emergency alarm function. PF2 key function LAMP Lamp No function.

  • Page 42: Ctcss/Dcs Encode Setup

    FUNCTION MENU SETUP CTCSS/DCS Encode Setup After pressing key, the top left corner of LCD displays " " icon then press key. Press key to choose menu 01 and display "T-CDC". Press enter into next menu, LCD displays " " icon, press select desired setting.

  • Page 43: Ctcss/Dcs Encode / Decode Synchronous Setup

    FUNCTION MENU SETUP NOTE: You may set the encoding and decoding tones separately. CTCSS/DCS Encode / Decode Synchronous Setup This function is for adjusting CTCSS/DCS encode/decode synchronous. After pressing key, the top left corner of LCD displays " " icon, then press key.

  • Page 44: Signaling Combination

    FUNCTION MENU SETUP Signaling Combination You may combine the signaling functions of different system. After pressing key, the top left corner of LCD displays " " icon,then press key. Press key to choose menu 05 and display "SIGNAL". Press key enter into next menu, LCD displays " "...

  • Page 45: Wide/ Narrow Fm Mode

    FUNCTION MENU SETUP Press key or key to confirm and exit. Available steps are 2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K and 50KHz. This parameter is not available when the radio is in the Channel mode. Wide/ Narrow FM Mode After pressing key, the top left corner of LCD displays "...

  • Page 46: Talk Around

    FUNCTION MENU SETUP Press key or key to confirm and exit. This function is not available when Talk Around function is activated. Talk Around After pressing key, the top left corner of LCD displays " " icon, then press key. Press key to choose menu 09 and display "TAL KAR".

  • Page 47: Editing Channel Name

    FUNCTION MENU SETUP Editing Channel name After pressing key, the top left corner of LCD displays " " icon, then press key. Press key to choose menu 11 and display "NAME". Press enter into next menu, LCD displays " " icon, press to choose desired character, press key to confirm current character and move shift to next...

  • Page 48: Prohibits Transmitting

    FUNCTION MENU SETUP OFF: PTT operation is always possible without busy channel lockout. Press key or key to confirm and exit. Prohibits transmitting After pressing key, the top left corner of LCD displays" " icon, then press key. Press key to choose menu 13 and display "TX". Press key enter into next menu, LCD displays "...

  • Page 49: Sub Band Display

    FUNCTION MENU SETUP Sub Band Display After pressing key, the top left corner of LCD displays " " icon, then press key. Press key to choose menu 15 and display "DSP SUB". Press key enter into next menu, LCD displays " "...

  • Page 50: Time-Out-Timer (Tot)

    FUNCTION MENU SETUP Time-Out-Timer (TOT) The purpose of Time-out-Timer is to restrict transceiver for continuous long-term transmission. When the continuous transmission time is beyond the preset time, transceiver is forced to stop transmitting and make a beep sound. After pressing key, the top left corner of LCD displays "...

  • Page 51: Voice Operated Transmission (Vox) Delay Time

    FUNCTION MENU SETUP 1 is most sensitive, 10 is less sensitive that requires more voice level to activate VOX. Press key or key to confirm and exit. NOTE: VOX is not usable in noisy areas as it may start transmitting by the back noise. Voice Operated Transmission (VOX) Delay Time If transceiver returns to receive mode instantly after VOX calling, it may cause calling voice missing.

  • Page 52: Dtmf Transmitting Time

    FUNCTION MENU SETUP 30MIN: Automatic Power-Off after 30 minutes. 1HOUR: Automatic Power-Off after one hour. 2HOUR: Automatic Power-Off after two hours. Press key or key to confirm and exit. DTMF Transmitting Time After pressing key, the top left corner of LCD displays " "...

  • Page 53: Scan Dwell Time

    FUNCTION MENU SETUP After pressing key, the top left corner of LCD displays " " icon, then press key. Press key to choose menu 22 and display "SQL". Press key enter into next menu, LCD displays " " icon, press select desired setting.

  • Page 54: Function Icon Stay Time

    FUNCTION MENU SETUP Function Icon Stay Time After pressing key, the top left corner of LCD displays " " icon, then press key. Press key to choose menu 24 and display "FTIME". Press key enter into next menu, LCD displays " "...

  • Page 55: Lcd Backlight Color

    FUNCTION MENU SETUP Press key to choose menu 25 and display "LIGHT". Press key enter into next menu, LCD displays " " icon, press select desired setting. AUTO: Backlight will automatic closed after a period. OFF: Always off. ON: Always on. Press key or key to confirm and exit.

  • Page 56: Self Id Inquiry

    FUNCTION MENU SETUP Self ID inquiry After pressing key, the top left corner of LCD displays " " icon, then press key. Press key to choose menu 27 and display "ID". Press key enter into next menu, LCD displays " "...

  • Page 57: Battery Save

    FUNCTION MENU SETUP Battery Save User can setup battery save ratio according to requirements. The standby time can be extended when enable battery save function, but if save ratio setting too high, it may cause voice missing. After pressing key, the top left corner of LCD displays " "...

  • Page 58: Fm Radio

    FUNCTION MENU SETUP FM radio After pressing key, the top left corner of LCD displays " " icon, then press key. Press key to choose menu 30 and display "RADIO". Press key enter into next menu, LCD displays " " icon, press to select desired setting.

  • Page 59: Display Mode Setup

    FUNCTION MENU SETUP Display Mode Setup There are three kinds of display modes for optional. Press [MONI] key to turn on radio, hold [MONI] key until transceiver emits beep. Press key to choose No. 01 function item, it shows "DSP" on LCD. Press key enter into next menu, LCD displays "...
  • Page 60 FUNCTION MENU SETUP Press key to choose No. 02 function item, it shows "RESTOR" on LCD. Press key enter into next menu, LCD displays " " icon, press select desired setting. OFF: No operations. FACT: Resume all items to factory default, including channel and background settings.

  • Page 61: Auxiliary Functions

    AUXILIARY FUNCTIONS For dealers only. Please contact the authorized importer of your area for more details. Cable Cloning With this function, you can copy the programming data of the transceiver to another one; it can copy parameters and memory programming data to another transceiver. Connection: use wire cloning cable of your own to connect main transceiver with sub-transceiver through reading / writing programmable interface.

  • Page 62: Cable Cloning Instruction

    AUXILIARY FUNCTIONS Cable cloning instruction Connect the cable to SP jack TONE TONE SCAN SCAN DTMF DTMF NOTE: Commonly available 3.5mm φ stereo miniplug audio cable is usable.

  • Page 63: Optional Accessories

    OPTIONAL ACCESSORIES EA-228 VHF/UHF & FM radio Antenna EBC-41 Belt Clip EBP-92 Li-ion Battery Pack (DC 7.4V 1800mAh) EDC-202 Li-ion Battery Charger EDC-190E AC Adaptor (220V Linear type) EDC-191E AC Adaptor (220V) EDC-191T AC Adaptor (120V) EME-56A Earphone Microphone EMS-76 Speaker microphone...

  • Page 64: Recommended Installation Of Earphone Microphone

    RECOMMENDED INSTALLATION OF EARPHONE MICROPHONE Earphone Use a clip to fix with collar. Clip the PTT unit closer to your mouth. Carry the radio on the side or the back of your body, and the cable should go around the back as shown. Clamp the excessive length of cable at your waist...

  • Page 65: Technical Specification

    TECHNICAL SPECIFICATION General Receiving Part VHF： 136~174MHz Wide band narrow band Frequency Range UHF： 400~480MHZ Sensitivity ≤0.25μV ≤0.35μV Channel Capacity 200 channels (12dB SInAD) 25KHz (wide band) Adjacent Channel Channel Spacing 12.5KHz (narrow band) ≥65dB ≥60dB Selectivity Phase-locked 0.1KHz Intermodulation ≥60dB ≥60dB Step...

  • Page 66: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Problem Corrective Action A.The battery may be exhausting. Recharge or replace the battery. No power B.The battery may not be installed correctly. Remove the battery and install it again. Battery power dies shortly after The battery life is finished. Replace the battery pack with a new one. charging.

  • Page 67: Attached Chart

    ATTACHED CHART CTCSS Frequency Chart 62.5 94.8 136.5 177.3 218.1 67.0 97.4 141.3 179.9 225.7 69.3 100.0 146.2 183.5 229.1 71.9 103.5 151.4 186.2 233.6 74.4 107.2 156.7 189.9 241.8 77.0 110.9 159.8 192.8 250.3 79.7 114.8 162.2 196.6 254.1 82.5 118.8 165.5...

  • Page 68: 1024 Groups Dcs Frequency Chart

    ATTACHED CHART 1024 groups DCS frequency chart...
  • Page 69 ATTACHED CHART...
  • Page 70 ATTACHED CHART...
