Summary of Contents for Alinco DJ-FX446
-

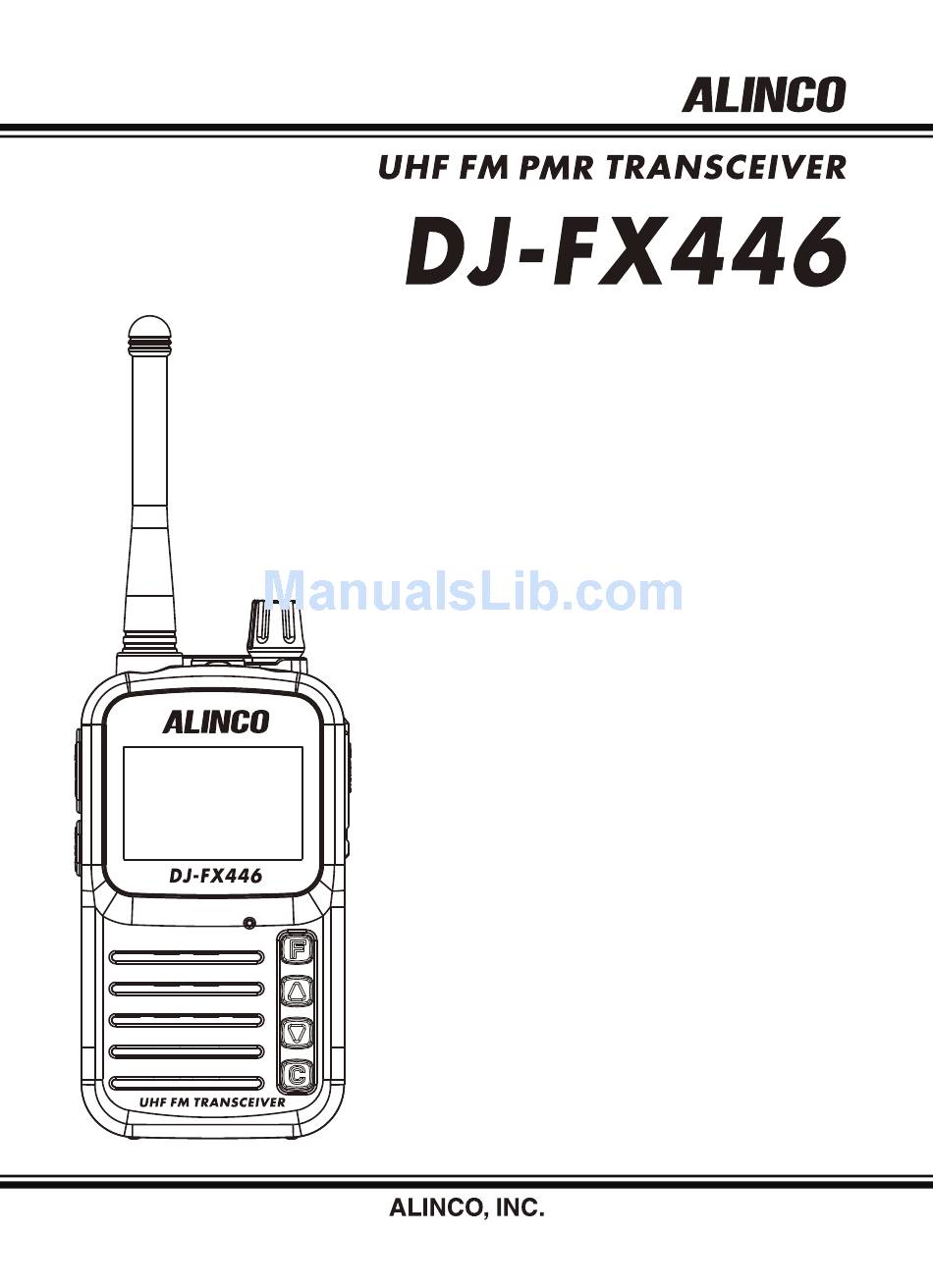

Page 1: Instruction Manual
Instruction Manual Thank you for purchasing your new Alinco transceiver. This instruction manual contains important safety and operating instructions. Please read this manual carefully before using the product and keep it for future reference. -
Page 2: Introduction
Introduction Please read this manual completely from the first page to the last, to learn all the functions the product offers. It is important to note that some of the operations may be explained in relationto information in previous chapters. By reading just one part of the manual, you may risk not understanding the complete explanation of the function. -
Page 3: Before Transmitting
(which is higher than10 kA.). Note also that no car provides adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with using its handheld radios outdoor or inside the car during lightning. -
Page 4: Notice/Compliance Information Statement
Conformity Information Alinco, Inc. Electronics Division hereby declares on our sole responsibility that the products listed belowcomply with the essential requirements of the Directive 1999/5/EC． The council of 3/9/99 on RadioEquipment and Telecommunication Terminal Equipument and the mutual... -
Page 5: Features
Features This transceiver has the following main features: ● Computer-programmable with free software downloadable from Alinco website (with optional ERW-8 interface cable) ● Works with 3.7V 1000mAh li-ion cell yet powerful legal-limit TX output and clear, crisp 300mW Audio output ●... -
Page 6: Warning
Warning To prevent any hazard during operation of Alinco’s radio product, in this manual and on the product you may find symbols shown below. Please read and understand the meanings of these symbols before starting to use the product. This symbol is intended to alert the user to an immediate danger that may Danger cause loss of life and property if the user disregards the warning. -
Page 7: Handling This Product
Warning In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold water if the liquid contacted your skin. Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in airports, in ports, within or near the operating area of business wireless stations or their relay stations. -
Page 8: In Case Of Emergency
Warning About chargers Do not use adapters other than having the specified voltage. It may result in electric shock, fire and/or malfunction. Never turn on the radio while charging. Do not plug multiple devices using an adapter into a single wall outlet. It may result in overheating and/or fire. -
Page 9: About Transceiver
Warning Caution Environment and condition of use Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference. Do not install in a humid, dusty or insufficiently ventilated place. It may result in electric shock, fire and/or malfunction. - Page 10 Copyright © All rights reserved. No part of this document may be reproduced, translated or transcribed in any form or by any means without the prior permission of Alinco. Inc., Osaka, Japan. Alinco and ALINCO logo are registered trademarks of Alinco incorporated, Japan in United States, EU States, Russia, China and many other countries.
-
Page 11: Table Of Contents
Contents Introduction ----------------------------------------------------------------------- Before transmitting ------------------------------------------------------------ NOTICE/Compliance Information Statement -------------------------- Features --------------------------------------------------------------------------- Warning ---------------------------------------------------------------------------- Contents --------------------------------------------------------------------------- Accessories ---------------------------------------------------------------------- Names and Operations of Parts ------------------------------------------- Basic Operation ----------------------------------------------------------------- Function key operation / Quick chart ------------------------------------ Trouble shooting Guide ------------------------------------------------------ Maintenance and Reference ------------------------------------------------ Specifications ------------------------------------------------------------------- Appendix --------------------------------------------------------------------------... -
Page 12: Accessories
Accessories EBP-90 Li-Ion 3.7V DJ-FX446 1000mAh Battery pack EDC-201 Adapter Instructions（This booklet） EBC-40 Belt clip (CEE 7/2 PIN) with hand strap... - Page 13 Accessories Battery Information Disassembly and Reassembly of the battery Slide down the battery cover by pushing notches. The battery cover will open. Observe that the battery terminals are located on the upper left side of the case. Be cautious to the polarity of the battery pack,and place it as shown below. Slide upward the battery cover until it clicks.
- Page 14 Accessories Caution • Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an incorrect type or reverse polarity. Use always the recommended types of batteries in this manual only. • The battery pack isn't fully charged when shipped. It must be charged before use. •...
- Page 15 Accessories 1.Installation of the belt clip Attach the clip as shown by sliding in the smaller piece to the frame on the back of the unit. It clicks when attached correctly. 2.Detaching the belt clip Observe a small projection as shown. While pusing it with a tool like a screw driver slightly toward the belt clip, push the clip upward to remove it.
-
Page 16: Names And Operations Of Parts
Names and Operations of Parts Antenna Not removable. Power/ volume switch LCD screen USB port (Push-to-talk) MONI key Function key and Key lock UP key DOWN key Microphone Call tone key Note : Please do not close the microphone hole. Speaker/Mic jack Strap hole (below the cover) - Page 17 Names and Operations of Parts KEY Lock (Voice operated Voice Scrambling transmission) Tx/Rx Battery capacity indication in 4 levels Stand-by Receiving CTCSS Transmitting Tone code Channel display Squelch Roger tone Function beep Dual watch Auto Power Off Priority scan...
-
Page 18: Basic Operation
Basic Operation Function introduction 1. To turn on/off Attach the battery pack. Turn on the power by turning the dial clockwise. A beep sounds and the icons appear on the display. Turn the dial counterclockwise gently until locks to turn off. Stop rotating the dial when it's turned off otherwise the dial may be damaged and cause malfunction. - Page 19 Basic Operation 4. CTCSS/DCS CTCSS and DCS are used to filter receiving audio, and sometimes effective to eliminate receiving noise. Their functions are practically the same, just different technology is used. All users in the same group should set the same CTCSS or DCS code to the units.
- Page 20 Basic Operation 5: CALL TONE tune setting Press key to transmit a call tone to attract an attention of users in your group. The tone is selectable from 5 different tunes. key and press triangle keys to select CALL ・Press menu.
- Page 21 Basic Operation Note: ・VOX doesn't work properly in a noisy place, as the noise cause transmitting. ・VOX doesn't work properly when the battery level is low. 7. DW (Dual Watch) function This function enables to manage transmitting and receiving 2 channels of your choice easily.
- Page 22 Basic Operation 8. SQL function Squelch is a function that eliminates the noise when no signals are being received. Setting the higher squelch level allows you to monitor only stronger signals. Usually start from level zero (the squelch is open and hear the noise), increasing the level and when the noise is gone, set just 1 level higher than the current level.
- Page 23 Basic Operation 10. Function beep When ON is selected, a beep sounds at any key operation except PTT. ・Press key and press triangle keys to select Beep menu. A note icon and OF or ON is displayed. ・Press key again, and use triangle keys to select a desired parameter.
- Page 24 Basic Operation 12. APO function When activated, it will automatically turn off the power after a preset time is elapsed without being key operated. ・Press key and press triangle keys to select APO menu. An APO icon and OF or 01-06 is displayed. ・Press key again, and use triangle keys to select a desired parameter.
-
Page 25: Function Key Operation / Quick Chart
Function key operation / Quick chart Function key Parameter Operation (F key) Press the “ ” or “ ” key to F key CODE 01-105/OF select， Press the “ ” to save and back to previous menu Default: OF “ ” key Press the “... - Page 26 Function key operation / Quick chart Press the “ ” or “ ” key to F key ON/OF select， Press the “ ” to save and back to previous menu Default: OF “ ” key Press the “ ” or “ ”...
-
Page 27: Trouble Shooting Guide
Trouble shooting Guide Problem Corrective Action A. The battery may be exhausting. Recharge or replace the battery. B. The battery may not be installed correctly. Remove the No Power battery and install it again. C. The power switch is broken; send it to local dealers to repair. D. -
Page 28: Maintenance And Reference
Maintenance and Reference 1. Never grab the antennas, earphones or microphones to carry the units. It may cause damage to the accessories and/or units. 2. Periodically clean the surface of the unit with a clean cloth. Those cleaning kits for digital cameras are ideal also to clean the radio products. 3. - Page 29 Maintenance and Reference Optional / Spare accessories Li-ion Battery Pack (DC 3.7V 1000mAh) ・EBP-90 Belt Clip ・EBC-40 AC Adaptor (NEMA Type A) ・EDC-200 AC Adaptor (CEE 7/2 PIN) ・EDC-201 Earphone Microphone (Can't operate VOX) ・EME-24 Earphone Microphone with VOX ・EME-61 Speaker microphone (Can't operate VOX) ・EMS-60 Recommened installation of earphone...
-
Page 30: Specifications
50W x 157H x 19D mm(with antenna) Weight approx. 90g (with battery pack) * All specifications are subject to change without notice or obligation. * ALINCO and Alinco logo are registered trademarks of Alinco, Inc in many countries including USA, Russia, EU states and China. -
Page 31: Appendix
Appendix 50 Group of CTCSS Frequency(Hz) 67.0 94.8 131.8 171.3 203.5 69.3 97.4 136.5 173.8 206.5 71.9 100.0 141.3 177.3 210.7 74.4 103.5 146.2 179.9 218.1 107.2 77.0 151.4 183.5 225.7 79.7 110.9 156.7 186.2 229.1 82.5 114.8 159.8 189.9 233.6 85.4 118.8... - Page 32 Yodoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:export@alinco.co.jp UHF FM transceiver 8 PMR446 channels. Use of this device is authorized in all EU and EFTA member states (CH/ICE/LI/NOR). Copyright Alinco, lnc. PS0845/FNEI-NI Printed in China...
