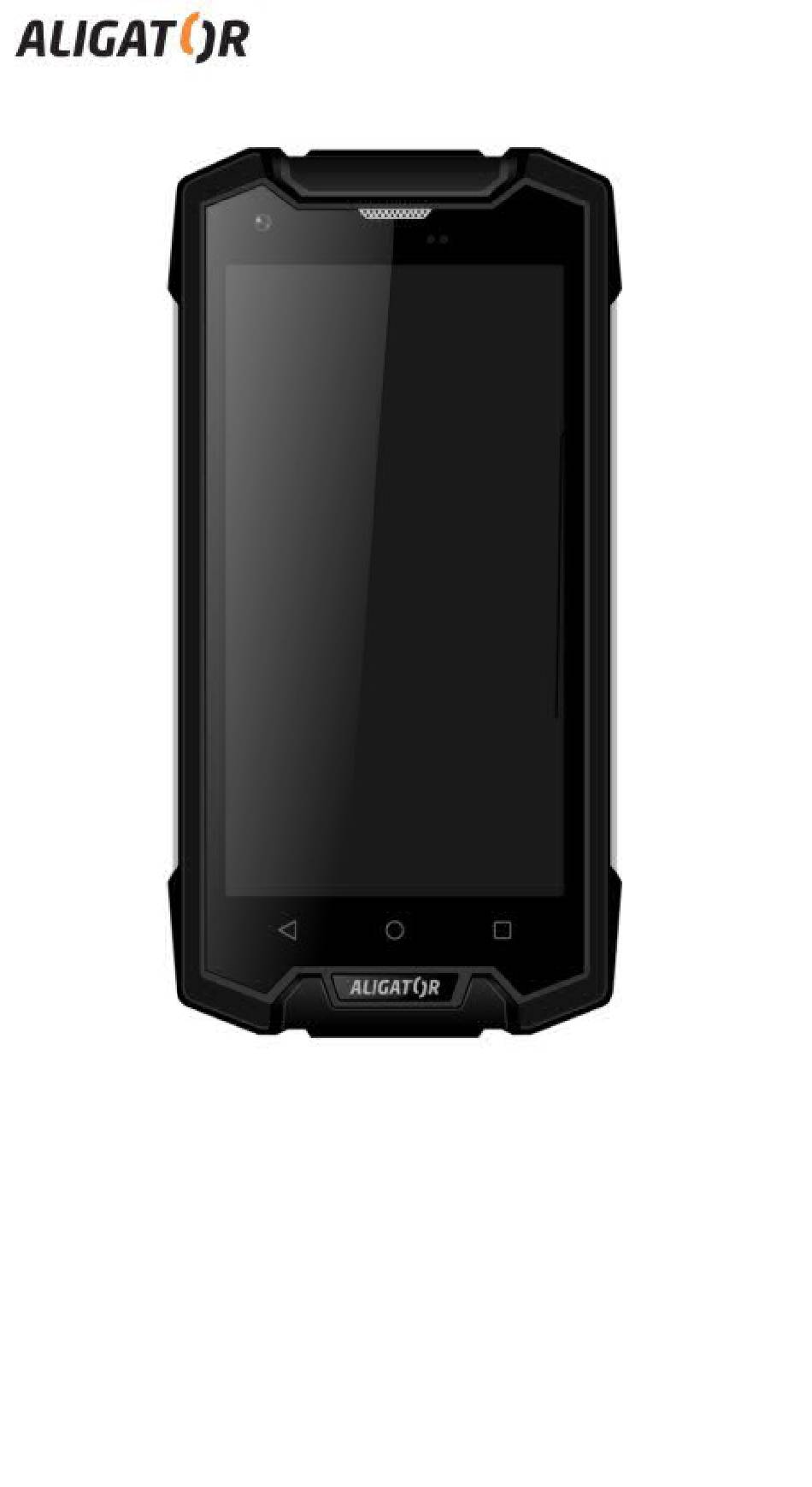

- Page 1 RX510 eXtremo Quick Guide...
-
Page 2: Table Of Contents
Choice of SIM for calling, SMS + Internet …..16 Choice of network by connection difficulties..16 Photography …............ 17 PC connection........... 17 Safety and ecology …..........18 Declaration of conformity........19 Before you start We thank you for buying of this resistant mobile phone ALIGATOR. -
Page 3: Dual Sim Function
Before you start, please read this quick guide with important instructions. DUAL SIM function Your mobile phone can operate on 1 or 2 SIM cards. If you insert only 1 SIM card, your mobile phone works like a standard mobile phone. - Page 4 by a durable phone the display can crash damage ! Your phone is water resistant, assuming that all the hole covers are properly fitted and sealed. Yet if possible, keep away from water. In case of contact, respectively immersion in water, remove it from water as soon as possible and let it properly dry.
- Page 5 phone in the prohibited areas Do not use the mobile phone while driving the Turn off the mobile phone near the sensitive medical device unless you are sure that the radio transmission of the mobile phone does not influence its functions ...
- Page 6 Do not put the battery at the fire and do not expose it to the temperature over +60°C (danger of explosion or fire) SAR – mobile phone meets the prescriptions for maximal emission of the electromagnetic radiation While making a call please keep the mobile phone at least 2,5 cm away from the body to minimalise the quantity of...
-
Page 7: Insert Sim Cards
lnsert SIM cards Make sure that the mobile phone is switched off. Loosen 2 screws on the back side of the mobile phone and remove the cover Insert one or two SIM cards at the prepared positions. Pictures by the positions show in which way the SIM cards should be inserted. -
Page 8: Mobile Controls
Mobile controls 1. Button „Menu“ 2. Button „Main screen“ 3. Button „Backwards“ 4. Volume 5. Button „Switch On / Off“ 6. Ear ph on e 7. E arphone connector 8. Front camera 9. Micro USB connector 10. Button „Camera“... -
Page 9: Switch On
Switch on To Turn On – press the button On/Off (5) and wait for a while till the mobile phone is The setup wizard is displayed by the first start. Choose your language and follow the instructions on the screen. To Turn off - press and hold the phone button (5) until the display shows the window asking to shut down. -
Page 10: Operational System Android
Generally it is necessary to unlock the screen after the activation. Put the finger on symbol „Lock“ on the screen and move it Up, left (for calling) or to the right (camera).The screen will be unlocked. Android™ system Your mobile phone is provided with the Android operating system. - Page 11 (2) Main screen – short press for return to the main screen, long press helps to display the Goggle search. (3) Back – serves to move back by one step/level (or to go to the preceding screen, to close the options, dialog windows on the screen etc.) System control Your mobile phone can be controlled by...
- Page 12 Main screen Same as on your PC you have available a main screen on the mobile phone. The main screen is devided into several pages that can be displayed by moving of your finger to the left/right direction. You can place shortcuts of applications and links or widgets on the main screen.
- Page 13 Before buying of any new application please try first its gratis version if it works correctly in your mobile phone. Information and display of status So called status bar is placed in the upper part of the screen. You may find here the information about time, battery level and signal but also other useful information.
-
Page 14: Making Calls
Making calls Dialing Click on the earphone icon on the main screen. Screen with keypad for number dialling will be displayed. Tap the keyboard icon at the bottom of the screen to display the keyboard. You can enter the tel.number with the use of the keypad buttons. -
Page 15: Sms Messages
with the receiver is displayed on the screen (if available) To answer the call : move the button to the right towards the symbol of a Green receiver To reject the call : move the button to the left towards the symbol of a Red receiver When working with your phone the call alert appears as a dialog box with buttons for... -
Page 16: Choice Of Sim For Calling, Sms + Internet
2. A list of conversations containing received and sent SMS and MMS messages will be displayed. 3. Select the icon New message on the left bottom side of the screen. 4. Now you can insert the receiver of the text message. -
Page 17: Photography
sufficient signal, restart mobile phone and possibly temporarily disable the 4G network connection: Tap on the main screen and select Settings icon in the Wireless connection & networks click Next. Next select the Mobile networks and select preferred network type for each SIM card. Now select GSM / WCDMA auto (2G / 3G) or GSM only (2G only). -
Page 18: Safety And Ecology
Internal storage in your phone and inserted MicroSD card will be connected to a computer in the file “Computer”, in section “Portable Devices” and under the name “ALIGATOR RX510. Connection can be cancelled by disconnecting of the cable. Safety and ecology Used electric device Mobile phone is an electronic appliance. -
Page 19: Declaration Of Conformity
Handling with the used batteries in contradiction with given instructions is illegal! 0700 Declaration of conformity No. 6/6/2016 Issued in accoprdance with the prescription : EU R&TTE, 1999/5/EC Product: Mobile Phone for GSM, WCDMA and LTE network Model: ALIGATOR RX510... - Page 20 Importer: ADART COMPUTERS s.r.o., Sokolovská 161, 180 00 Praha 8, Reg.No.: 25074547 Evaluated product is a mobile phone intended to be used and stored in standard conditions. The importer declares that the product is for its use safe and during the production there are taken control and other measurements securing the confirmity of the product with the basic requirements and technical documentation.
