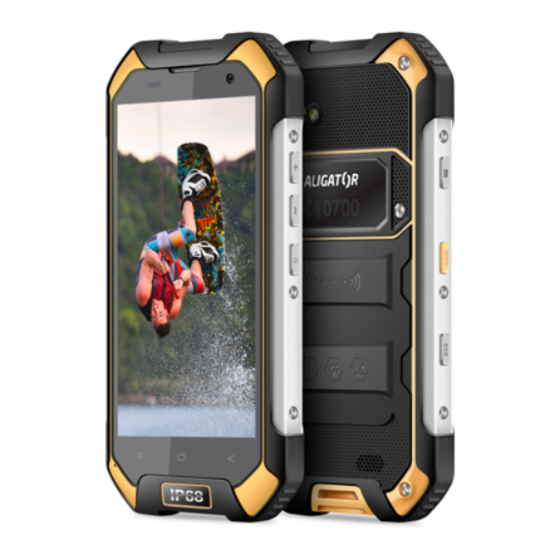

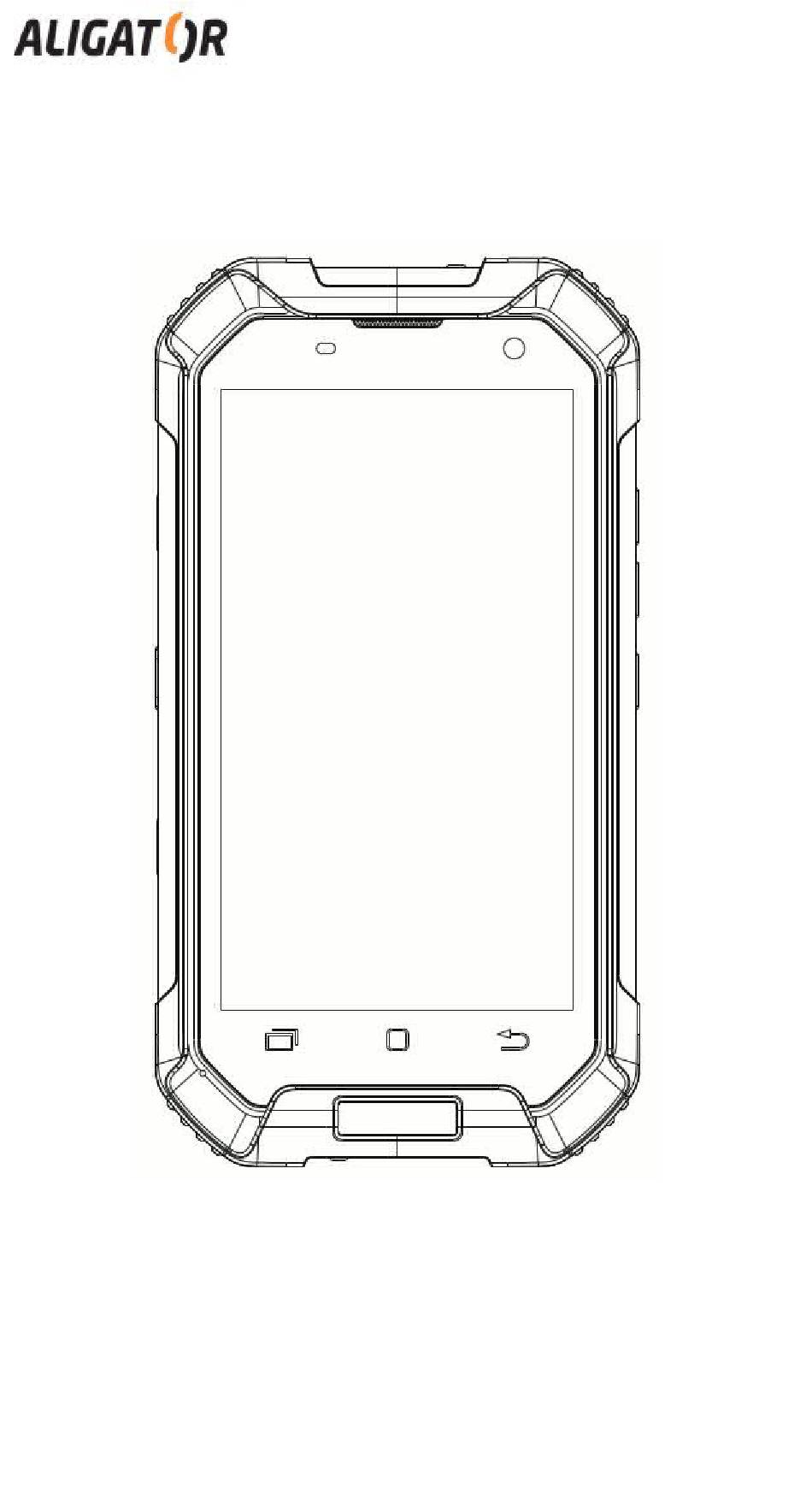

- Page 1 RX550 eXtremo Quick guide...
-
Page 2: Table Of Contents
PTT Button............17 PC connection..........18 Safety and ecology …......... 18 Declaration of conformity ........ 20 Before you start We thank you for buying of this resistant mobile phone ALIGATOR. Before you start, please read this quick guide with important instructions. -
Page 3: Dual Sim Function
DUAL SIM function Your mobile phone can operate on 1 or 2 SIM cards. If you insert only 1 SIM card, your mobile phone works like a standard mobile phone. If you insert 2 SIM cards, both are working on line at the same time and it is possible to make a call on either card. - Page 4 and let it properly dry. When deploying all caps be always sure that the seal caps are not dirty and that the covers seal properly and are fully deployed. If the phone or its part gets into the contact with water, dry it thoroughly before using.
- Page 5 � other implanted apparatus please consult your medical doctor Turn off the mobile phone in the aircraft D o not use the mobile phone near the filling petrol station, turn off the mobile phone always near explosives Use always original batteries supplied by the producer (danger of damage or explosion of the mobile phone)
-
Page 6: Insert Sim Cards
small parts that they can suffocate or can hurt ! Failure to comply with these instructions may void the warranty on the device Software and hardware of the mobile phone are continuously updated. The importer reserves the right to alter the instruction manual or mobile phone functions without a prior notice lnsert SIM cards... -
Page 7: Mobile Controls
Make sure that the mobile phone is switched off. Loosen 2 screws on the back side of the mobile phone and remove the cover. Insert one or two SIM cards at the prepared positions. Pictures by the positions show in which way the SIM cards should be inserted. -
Page 8: Switch On
3. Button „Backwards“ 4. Volume 5. Button „Switch On / Off „ 6. Earphone 7. Ea r p ho ne c on ne c t or 8. F ront camera 9. Micro USB connector 10. Button „Camera“ 11. PTT Button 12. -
Page 9: Telephone Reset
Mobile phone reset In case the phone does not respond or if you need to reset it, press and hold the On/Off button (5) until the phone reboots. Activation and screen unlock The screen will be Switched Off after a certain time of inactivity. -
Page 10: Basic Control
Basic control Meaning of the touch buttons (1) to (3) Launched applications/Menu – serves to display a list of recently opened applications. After a long press displays the menu of items available on the current screen or in a running application (2) Main screen –... - Page 11 Main screen Same as on your PC you have available a main screen on the mobile phone. The main screen is devided into several pages that can be displayed by moving of your finger to the left/right direction. You can place shortcuts of applications and links or widgets on the main screen.
- Page 12 There are thousands of various applications suitable for Android system but not all of them can work properly in your mobile phone. Before buying of any new application please try first its gratis version if it works correctly in your mobile phone. Information and display of status So called „Status bar“...
-
Page 13: Making Calls
Making calls Dialling Click on the earphone icon on the main screen. Screen with keypad for number dialling will be displayed. Tap the keyboard icon at the bottom part of the screen to display the keyboard. You can enter the tel.number with the use of the keypad buttons. -
Page 14: Sms Messages
about his telephone number and a button with the receiver is displayed on the screen (if available) To answer the call : move the button to the right towards the symbol of a Green receiver To reject the call : move the button to the left towards the symbol of a Red receiver When working with your phone the call alert... -
Page 15: Choice Of Sim For Calling, Sms + Internet
and sent SMS and MMS messages will be displayed 3. Select the icon New Message with symbol +. 4. Now you can insert the receiver of the text message. 5. To send the text message press the arrow button placed on the right side of the text. Choice of SIM card for calling, SMS and internet Click on icon Settings/Setup on the main... -
Page 16: Photography
Tap on the main screen and select Settings icon in the Wireless connection & networks click Next. Further select the Mobile networks and select preferred network type for each SIM card. Now select GSM / WCDMA auto (2G / 3G) or GSM only (2G only). Photography Start the camera by tapping the camera icon or press and hold the side button (10). -
Page 17: Sos Button
When you start the camera, you can take a shot by a short press of the side button (10) and make a video by a long press of the side button (10). SOS button You can easily run the emergency calls to preset tel.numbers by pressing the SOS button. -
Page 18: Pc Connection
More information to download see at www.zello.com or look up the application in the Google Play ™ store. PC connection You do not need any special drivers (Vista, 7, event. newer) for connection to the common PC . Follow these steps : 1. -
Page 19: Safety And Ecology
Safety and ecology Used electric device Mobile phone is an electronic appliance. It means it must not be manipulated as a common residential waste. Never throw the used device away at the common municipal waste !!! Hand over the electric devices to the respective collection point which provides the ecological liquidation. -
Page 20: Declaration Of Conformity
Issued in accordance with the prescription : EU R&TTE, 1999/5/EC Product: Mobile Phone for GSM, WCDMA a LTE network Model: ALIGATOR RX550 Importer: ADART COMPUTERS s.r.o., Sokolovská 161, 180 00 Praha 8, Reg.No. 25074547 Evaluated product is a mobile phone intended to be used and stored in standard conditions.
