- Page 1 Mitel 6800 Series Wall Mount Kit 41-001518-00 REV02 INSTALLATION GUIDE...
- Page 2 ). The information is subject to change without notice and should not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document. Revisions of this document or new editions of it may be issued to incorporate such changes.
- Page 3 Equipment for which the Software was intended. This Product may integrate programs, licensed to Mitel by third party Suppliers, for distribution under the terms of this agreement. These programs are confidential and proprietary, and are protected as such by copyright law as unpublished works and by international treaties to the fullest extent under the applicable law of the jurisdiction of the Customer.
-
Page 4: Table Of Contents
Table of Contents Software License Agreement............ii Welcome . -
Page 5: Welcome

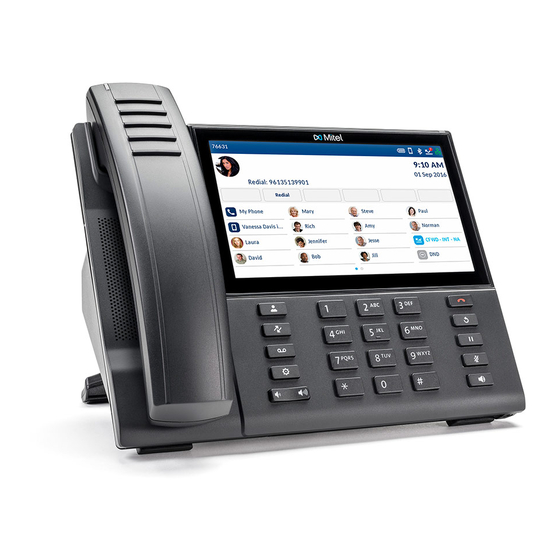

This manual describes how to physically install your 6863i, 6865i, 6867i, or 6869i IP Phone to a wall using the 6800 Series Wall Mount Kit. Contact your System Administrator if you have any additional questions with regards to the 6800 Series Wall Mount Kit or your IP Phone. -
Page 6: Wall Mount Kit Parts
Mitel 6800 Series Wall Mount Kit Installation Guide WALL MOUNT KIT PARTS When you unpack the 6800 Series Wall Mount Kit package, you should ensure that you have all of the following items. If any part is missing, contact the supplier of your phone. -
Page 7: Installation
Installation INSTALLATION The 6800 Series Wall Mount Kit can be used to mount your 6863i, 6865i, 6867i, and 6869i IP Phone to the wall in one of two ways: • Directly to the wall • On top of an existing telco wall plate... - Page 8 Mitel 6800 Series Wall Mount Kit Installation Guide 3. Carefully insert the Wall Mount Connector into the insertion area of your phone and slide the Wall Mount Connector towards the right until it snaps in place. 4. Turn over your phone and locate the handset hook found in the handset cradle.
- Page 9 3. Depending on the wall type, you may need to use wall anchors. Wall anchors are included with your 6800 Series Wall Mount Kit. 7. On the back of your phone, connect the provided Ethernet cable into the network port marked with .
- Page 10 Mitel 6800 Series Wall Mount Kit Installation Guide 8. Gently slide the Wall Mount Connector attached to your phone into the Wall Mount Base until it snaps into place. Use the figure below as a guideline (viewed from the right side).
- Page 11 Installation 9. (Optional) Insert the locking screw into the Screw Lock Hole located on the right side of the Wall Mount Connector and gently tighten using a Philips-head screwdriver to secure the Wall Mount Connector to the Wall Mount Base. WARNING:TIGHTEN THE SCREW UNTIL SNUG BUT DO NOT OVER TIGHTEN.
-
Page 12: Telco Wall Plate Installation
Mitel 6800 Series Wall Mount Kit Installation Guide TELCO WALL PLATE INSTALLATION To mount your phone on top of an existing telco wall plate: 1. Separate the Wall Mount Connector from the Wall Mount Base by pulling the Release Lever (on the Wall Mount Connector) in and pulling the Wall Mount Connector up. - Page 13 Ensure that the screws are loose enough so that the Wall Mount Base is able to slide in place. Note: Depending on the wall type, you may need to use wall anchors. Wall anchors are included with your 6800 Series Wall Mount Kit.
- Page 14 Mitel 6800 Series Wall Mount Kit Installation Guide The orientation of the Wall Mount Base determines the viewing angle of the phone. Use the degree markings on the Wall Mount Base to select the viewing angle, overlay the Wall Mount Base on top of the telco wall plate with the desired angle facing up, and pull down to secure the Wall Mount Base in place.
- Page 15 Installation 8. Gently slide the Wall Mount Connector attached to your phone into the Wall Mount Base until it snaps into place. Use the figure below as a guideline (viewed from the right side). 10° Orientation (6863i, 6865i, and 6867i) Push down 20°...
- Page 16 Mitel 6800 Series Wall Mount Kit Installation Guide 9. (Optional) Insert the locking screw into the Screw Lock Hole located on the right side of the Wall Mount Connector and gently tighten using a Philips-head screwdriver to secure the Wall Mount Connector to the Wall Mount Base.
-
Page 17: Dismounting The Phone
Dismounting the Phone DISMOUNTING THE PHONE To dismount the installed phone from the wall mount: 1. Locate and place your fingers on the Release Lever (on the Wall Mount Connector) and with your thumb on the top front of the phone press the Release Lever firmly towards you. ✓... -
Page 18: Limited Warranty
Mitel will not accept liability for any damages and/or long distance charges, which result from unauthorized and/or unlawful use. -
Page 19: Limited Warranty (Australia Only)
Consumer Act 2010 (the ACL), the exercise of a right conferred by such a provision or any liability of Mitel in relation to a failure to comply with a guarantee that applies under Division 1 of Part 3-2 of the ACL to a supply of goods or services. -
Page 20: Warranty Repair Services
(e.g. goods/services ordinarily supplied for business-use) 1.1 To the extent permitted by law and subject to clause 1.2 below, the liability of Mitel to you for any non-compliance with a statutory guarantee or loss or damage arising out of or in...
