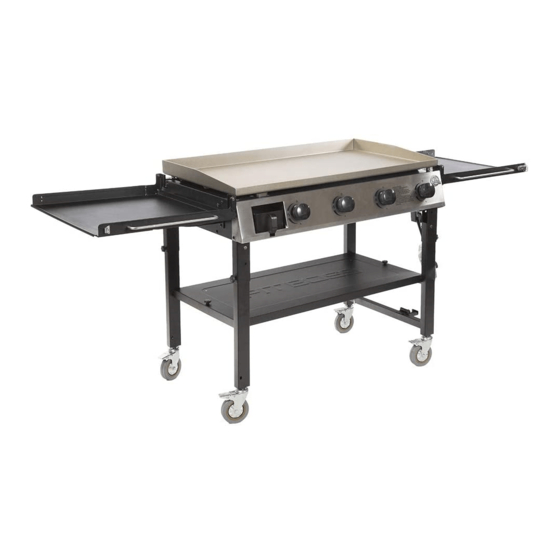

757GD
PORTABLE
GAS GRIDDLE
IMPORTANT, READ CAREFULLY, RETAIN
FOR FUTURE REFERENCE. MANUAL MUST
BE READ BEFORE OPERATING!
300522
ASSEMBLY AND OPERATION
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER
ASSEMBLY AND SAFE USE OF THE APPLIANCE. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS
BEFORE ASSEMBLING AND USING THE APPLIANCE. KEEP THIS MANUAL FOR FUTURE REFERENCE.
WARNING: Please read the entire manual before installation and use of this gas appliance. Failure
to follow these instructions could result in property damage, bodily injury or even death. Contact
local building or fire officials about restrictions and installation inspection requirements in your area.
MODEL: PB757GD
PART: 10555
FOR OUTDOOR AND HOUSEHOLD USE ONLY.
NOT FOR COMMERCIAL USE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pit Boss PB757GD
Summary of Contents for Pit Boss PB757GD
- Page 1 MODEL: PB757GD PART: 10555 757GD PORTABLE GAS GRIDDLE IMPORTANT, READ CAREFULLY, RETAIN FOR FUTURE REFERENCE. MANUAL MUST BE READ BEFORE OPERATING! 300522 ASSEMBLY AND OPERATION THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER FOR OUTDOOR AND HOUSEHOLD USE ONLY.
-
Page 2: Safety Information
SAFETY INFORMATION A MAJOR CAUSE OF FIRES ARE A RESULT OF POOR MAINTENANCE AND A FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. Please read and understand this entire manual before attempting to assemble, operate or install the product. - Page 3 not touch hot surfaces. Use heat-resistant gloves, long-handled tongs, or cooking mitts at all times, since the griddle will become very hot. 6. Never use the griddle without the grease cup installed and hung under the firebox. Without the grease cup, hot grease and debris could leak downward and produce a fire hazard.
-
Page 4: Table Of Contents
In accordance with the procedures and specifications listed in the ANS Z21.89-2017 • CSA 1.18-2017 Outdoor Cooking Specialty Gas Appliance. ” Pit Boss® Grills cooking appliances have been independently tested and listed by CSA (an accredited testing laboratory) to CSA standards. -
Page 5: Parts & Specs
MODEL ASSEMBLED (WxDxH) WEIGHT COOKING AREA RANGE 1,959 mm x 614 mm x 895 mm 58.4 kg 5,490 cm² 104-260°C PB757GD 62,000 / 77.1 in x 24.2 in x 35.2 in / 128.7 lb / 851 sq. in. / 220-500°F... -
Page 6: Assembly Preparation
If any part is missing or damaged, do not attempt to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Grills Customer Service for parts: Monday through Sunday, 4am - 8pm PST (EN/FR/ES). -
Page 7: Expanding The Cart
3. EXPANDING THE CART Parts Required: Firebox (#1) Installation: • Close the side shelves and lock the front latch. Note illustration 3A. • Unlock the cart of the griddle by pulling back on the locking system pins near the wheel. Expand the legs completely. Note illustration 3B. 4. -
Page 8: Placing The Grease Cup
6. MOUNTING THE CONTROL KNOBS Parts Required: Control Knob (#4) Installation: • Mount each Control Knob to the front panel of the unit. 7. PLACING THE GREASE CUP Parts Required: Grease Cup (#3) Installation: • On the front of the unit, place the Grease Cup into the Grease Cup housing, as shown in the illustration. -
Page 9: Connecting To A Gas Supply
CONNECTING TO A GAS SUPPLY GAS CYLINDER REQUIREMENTS The griddle is set and tested with liquid propane gas only. The regulator supplied is set for 27.94 cm (11 inch) water column (WC) and is for use with LP gas only. The factory-supplied regulator and hose must be used with a 9 kg (20 lbs) LP gas tank. Contact your gas supplier for a special regulator for bulk gas that fuels other appliances. -
Page 10: Operating Instructions
With all outdoor appliances, outside weather conditions play a big part in the performance of your griddle and the cooking time needed to perfect your meals. All Pit Boss® Grills units should keep a minimum clearance of 914mm (36 inches) from combustible constructions, and this clearance must be maintained while the griddle is operational. -
Page 11: First Use - Griddle Burn-Off
Procedure: 1. Position the griddle in a well-ventilated area. Ensure the griddle is cool to the touch, and not in use. Verify that the regulator value is turned to the OFF position and that the gas cylinder is tightened securely to the regulator. IMPORTANT: Ensure there is no open flame or smokers nearby. -
Page 12: Manual Lightingprocedure
MANUAL LIGHTING PROCEDURE Verify that the control knob is turned to the OFF position. 2. Connect LP gas cylinder as per instructions. Turn LP gas tank valve to OPEN. 3. Note the indicator marker on the control knob. Push in the regulator knob and turn 90 degrees (or 1/4) counter- clockwise to HIGH. -
Page 13: Storing Your Griddle
STORING YOUR GRIDDLE Your griddle can quickly and easily be collapsed for storage and easy transportation. To fold down and securely store your griddle, simply follow the assembly instructions in reverse or the following summary: 1. Fold-in the lower gas cylinder bracket. Raise the upper gas cylinder hook. -
Page 14: Care & Maintenance
CLEANING FREQUENCY Any Pit Boss® unit will give you many years of flavorful service with minimum cleaning. Follow these cleaning and maintenance tips to service your griddle: 1. -
Page 15: Tips & Techniques
Use a set of long-handled tongs for turning meats, and a spatula for turning burgers and fish. Using a piercing utensil, such as a fork, will prick the meat and allow the juices to escape. dealer or visit www.pitboss-grills.com . Accessories are available for purchase separately. Contact your local authorized Pit Boss ®... -
Page 16: Troubleshooting
TROUBLESHOOTING Proper cleaning and maintenance will prevent common operational problems. When your griddle is operating poorly, or on a less frequent basis, the following troubleshooting tips may be helpful. For FAQ, please visit www.pitboss-grills.com . You may also contact your local dealer or Customer Service for assistance. WARNING: Always ensure the griddle is completely cooled to avoid injury. -
Page 17: Replacement Parts
REPLACEMENT PARTS Part# Description Hot Plate Main burner A - 3 per grill Main burner B Main burner igniter wire - 4 per grill Firebox Right side shelf Side handle assembly - 2 per grill Nameplate Regulator assembly Lighting rod Main gas valve and main manifold assembly Gas control knob - 4 per grill Heat shield... -
Page 18: Warranty
CONDITIONS All gas griddles by Pit Boss® Grills, manufactured by Dansons, carry a limited warranty from the date of sale by the original owner. The warranty coverage begins on the original date of purchase and proof of date of purchase, or copy of original bill of sale, is required to validate the warranty. - Page 19 The serial and model number of your Pit Boss® can be found on the back of the unit. Record numbers below as the label may become worn or illegible.
- Page 20 IMPORTANT DO NOT RETURN PRODUCT TO STORE For all questions, comments, or inquiries, please contact Dansons directly. Our Customer Service department is available Monday through Sunday, 4am - 8pm PST (EN/FR/ES). TOLL FREE: 1-877-303-3134 TOLL FREE FAX: 1-877-303-3135 service@pitboss-grills.com WARNING: Combustion of propane gas can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer, and carbon...
