- Page 1 Version 2.0 NS022219 Copyright © 2019 NugSmasher. All Rights Reserved. N u g s m a s h e r x...
-
Page 2: Table Of Contents
table of contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Quick Start Guide . -
Page 3: Introduction

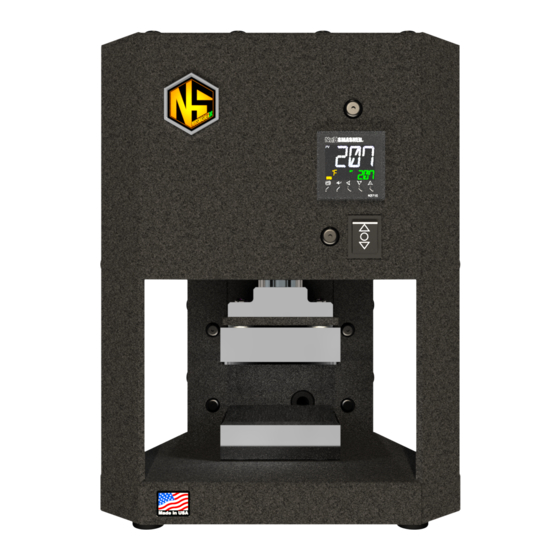

Introduction Thank you for the purchase of your NugSmasher® X. We have designed this unit for the purpose of effortless rosin extraction for up to 14 grams of flower with one touch operation. When setting up your unit, please ensure your stand is suitable for the weight of the machine. -
Page 4: Quick Start Guide
Plate Control Your NugSmasher X is designed for simple one touch operation. Simply raise and lower the plates with the up and down arrows to control plate movement. For great instructional videos, check out NugSmasher’s YouTube Channel. Note: A full compression of your plates will extract between 3 -14grams at precise surface area PSI for full extraction when only NugSmasher X bag is used. - Page 5 Quick start guide Set power switch (back of unit and indicated by the red circle) to the “on” position. You will notice on your control screen there are two rows of digits. The top is the current temperature of the heat plates. The bottom is the set temperature. The X comes preset at 200 degrees Fahrenheit and will take approximately 10-12 minutes to reach set temperature depending on your location.
-
Page 6: Pid Controller
PID controller SMASHER Relay output 3A/250VAC 5A/30VDC control Operation Manual output 12VDC/50mA(Used to drive SSR) SSR output IEC61000-4-4(Electrical Fast Transient Burst)±4KV/5KHz; Electromagnetic NS710 LCD Display PID Temperature Controller compatibility (EMC) IEC61000-4-5(Surge),4KV Lsolation Between power,relay contact or signal terminals 2300 ≥ VDC;between 1. - Page 7 PID controller 6.2 Set Value Setting 6 Display the status and basic operation In the basic display state, press key can directly modify the given value. The basic display state 6.3 “At”PID Parameter auto-tuning Press and hold for 2 seconds, the At parameter appears, "At"...
- Page 8 PID controller 8. default settings. CntL Control onoF: on-off control. For situation not requiring high precision. onoF mode FPId: advanced artificial intelligence ”FUZZY PID“ control. FPId factory setting factory setting factory setting Parameter code Parameter code Parameter code orEv Selection of onr: Reverse acting.
-
Page 9: Unit Operation
Note: The X bags are the only brand of bags we recommend for proper extraction with the NugSmasher X as they are designed with proper circumference to apply correct surface area pressure with 3-14 grams of material. Visit Terp Files at nugsmasher.com/view-public-rosin-data/ for great reference to strains, temps and unit settings used. - Page 10 Loading Micron Bags: NugSmasher® X is designed to be used with NugSmasher X extraction bags for optimal yield and clean quality rosin. Our bags are hand-made and packaged in the USA! NugSmasher® extraction bags are specifically designed to press between 3-14 grams of fresh cured flower and are labeled accordingly at 37, 90, 120, and 160 microns.
-
Page 11: Notice
As an example, we shall not be liable for any loss of material made using this product or indirect damages caused by the product. • Use of your NugSmasher® press should be done in accordance with all local, state and federal regulations. It is owner/users responsibility to know and understand laws and regulations regarding concentrates. -
Page 12: Safety
Safety • Keep away from children, pets and clothing. • Never leave the extractor on when you go to sleep or leave the area. • Never use or store flammable liquids (such as gasoline) around the extractor. The flammable vapors can flow from one part of the room to another and be ignited by an electrical spark. - Page 13 rosin made simple NS022219 Version 2.0...
