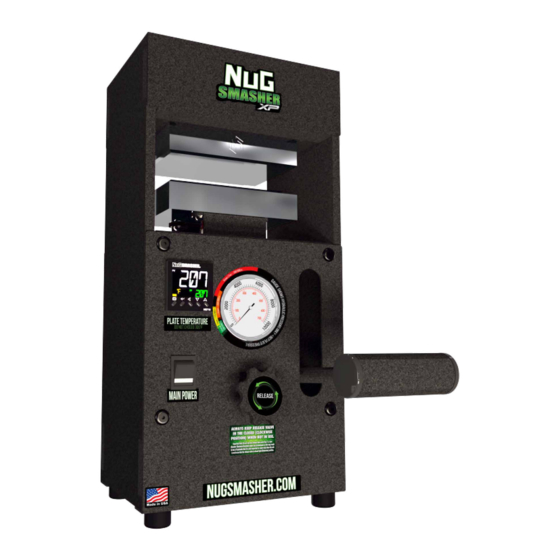

Nugsmasher XP Owner's Manual

Hide thumbs Also See for XP:

Advertisement

Quick Links

Download this manual
Version 2.0
NS022219
Copyright © 2019 NugSmasher. All Rights Reserved.
rosin
made
simple
owners manual
N u g s m a s h e r X P

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP and is the answer not in the manual?

Questions and answers

Related Manuals for Nugsmasher XP

Summary of Contents for Nugsmasher XP

  • Page 1 Version 2.0 NS022219 Copyright © 2019 NugSmasher. All Rights Reserved. N u g s m a s h e r X P...

  • Page 2: Table Of Contents

    table of contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Quick Start Guide .

  • Page 3: Introduction

    Thank you for the purchase of your NugSmasher® XP. We have designed this unit for the purpose of effortless rosin extraction for up to 28 grams of flower. When setting up your unit, please ensure your stand is suitable for the weight of the machine.

  • Page 4: Quick Start Guide

    quick start guide When starting your unit make sure the plates are closed (surface of plates should be pressed together) this will allow the temperature sensor in the bottom plate to get an accurate top and bottom reading and distribute the desired temperature to both plates. Additionally, bring plates together if more than 3 minutes passes to ensure accurate temperature readings.
  • Page 5 The top is the current temperature of the heat plates. The bottom is the set temperature. The XP comes preset at 200 degrees Fahrenheit and will take approximately 7-10 minutes to reach set temperature depending on your location.

  • Page 6: Pid Controller

    pid controller SMASHER Relay output 3A/250VAC 5A/30VDC control Operation Manual output SSR output 12VDC/50mA(Used to drive SSR) IEC61000-4-4(Electrical Fast Transient Burst)±4KV/5KHz; Electromagnetic NS710 LCD Display PID Temperature Controller compatibility (EMC) IEC61000-4-5(Surge),4KV Lsolation Between power,relay contact or signal terminals 2300 ≥ VDC;between 1.
  • Page 7 pid controller 6.2 Set Value Setting 6 Display the status and basic operation In the basic display state, press key can directly modify the given value. The basic display state 6.3 “At”PID Parameter auto-tuning Press and hold for 2 seconds, the At parameter appears, "At"...
  • Page 8 pid controller 8. default settings. CntL Control onoF: on-off control. For situation not requiring high precision. onoF mode FPId: advanced artificial intelligence ”FUZZY PID“ control. FPId factory setting factory setting factory setting Parameter code Parameter code Parameter code orEv Selection of onr: Reverse acting.

  • Page 9: Unit Operation

    There are several videos available online on the NugSmasher® social Instagram account as well as the NugSmasher® YouTube channel that are very beneficial for techniques and tips of your rosin extraction. Note the leverage designed with your pump handle is only designed for hand operation.
  • Page 10 NugSmasher® extraction bags, are recommended for optimal yield and clean quality rosin. Our bags are hand-made and packaged in the USA! NugSmasher® extraction bags are specially designed to work with the weight of fresh cured flower and are labeled accordingly at: 3.5 g (1.1g-3.5g), 7 g (3.6g-7g) and 14 g (7.1g-14g). This assumes the bags are loaded (BTS) or bottle/barrel-tech style (upright so that you end up with the round coin like puck once fully pressed).

  • Page 11: Pressure System

    (Gauge PSI Reading) surface area to achieve optimum results. Surface Area Key NugSmasher® XP Consistency Chart PSI to Surface Area Bag Selection NugSmasher® extraction bags, our bags are recommended or optimal yield and clean quality rosin. NugSmasher® extraction PSI ON Material...
  • Page 12 (1.77in 3.5g bag) it would equal 577 PSI on for each 3.5g bag) you would need your gauge. 1154 PSI on your gauge. top plate view: For all the XP configurations use the calculator tool at, NugSmasher.com/tools NS022219 Version 2.0...

  • Page 13: Notice

    The same shall also apply to the case even if NugSmasher® had been notified of the possibility of arising damages in advance. As an example, we shall not be liable for any loss of material made using this product or indirect damages caused by the product.

  • Page 14: Safety

    Safety • Keep away from children, pets and clothing. • Never leave the extractor on when you go to sleep or leave the area. • Never use or store flammable liquids (such as gasoline) around the extractor. The flammable vapors can flow from one part of the room to another and be ignited by an electrical spark.
  • Page 15 rosin made simple...
