Summary of Contents for Hans Grohe Logis 71222007

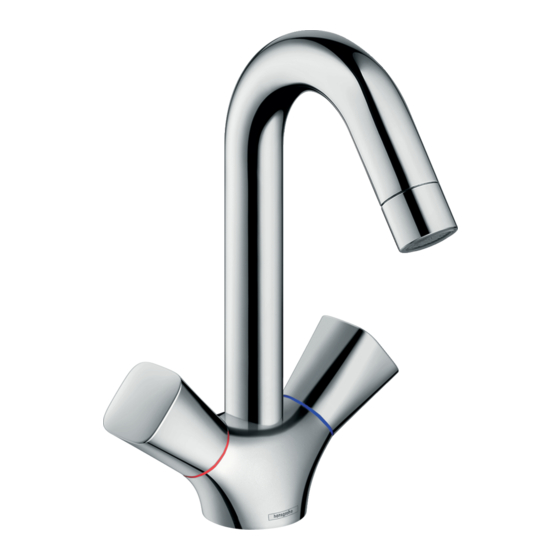

- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / assembly instructions Logis 71222007...
- Page 2 中文 安全技巧 符号说明 装配时为避免挤压和切割受伤，必须戴上手 请勿使用含有乙酸的硅胶！ 套。 淋浴系统只允许作为洗浴、卫生和洁身之用。 操作 (参见第页 7) 冷热水管间过大的压力差必须予以平衡。 汉斯格雅建议，清晨或在水流长时间停 安装提示 滞后，前半升水不作饮用水使用。 • 安装前必须检查产品是否受到运输损害。 安装 后将不认可运输损害或表面损伤。 • 管道和阀门必须根据通用标准进行安装、冲洗 大小 (参见第页 10) 和检查。 • 请遵守当地国家现行的安装规定。 流量示意图 (参见第页 10) • 只能按规定使用溢流阀。禁止将半露柱及其他部 件固定到溢流阀上。 ® 带有 EcoSmart • 如果使用即热式热水器时出现问题，或要求更大 ® 无 EcoSmart ® 的水流量，可以把位于水波器后面的 EcoSmart （流量限制器）拆除。 清洗 (参见第页 8) 技术参数 备用零件 (参见第页 11) ® 本龙头配有 EcoSmart （流量限制器） 1 MPa 工作压强： 最大...
-
Page 3: Safety Notes
English Safety Notes Symbol description Gloves should be worn during installation to prevent Do not use silicone containing acetic acid! crushing and cutting injuries. The shower system may only be used for bathing, Operation (see page 7) hygienic and body cleaning purposes. The hot and cold supplies must be of equal pres- Hansgrohe recommends not to use as drink- sures. ing water the first half liter of water drawn in the morning or after a prolonged period Installation Instructions of non-use. Dimensions (see page 10) • Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured. Flow diagram • The pipes and the fixture must be installed, flushed (see page 10) and tested as per the applicable standards. with EcoSmart ® • The plumbing codes applicable in the respective without EcoSmart ® countries must be oberserved. • The drain valve must only be used as intended. It is not Cleaning (see page 8) allowed to attach other objects to the drain valve, for example a semi-pedestal. Spare parts (see page 11) • If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart ® (flow limiter) located behind the aerator can be Special accessories (order as an removed. - Page 4 98996000 (7 Nm) SW 10 mm SW 24 mm (8 Nm)
- Page 5 58085000 max. 7 Nm 58085000 max. 7 Nm...
- Page 6 (50 Ncm) > 2 min...
- Page 7 开 / open 关 / close 热 / hot 冷 / cold...
- Page 8 Reinigung Reinigung 中文 汉斯格雅产品的清洁建议 表面损坏的部件必须更换，否则会有受伤 的危险。 现代的卫浴龙头、厨房龙头、花洒、配件、盥洗 台、浴盆和加热器采用的制造材料非常迥异，以适 应产品外形设计和使用功能的市场需求。 不按规定进行清洁而造成的任何损坏不在本公司产 为了避免产品损坏和由此引发的投诉及争议，必须 品保修范围之内。 在使用和清洁产品时遵循有关规程。 QuickClean 在保养汉斯格雅产品时，原则上必须注意： 有了QuickClean，手工清洁功能，要去掉喷头上的 水垢，只需简单地搓除即可。 • 只能使用那些有明确注明是适用于本产品的清 洁剂。 担保 • 不允许使用含有盐酸、蚁酸、氯漂或醋酸的清 洁剂，因为这些清洁剂会给产品表面造成严重的 Hansgrohe 向用户保证，该产品无制造 缺陷。如果 损伤。 自购买之日起五年内出现缺 陷，Hansgrohe 将免费 • 含磷酸的清洁剂必须在特定条件下使用。 排除。 保证条件和详 情见 www.hansgrohe-int.com/ guarantee。 在提 出保修的权利时请联系您的合同 • 不允许将两种以上清洁剂混合使用。 方。本保证 不涉及有关国家法律规定的消费权 • 不允许使用具有研磨作用的清洁工具和设备，如 不适合的清洁粉末、海绵垫或超细麦克布。 • 必须严格遵守清洁剂生产厂商的使用说明。 • 严格遵守清洁剂的用量和作用时间，决不允许清 洁剂的作用时间长于规定值。 • 定期的清洁以预防水垢。 • 不允许将清洁剂直接喷射到汉斯格雅产品上，因 为喷雾会进入汉斯格雅产品的开口部分和缝隙中 而造成损害。首先将清洁剂喷在软布上，再用软 布进行清洁。 • 清洁之后必须用足够的清水冲洗，以彻底去除残...
-
Page 9: Warranty
Reinigung English Cleaning Recommendation for under the products, for example in a vanity unit, as the vapours may damage the products. Hansgrohe Products The damage of already damaged surfaces will Today, modern sanitary and kitchen tapware, showers, deteriorate under the effect of the cleansers. accessories, washstands, tubs and radiators consist of Components with damaged surfaces very different materials to comply with the needs of the must be exchanged, otherwise there market with regard to design and functionality. could be an injury danger. To avoid damage and reclamations, it is necessary to consider certain criteria when cleaning. Damage caused by improper treatment will not be With regard to caring for the covered by our guarantee. Hansgrohe products, the following QuickClean must in principle be heeded: The QuickClean cleaning function only needs a small • Only use cleaning material which is explicitly provided manual rub over to remove the lime scale from the spray for this type of application. channels. • Never use cleaning materials, which contain Warranty hydrochloric acid, formic acid, chlorine pale lye or acetic acid, as they cause considerable damage. Hansgrohe guarantees to the consumer that this product • Phosphorus acidic cleaners are only conditionally is free of production faults. If evertheless any defect applicable. is detected within 5 years from date of purchase, Hansgrohe will remedy this defect free of charge. You • Mixing cleaning agents is not permitted, generally. will find the conditions and details of this guarantee • Never use cleaning materials or appliances with an at www.hansgrohe-int.com/guarantee. Please contact abrasive effect, such as unsuitable cleaning powders,... - Page 10 Logis 71222007 15 6 Ø 2 5 14 5 92168007 Ø Ø 3 4 Ø G 1 ¼ 19 3 G 1 / 2 Logis 71222007 EcoSmart ® EcoSmart ®...
- Page 11 Logis 71222007 96521000 92376000 92646000 98189000 (14x2,5) 92221000 EcoSmart ® 94009000 SW 17 mm 94184000 92225000 98422000 (7x1,5) 97736000 96657000 98722000 96016000 (M8) 97443000 92168007...
- Page 12 Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
