Summary of Contents for Rotenso DAGA
- Page 1 DAGA wireless controller DAGA User manual Wireless controller User manual...
-
Page 2: Table Of Contents
DAGA wireless controller DAGA WIRELESS CONTROLLER User manual Content PRECAUTIONS ....................................3 PART 1. GENERAL INFORMATION ............................4 Remote controller buttons ................................4 Remote controller display ................................5 Replacement of Batteries ................................6 PART 2. FUNCTION DESCRIPTION ........................ 8 „SWING” control of the air flow ..............................8 Cooling mode ......................................9... -
Page 3: Precautions
DAGA wireless controller PRECAUTIONS WARNING Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or serious injury. -
Page 4: Part 1. General Information

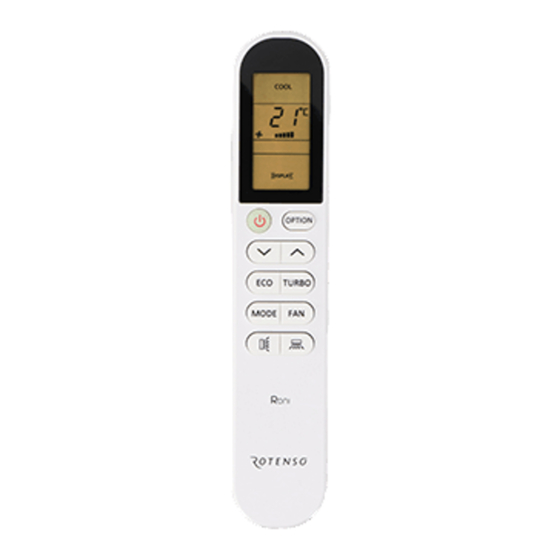

DAGA wireless controller PART 1. GENERAL INFORMATION 1. REMOTE CONTROLLER BUTTONS Pic. 9 Button Function To turn on or off the air conditioner. OPTION To activate or deactivate optional function (Check below table). To decrease temperature, time setting or choose the function. -
Page 5: Remote Controller Display
DAGA wireless controller PART 1. GENERAL INFORMATION ON/OFF Mode Function AUTO CLEAN, TIMER, DISPLAY, HEALTH, I FEEL, 8°CH COOL CLEAN, TIMER, DISPLAY, HEALTH, SLEEP, MILDEW, I FEEL, 8°CH CLEAN, TIMER, DISPLAY, HEALTH, MILDEW, I FEEL, 8°CH CLEAN, TIMER, DISPLAY, HEALTH, I FEEL, 8°CH HEAT CLEAN, TIMER, DISPLAY, HEALTH, SLEEP, I FEEL, 8°CH... -
Page 6: Replacement Of Batteries
DAGA wireless controller PART 1. GENERAL INFORMATION Symbols Meaning Optional functions indicator CAUTION You will hear a beep when you press the following buttons or select the following optional functions, though the actual model haven't this function, we express our apologies:... - Page 7 DAGA wireless controller PART 1. GENERAL INFORMATION • When you insert the batteries for the first time in the remote controller or if you change them, you can program the temperature display switchover function between °C and °F. 1. Long press TURBO button over 5s to get into the change mode within 3minutes;...
-
Page 8: Part 2. Function Description
DAGA wireless controller PART 2. FUNCTION DESCRIPTION Filter The air sucked by the fan enters from the grill and passes through the filter, then it is cooled/dehumidified or heat- ed through the heat exchanger. The direction of the air outlet is motorized up and down... -
Page 9: Cooling Mode
DAGA wireless controller PART 2. FUNCTION DESCRIPTION 2. COOLING MODE The cooling function allows the air conditioner to cool the room and at the same time reduces Air humidity. To activate the cooling function (COOL), press the MODE button until the symbol COOL appears on the display. -
Page 10: Timer Function
DAGA wireless controller PART 2. FUNCTION DESCRIPTION 5. TIMER FUNCTION To set the automatic switch-on /off of the air conditioner. Timer setting/change/cancel: 1. Press OPTION at the first time, select the TIMER by pressing the button or until symbol TIMER is flashing;... -
Page 11: Auto Mode
DAGA wireless controller PART 2. FUNCTION DESCRIPTION 7. AUTO MODE To activate the AUTO (automatic) mode of operation, press MODE button on the remote controller until the symbol AUTO appears on the display. In AUTO mode the fan speed and the temperature are set... -
Page 12: Display Function (Indoor Display)
DAGA wireless controller PART 2. FUNCTION DESCRIPTION 10. DISPLAY FUNCTION (INDOOR DISPLAY) Switch on/off the LED display on panel Press OPTION at the first time , select the DISPLAY by press- ing the button or until symbol DISPLAY is flashing;... -
Page 13: Self-Clean Function
DAGA wireless controller PART 2. FUNCTION DESCRIPTION 13. SELF-CLEAN FUNCTION Press OPTION at the first time, select the CLEAN by press- ing the button or until symbol CLEAN is flashing; Press OPTION again to activate the CLEAN function, and appears on the display. -
Page 14: 8° Heating Function (Optional)
DAGA wireless controller PART 2. FUNCTION DESCRIPTION 15. 8° HEATING FUNCTION (OPTIONAL) It can be set in COOL/HEAT/DRY/FAN/AUTO mode, but you need to turn off the unit to activate it. Press OPTION at the first time, select the 8°CH by pressing the button or until symbol 8°CH is flashing;... - Page 15 DAGA wireless controller NOTES ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................User manual...
- Page 16 DAGA wireless controller www.rotenso.com email: info@rotenso.com Pieczęć instalatora User manual...
