Summary of Contents for RTI SKL1200

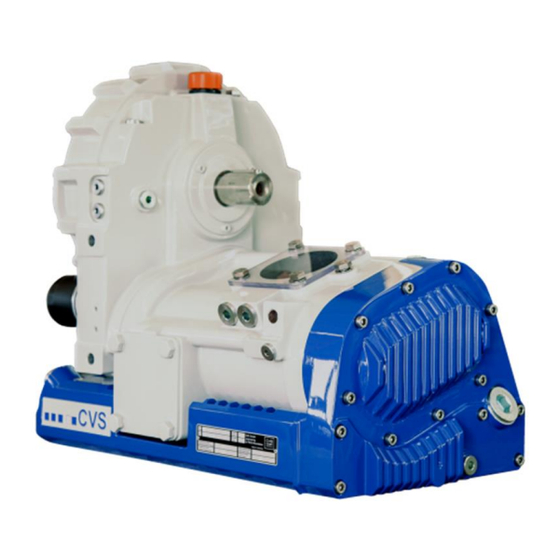

- Page 1 INSTRUCTION AND OPERATING MANUAL Compressor installation SKL1200 direct driven...
- Page 2 Preface This instruction and operating manual is required for compressor installations manufactured by the follow ing company: RTI Transport Installaties B.V. Albert Schw eitzerstraat 29 7131 PG Lichtenvoorde Tel. + 31 (0)544-377050 The manual provides information about the follow ing installation:...
-
Page 3: Table Of Contents
General Qualification and training personnel Operating safety-conscious Safety instructions operator Modifications and repairing spare parts Modifications installation Mounting installation Mounting inst ructions RTI installation direct driven Start-up Maintenance installation Inspection during operation Weekly inspection Monthly inspection Half-yearly inspection Maintenance checklist - page 3 of 13 –... -
Page 4: General
Telephone number: (0031) 544-377050 Fax: (0031) 544-376499 Email: info@rti.nl Service facilities For addresses of service/technical support facilities, please visit our w ebsite www.rti.nl Technical data compressors - page 4 of 13 – Instruction and operating manual CVS SKL1200 direct driven (for-030/031013) -
Page 5: Oil Cooler
Oil cooler A CVS SKL1200 is equipped w ith an oil-cooler. It is very important to keep the oil-cooler clean to prevent overheating of the compressor. Observe the safety very carefully, the enclosure must be removed and rotating parts will be accessible. -
Page 6: Safety
Using foreign spare parts and accessories may entail the loss of any liability for the consequences arising therefrom. Modifications installation Without approval from RTI, it is not permitted to make any alterations to the installation. - page 6 of 13 – Instruction and operating manual CVS... -
Page 7: Mounting Installation
The vacuum valve has not been set w hen the installation is delivered as a building kit (w ithout mounting by RTI). - page 7 of 13 –... -
Page 8: Start-Up
The rotors of the compressor are sprayed w ith an anti-corrosion agent prior to delivery. During the initial operation this agent w ill evaporate as the compressor heats up. Since the RTI-installations are all tested a few minutes, the anti-corrosion agent on the rotors w ill have evaporated. -
Page 9: Maintenance Installation
This check may only be carried out by skilled mechanics. Observe the safety very carefully, the enclosure must be removed and rotating parts will be accessible. - page 9 of 13 – Instruction and operating manual CVS SKL1200 direct driven (for-030/031013) -
Page 10: Weekly Inspection
Check the functioning of the fan. Check if the control light is on (image 3.1.2). You w ill find the safety fuse in the sw itch box. - page 10 of 13 – Instruction and operating manual CVS SKL1200 direct driven (for-030/031013) -
Page 11: Monthly Inspection
Check flanges/packing, rubber compensators etc. in the enclosure for air leakages to avoid loosening of the insulation material and overheating. Check the functioning of the fan. - page 11 of 13 – Instruction and operating manual CVS SKL1200 direct driven (for-030/031013) -
Page 12: Halfyearly Inspection
Maintenance/inspection list Along w ith every maintenance inspection the maintenance checklist on the next page must be filled out. We recommend sending the checklist to RTI after filling it out. Mail: info@rti.nl Fax: (0031) 544-376499 Hold on to the checklist, the checklist can be handed to the mechanic w hen the next maintenance service is due or w hen the installation needs to be repaired. -
Page 13: Maintenance Checklist
O -- Check pressure valve for 2.5 bar O -- Check functioning of indicators O -- Check the engine for unusual sounds O -- Clean the w indow pane - page 13 of 13 – Instruction and operating manual CVS SKL1200 direct driven (for-030/031013)
