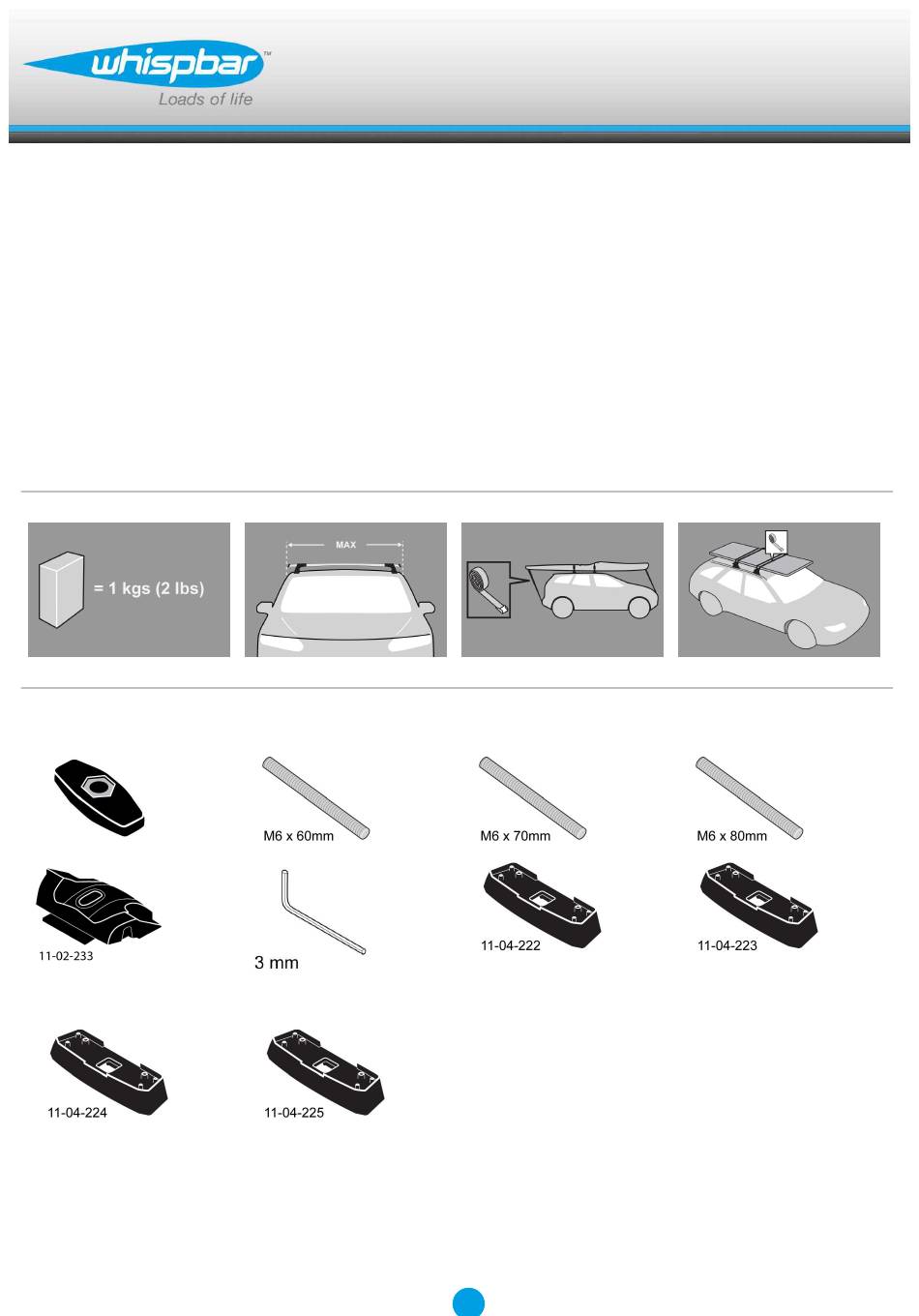

- Page 1 K618W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
- Page 2 Fitting Kit K618W MAX kgs (lbs) Subaru Levorg, 5dr Estate 15-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Levorg, 5dr Wagon Jun 16-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Levorg, 5dr Wagon Jun 16-+ 75 kgs (165 lbs)
- Page 3 Fitting Kit K618W Levorg, 5dr Estate 15-+ (EU) -275mm 450mm 905mm 850mm -10 -13/16ths" 17 11/16ths" 35 5/8ths" 33 7/16ths" Levorg, 5dr Wagon Jun 16-+ (AU) -275mm 450mm 905mm 850mm -10 -13/16ths" 17 11/16ths" 35 5/8ths" 33 7/16ths" Levorg, 5dr Wagon Jun 16-+ (NZ)
- Page 4 Fitting Kit K618W Stilo, 5dr Hatch 01-07 (CN) -350mm 480mm 935mm 865mm -13 -3/4ths" 18 7/8ths" 36 13/16ths" 34 1/16ths"...
-
Page 5: First Time Installation
Fitting Kit K618W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K618W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 7 Fitting Kit K618W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K618W Fitment NOTE: Fiat Panda only Open or remove fixed-point covers. Open or remove fixed-point covers. Sort M6 grubscrews into lengths. A = Fiat Stilo, Subaru Levorg REAR B = Fiat Panda, Subaru Levorg FRONT C = Not applicable unless advised...

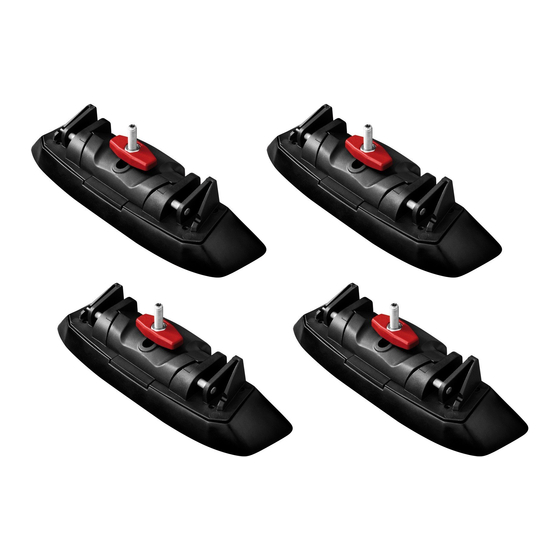

- Page 9 Fitting Kit K618W Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions. Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle.
- Page 10 Fitting Kit K618W NOTE: Fiat Panda only Place pad over grubscrew. Ensure the fixed-point covers sit vertically in the recess in the pads. Place crossbars on pads ensuring the pads fit into the holes underneath the foot and the grubscrew passes through the hole in the foot.
- Page 11 Fitting Kit K618W Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions. Check crossbar is securely attached to the vehicle.
- Page 12 Fitting Kit K618W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 13: Maintenance
Fitting Kit K618W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 14 Fitting Kit K618W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 15: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 16 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
