Ambient Weather Weather Mount Installation Manual

Ambient Weather WeatherMount Installation Manual
Components
The WeatherMount assembly includes the following components:
Tools and Materials Needed

Level or Plumb

Drill

Adjustable wrench
Ambient Weather
6845 W. Frye Road
Chandler, AZ 85226
TEL 480-346-3380  FAX 480-346-3381
www.AmbientWeather.com
The Ambient Weather WeatherMount is a
flexible mounting alternative to a mounting pole
or tripod. The mounting plate provides a fast
and easy installation, and can be mounted on a
pitched surface, flat roof or vertical surface,
such as a gable.
The WeatherMount is constructed from powder
coated steel and includes a galvanized
aluminum mast. This mounting system is strong,
durable and stable. The slender design is simple,
unobtrusive and aesthetically pleasing. The base
can be adjusted to mount on any pitched roof.
Works great with any weather station.
The small base footprint 4-3/4" W x 7" H
(mounting point foot print 3.75" x 6") allows
four lag screws (included) to be easily mounted
at the apex of your gable. The mount angles 11"
in the horizontal direction to allow clearance of
eve or roof overhangs. Out of the box, the
overall height is approx. 49".
Add one or more mast extensions (EZ-125-
35M) to increase the height of the mounting
assembly by 35" per mast (reference the "May
we also suggest" section below).

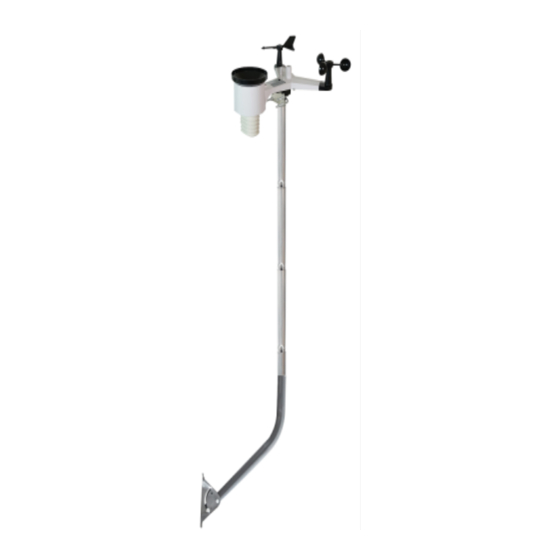

The weather station pictured is not included.
Figure 1
Figure 2
Page 1
1 J-pipe
1 Mounting braket
1 Carriage bolt
1 7/16" Hex bolt
2 7/16" Hex lock nuts
4 Lag Screws
2 Tar Pads
