Dell Dimension 2350 Owner's Manual

Dell dimension 2350: owners manual.
Hide thumbs

Advertisement

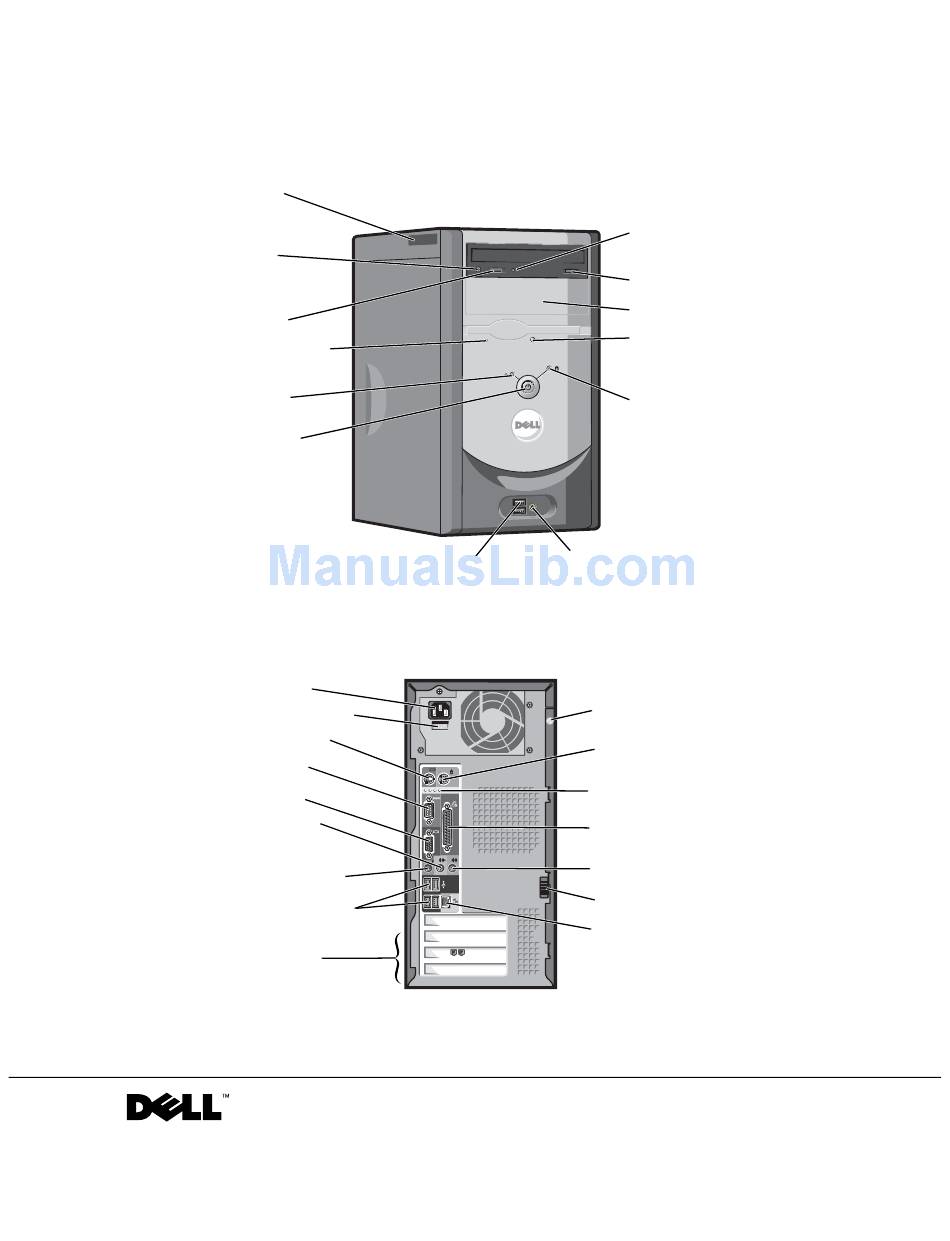

Dell™ Dimension™ 2350 Series
service tag
CD or DVD
headphone
connector
CD or DVD
volume
control dial
floppy drive light*
power light
power button
power connector
voltage selection switch
keyboard connector
serial connector
video connector
line-out connector
microphone connector
USB 2.0 connectors (4)
PCI card slots (3)
USB 2.0 connectors (2)
*On computers with an optional floppy drive.
*Your computer may not have a cover
thumbscrew or a cover latch.
w w w . d e l l . c o m | s u p p o r t . d e l l . c o m
CD or DVD drive
activity light
CD or DVD eject button
second bay for optional drive
floppy drive eject button*
hard-drive activity light
headphone connector
cover thumbscrew*
mouse connector
diagnostic lights (4)
parallel connector
line-in connector
cover latch*
network adapter
connector
