Operating Instructions

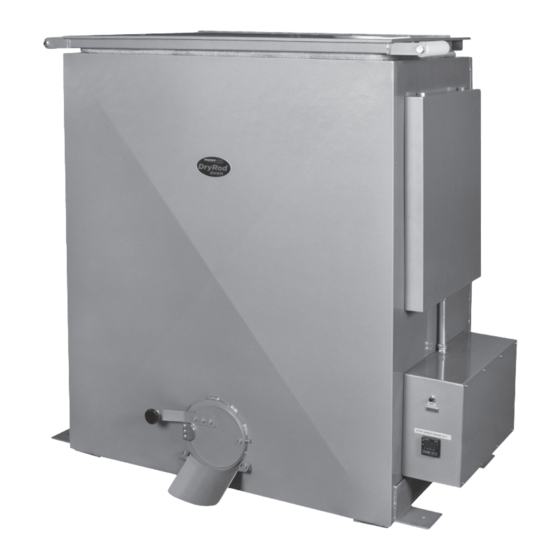

Type 750HT
Flux Rebaking Ovens
• Variable high temperature allows for rebaking and reconditioning of flux
• Programmable temperature profile with digital display
Part No.
Description
Type 750HT Series Ovens
1201802
3/240V AC at 6000 watts
1201801
3/480V AC at 6000 watts
* Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70
Ovens
Temperature Range*
Insulation
100
°
- 800
°
F
(38
°
- 425
°
C) +/-25
°
F (14
°
C)
4"
fiberglass
with programmable digital
controller
dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International
Capacity
Chamber Size
(for 18" electrodes)
8.6 cubic feet
680 lb (308 kg) of
(0.24 cubic meters)
granulated flux
hopper
°
F ambient temperature.
Weight
Dimensions
740 lb
63" x 38" x 58"
(336 kg)
(160.0 x 96.5 x 147.3 cm)
