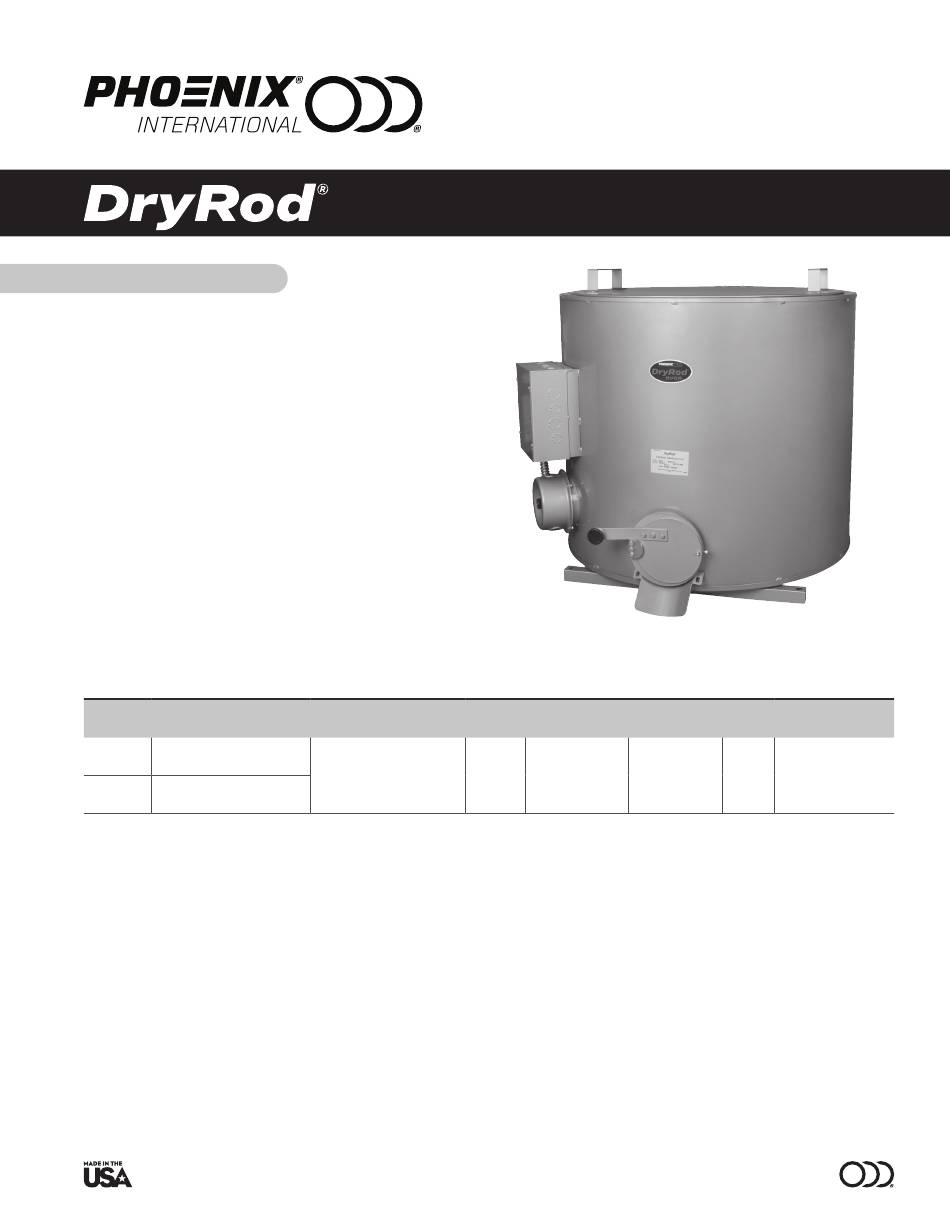

Operating Instructions

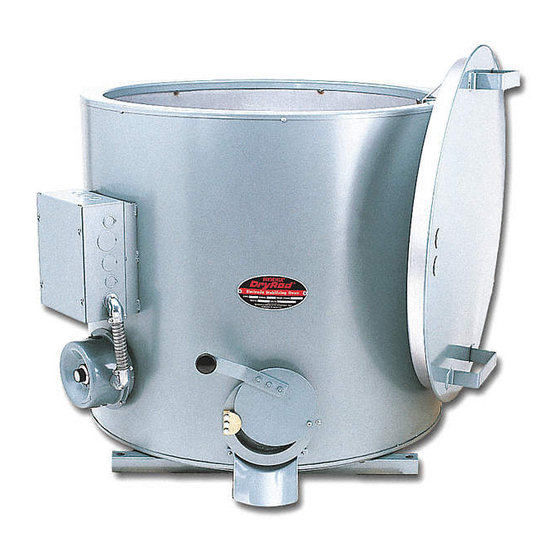

Type 950FX Series
Flux Stabilization Ovens
• Adjustable thermostatic control
• Dispensing gate valve enables easy handling of hot flux
Part No.
Description
Type 950FX Series Ovens
1200605
3/240V AC at 3000 watts
1200604
3/480V AC at 3000 watts
* Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70
Ovens
Temperature Range*
Insulation
100
- 450
F
°
°
(38
- 232
C) +/-25
F (14
C)
°
°
°
°
fiberglass
adjustable thermostat control
with indicator light
dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International
Capacity
Chamber Size
(for 18" electrodes)
6.5 cubic feet
2"
600 lb (272 kg)
(0.18 cubic meters)
granulated flux
hopper
F ambient temperature.
°
Weight
Dimensions
375 lb
43" x 43" x 45"
(170 kg)
(109.2 x 109.2 x 114.3 cm)
Advertisement
Table of Contents
Related Manuals for Phoenix DryRod 950FX Series
Summary of Contents for Phoenix DryRod 950FX Series
- Page 1 3/480V AC at 3000 watts with indicator light * Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70 F ambient temperature. ° dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
-
Page 2: Product Description
Phoenix's Guide To Electrode and Flux Stabilization for approximate temperatures, found at www.dryrod.com/guide. Ovens operating on 240 AC voltage draw 12.5 amps. Those ovens operating on 480 AC voltage draw 6.25 amps. Phoenix International 8711 West Port Avenue Milwaukee, WI 53224 +1 414.973.3400 info@dryrod.com dryrod.com... -
Page 3: Troubleshooting
For normal daily operation, the following spare parts and quantities are recommended to have inventoried. Recommended Quantity Item No. Spare Part Description Part No. per 10 Ovens Heating Element Kit (240/480V) 1257144 Thermostat Kit (240/480V) 1253800 dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International... -
Page 4: Replacement Parts
240V model Valve Kit 1257153 Trough Assembly Gate Assembly Gate Cam Plastic Hand Knob (with stud) Lead Kit 1257125 leads T1, T2 & T3 from contactor to elements Phoenix International 8711 West Port Avenue Milwaukee, WI 53224 +1 414.973.3400 info@dryrod.com dryrod.com... - Page 5 • Hot Surfaces! Use extreme care to avoid possible burns or personal protective equipment is recommended. Wiring Diagram for Wiring Diagram for Type 950FX Series 240V Type 950FX Series 480V to contactor to contactor dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
-
Page 6: Warranty
Warranty Phoenix Ovens International LLC warrants its products against defects in material and workmanship. The company will, at its discretion, repair or replace any properly installed Phoenix International manufactured product which fails under normal operating conditions within one year from date of receipt. Contact the factory for return authorization before returning the product to Phoenix International freight prepaid.
