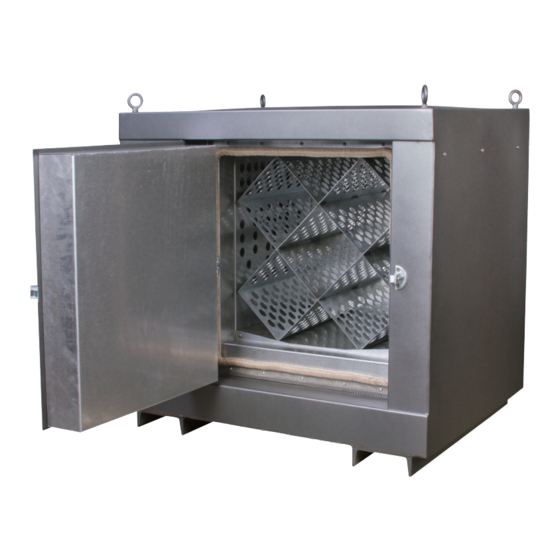

Type 40HT
Electrode Rebaking Ovens
• Variable high temperature allows rebaking and reconditioning of electrodes
• Programmable controller allows for customized temperature profiles
• Digital temperature display
• Rugged steel construction provides durability in the field
Part No.
Description
Type 40HT Series Ovens
1204402
1/240V AC at 4500 watts
1204400
3/480V AC at 4500 watts
* Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70
Ovens
Temperature Range*
100
- 800
F
°
°
(38
- 425
C) +/-25
F (14
C)
°
°
°
°
with programmable
digital controller
dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International
Capacity
Insulation Chamber Size
(for 18" electrodes)
5"
19.5" x 20" x 21"
400 lb (181 kg)
fiberglass
F ambient temperature.
°
Weight
Dimensions
384 lb
35" x 36" x 30"
(174 kg)
(88.9 x 91.4 x 76.2 cm)
Advertisement
Table of Contents
Related Manuals for Phoenix DryRod 40HT
Summary of Contents for Phoenix DryRod 40HT
- Page 1 3/480V AC at 4500 watts digital controller * Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70 F ambient temperature. ° dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
- Page 2 If the settings are lost for some reason, contact Phoenix International for the PID The 40HT ovens have a grounding terminal block in the side control panel. The Controller Original Factory Setting Guide.
- Page 3 Item No. Spare Part Description Part No. per 10 Ovens Heating Element Kit (480V) 1250210 Heating Element Kit (240V) 1250201 Controller 1250204 Main Temperature Probe Kit 1250204 High Limit Switch 1250203 dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
- Page 4 The following set of functions deal with RS-485 communications and can be found in the controller operating manual. For the full controller manual please contact Phoenix International. Phoenix International 8711 West Port Avenue Milwaukee, WI 53224 +1 414.973.3400 info@dryrod.com dryrod.com...
- Page 5 Circuit Breaker 1250216 1250219 High Limit Switch Kit 1250203 1250203 Main Temperature Probe Kit 1250204 1250204 Contactor 5 Controller Kit 6 Hinge Kit 7 Door Latch Kit dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
- Page 6 Warranty Phoenix Ovens International LLC warrants its products against defects in material and workmanship. The company will, at its discretion, repair or replace any properly installed Phoenix International manufactured product which fails under normal operating conditions within one year from date of receipt. Contact the factory for return authorization before returning the product to Phoenix International freight prepaid.
