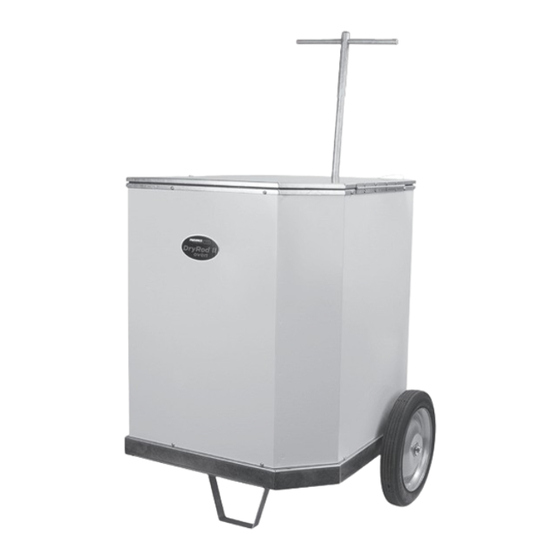

Phoenix DryRod II Type 15 Series Operating Instructions Manual

Operating Instructions
Type 15 Series
Electrode Stabilization Ovens
• External adjustable thermostat
• Optional digital thermometer
Compliances:
Part No. Description
Type 15 Series Ovens - Portable Model
1205532 120/240V AC at 600 watts
120/240V AC at 600 watts
1205530
with digital thermometer
1215532 120/240V AC at 600 watts
120/240V AC at 600 watts
1215530
with digital thermometer
1225532 120/240V AC at 600 watts
120/240V AC at 600 watts
1225530
with digital thermometer
Type 15 Series Ovens - Bench Model
1205533 120/240V AC at 600 watts
120/240V AC at 600 watts
1205531
with digital thermometer
1215533 120/240V AC at 600 watts
120/240V AC at 600 watts
1215531
with digital thermometer
1225533 120/240V AC at 600 watts
120/240V AC at 600 watts
1225531
with digital thermometer
* Operation on direct current (DC) will damage oven and void warranty. Average stabilized termperature at 70
Ovens
Temperature
Power Cord Range*
North American
100 ° - 300 °
(38 ° - 149 ° C) +/-
25 ° F (14 ° C)
European/Schuko
adjustable
thermostat
United Kingdom
North American
100 - 300
° °
(38 - 149 C) +/-
° °
25 ° F (14 ° C)
European/Schuko
adjustable
thermostat
United Kingdom
dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International
Chamber
Insulation Size
(for 18" electrodes)
F
1.5" 14" diameter
150 lb (70 kg)
fiberglass x 19.75" deep
F
1.5" 14" diameter
150 lb (70 kg)
fiberglass x 19.75" deep
F ambient temperature.
°
Capacity
Weight Dimensions
80 lb 19.75" x 21.75" x 28"
(36 kg) (50.2 x 55.2 x 71.1 cm)
64 lb 22.25" x 17.5" x 20.5"
(29 kg) (56.5 x 44.5 x 52.1 cm)
