Operating Instructions
Type 300 Series

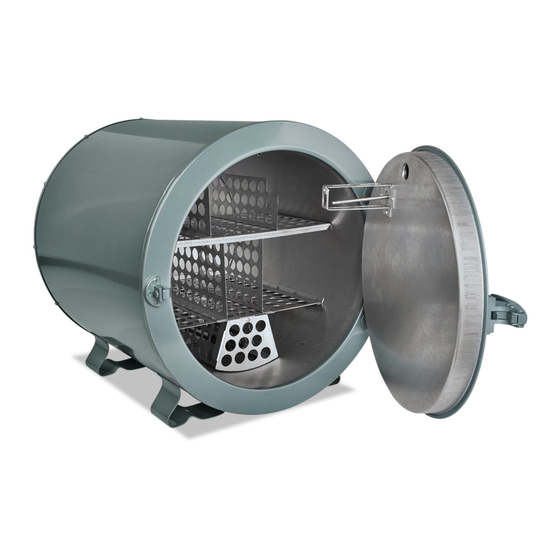

Electrode Stabilization Ovens
• Bench models provide large capacity storage for electrodes
• Door mounted thermometer offered for instant temperature indication
• Adjustable thermostatic control
• Single action door latch easily closes and can be locked
• Shelving provides fit for 50 lb cans
Compliances:
Part No. Description
Type 300 Series Ovens with 10"
grounded heavy duty cord**
1200200 120/240V AC at 1000 watts
1200100 240/480V AC at 1000 watts
1200201 120/240V AC at 1000 watts
1200101 240/480V AC at 1000 watts
1200202 120/240V AC at 1000 watts
1200102 240/480V AC at 1000 watts
1200203 120/240V AC at 1000 watts
1200103 240/480V AC at 1000 watts
* Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70
** 240/480V models with 10" grounded heavy duty cord does not included plug
Ovens
Temperature
Options Range*
none
100 - 550 F
° °
with door mounted
(38 - 288 C) +/-
° °
thermometer installed
25 ° F (14 ° C)
adjustable
thermostat
wtih top stacking lugs
control with
installed
indicator light
with door mounted
thermometer and top
stacking lugs installed
dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International
Capacity
Insulation Chamber Size
(for 18" electrodes)
400 lb (182 kg)
2" 18" diameter
accepts electrodes
fiberglass x 19" deep
up to 18"
F ambient temperature.
°
Weight Dimensions
90 lb
29.5" x 22.5" x 22.5"
(41 kg)
