MAXI-FLO

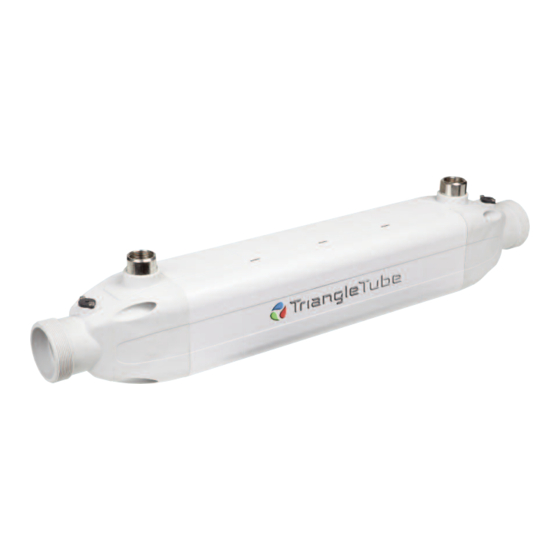

TITANIUM HEAT EXCHANGER FOR SWIMMING POOLS & SPAS
INSTALLATION AND MAINTENANCE MANUAL
Before proceeding with installation and operation, read entire manual carefully. Failure
WARNING
to do so can cause injury or property damage.
Warranty Registration Card must be filled out by the customer and mailed within thir-
NOTI E
ty (30) days of installation in order to gain warranty coverage.
When receiving a Triangle Tube product, any claims for damage or shortage in ship-
ment must be filed immediately against the transportation company by the consignee.
Leave all documentation received with owner for future reference.
07/03/13
MF 350 PT Series
®
2012-47 MF-350PT Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TriangleTube MAXI-FLO MF 350 PT Series
Summary of Contents for TriangleTube MAXI-FLO MF 350 PT Series
- Page 1 ® MAXI-FLO MF 350 PT Series TITANIUM HEAT EXCHANGER FOR SWIMMING POOLS & SPAS INSTALLATION AND MAINTENANCE MANUAL Before proceeding with installation and operation, read entire manual carefully. Failure WARNING to do so can cause injury or property damage. Warranty Registration Card must be filled out by the customer and mailed within thir- NOTI E ty (30) days of installation in order to gain warranty coverage.
-
Page 2: Table Of Contents
Table of Contents PRODUCT & SAFETY INFORMATION INSTALLATION Code Compliance........... 2 Locating the Maxi-Flo Heat Exchanger . - Page 3 Product & Safety Information DANGER WARNING Prolonged Immersion May Cause Hypothermia When using this equipment, basic safety precautions Hypothermia occurs when the internal temperature should always be followed, including the following: of the body reaches a level several degrees above the normal body temperature of 98.6ºF.
-
Page 4: Code Compliance
Installation CODE COMPLIANCE WARNING High chemical concentrations from improperly Maxi-Flo Heat Exchanger installation must conform with adjusted feeders and chlorinators can cause rapid the instructions in this manual and where applicable: corrosion to the heat exchanger. Bypassing the heat • Local, state, provincial, and national codes, exchanger, is recommended, prior to stabilization of laws, regulations and ordinances. -
Page 5: General Piping
Installation GENERAL PIPING MAXI-FLO WIRING • Typical pool or spa piping is plumbed as follows CAUTION (see Figure 1 page5): Electrical shock hazard. Can cause severe personal Inlet of the filter is piped directly to the dis- injury, death or substantial property damage. charge side of the filter pump. -
Page 6: Corrosion
Installation SPRING AND FALL OPERATION WARNING Not maintaining proper water chemistry levels as During cold periods (those above freezing weather) listed in the Operating Restrictions section can cause maintain a minimum temperature setting (65ºF to 70ºF) damage to the heat exchanger and void any warran- for periodic usage. - Page 7 Installation...
- Page 8 Installation...
- Page 9 Specification & Dimensions Thermal Output Maxi-Flo 350PT Steel Heat Exchangers Hot Water Flow Cold Water Flow Thermal Model Weight Output (lbs) (MBH) Pressure Drop Pressure Drop MF-350 PT 31” (783) 1” NPT 22 1/4” (566) Boiler 2” PVC Socket Pool 37”...
- Page 10 Self cleaning and self descaling Computerized sizing available from Triangle Tube/Phase III Available in capacities from 25,000 BTU/hr to 5,000,000 BTU/hr 1 Triangle Lane - Blackwood, NJ 08012 Tel: (856) 228 8881 - Fax: (856) 228 3584 E-mail: Sales@triangletube.com...
