MAXI-FLO
STAINLESS STEEL AND TITANIUM
HEAT EXCHANGER FOR SWIMMING POOLS & SPAS
INSTALLATION AND MAINTENANCE MANUAL
Before proceeding with installation and operation, read entire manual carefully. Failure
WARNING
to do so can cause injury or property damage.
Warranty Registration Card must be filled out by the customer and mailed within thir-
NOTI E
ty (30) days of installation in order to gain warranty coverage.
When receiving a Triangle Tube product, any claims for damage or shortage in ship-
ment must be filed immediately against the transportation company by the consignee.
Leave all documentation received with owner for future reference.
2009-59 MF Manual
Revised 07/19/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

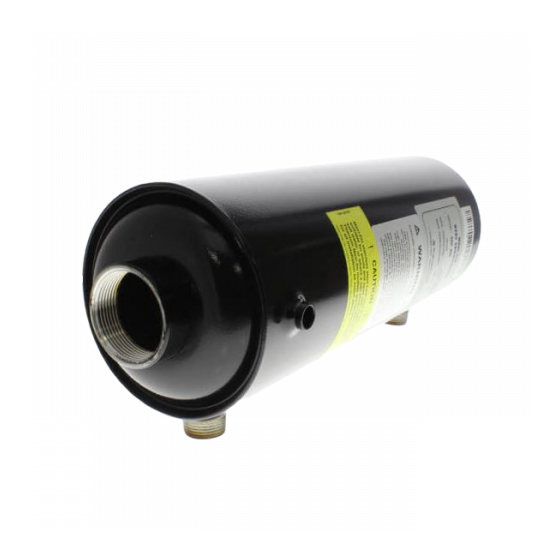

Related Manuals for TriangleTube MAXI-FLO MF-135
Summary of Contents for TriangleTube MAXI-FLO MF-135
- Page 1 ® MAXI-FLO STAINLESS STEEL AND TITANIUM HEAT EXCHANGER FOR SWIMMING POOLS & SPAS INSTALLATION AND MAINTENANCE MANUAL Before proceeding with installation and operation, read entire manual carefully. Failure WARNING to do so can cause injury or property damage. Warranty Registration Card must be filled out by the customer and mailed within thir- NOTI E ty (30) days of installation in order to gain warranty coverage.
-
Page 2: Table Of Contents
Table of Contents PRODUCT & SAFETY INFORMATION INSTALLATION Code Compliance........... 2 Locating the Maxi-Flo Heat Exchanger . -
Page 3: Product & Safety Information
Product & Safety Information DANGER WARNING Prolonged Immersion May Cause Hypothermia When using this equipment, basic safety precautions Hypothermia occurs when the internal temperature should always be followed, including the following: of the body reaches a level several degrees above the normal body temperature of 98.6ºF. -
Page 4: Code Compliance
Installation CODE COMPLIANCE WARNING High chemical concentrations from improperly Maxi-Flo Heat Exchanger installation must conform with adjusted feeders and chlorinators can cause rapid the instructions in this manual and where applicable: corrosion to the heat exchanger. Bypassing the heat • Local, state, provincial, and national codes, exchanger, is recommended, prior to stabilization of laws, regulations and ordinances. -
Page 5: General Piping
Installation WARNING GENERAL PIPING Water temperatures in excess of 104ºF is considered • Typical pool or spa piping is plumbed as follows unsafe for all persons. Lower temperatures are rec- (see Figures 1 & 2): ommended for extended use (exceeding 10 to 15 min- Inlet of the filter is piped directly to the dis- utes) and for young children. -
Page 6: Corrosion
Installation SPRING AND FALL OPERATION • Not maintaining proper chemical levels and/or not changing the water on a regular basis can promote unsanitary water conditions. During cold periods (those above freezing weather) maintain a minimum temperature setting (65ºF to 70ºF) for periodic usage. - Page 7 Installation...
-
Page 8: Recommended Piping Schematic
Installation... -
Page 9: Wiring
Installation Flow Switch Typ. McDonnell Miller FS4-3 FIG. 3-FIELD WIRING MF 135T or MF-260T Heat Exchanger CPVC Male Nipple Rubber Coupling Note: Recommend pipe thread sealant - Loctite 30561 or equivalent FIG. 4 POOL PIPING CONNECTION MF-135T AND MF-260T ONLY... -
Page 10: Stainless Steel Heat Exchanger
Installation Thermal Output Maxi-Flo Stainless Steel Heat Exchangers Model Thermal Hot Water Flow Heat Transfer Cold Water Flow Output Surface GPM Pressure Drop GPM Pressure Drop Btu/hr Sq. Ft. MF-80 95,000 MF-135 135,000 MF-200 200,000 MF-260 260,000 Dimensions MF-400 400,000 Weight Model 13 1/2"... -
Page 11: Titanium Heat Exchanger
Installation Thermal Output Maxi-Flo Titanium Heat Exchangers Model Thermal Hot Water Flow Cold Water Flow Heat Transfer Output Surface GPM Pressure Drop GPM Pressure Drop Btu/hr Sq. Ft. MF-135T 135,000 MF-260T 260,000 Dimensions Weight Model 5 1/2" 5" 11/2" 20" 4 1/4"... - Page 12 Self cleaning and self descaling Computerized sizing available from Triangle Tube/Phase III Available in capacities from 25,000 BTU/hr to 5,000,000 BTU/hr 1240 Forest Parkway, Suite 100, West Deptford, NJ 08066 Tel: (856) 228 8881 - Fax: (856) 228 3584 E-mail: sales.triangletube@acv.com Company...
