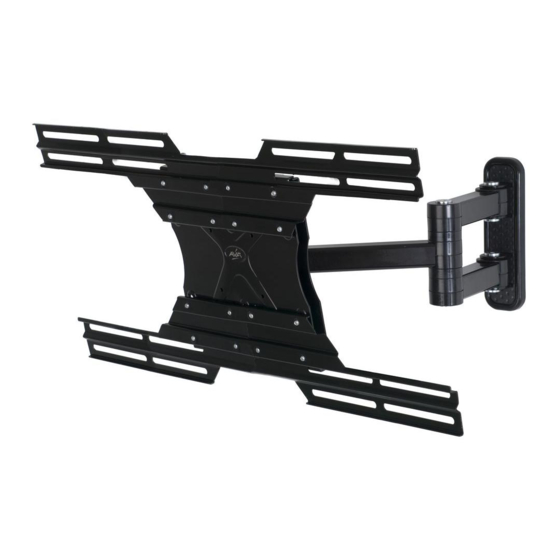

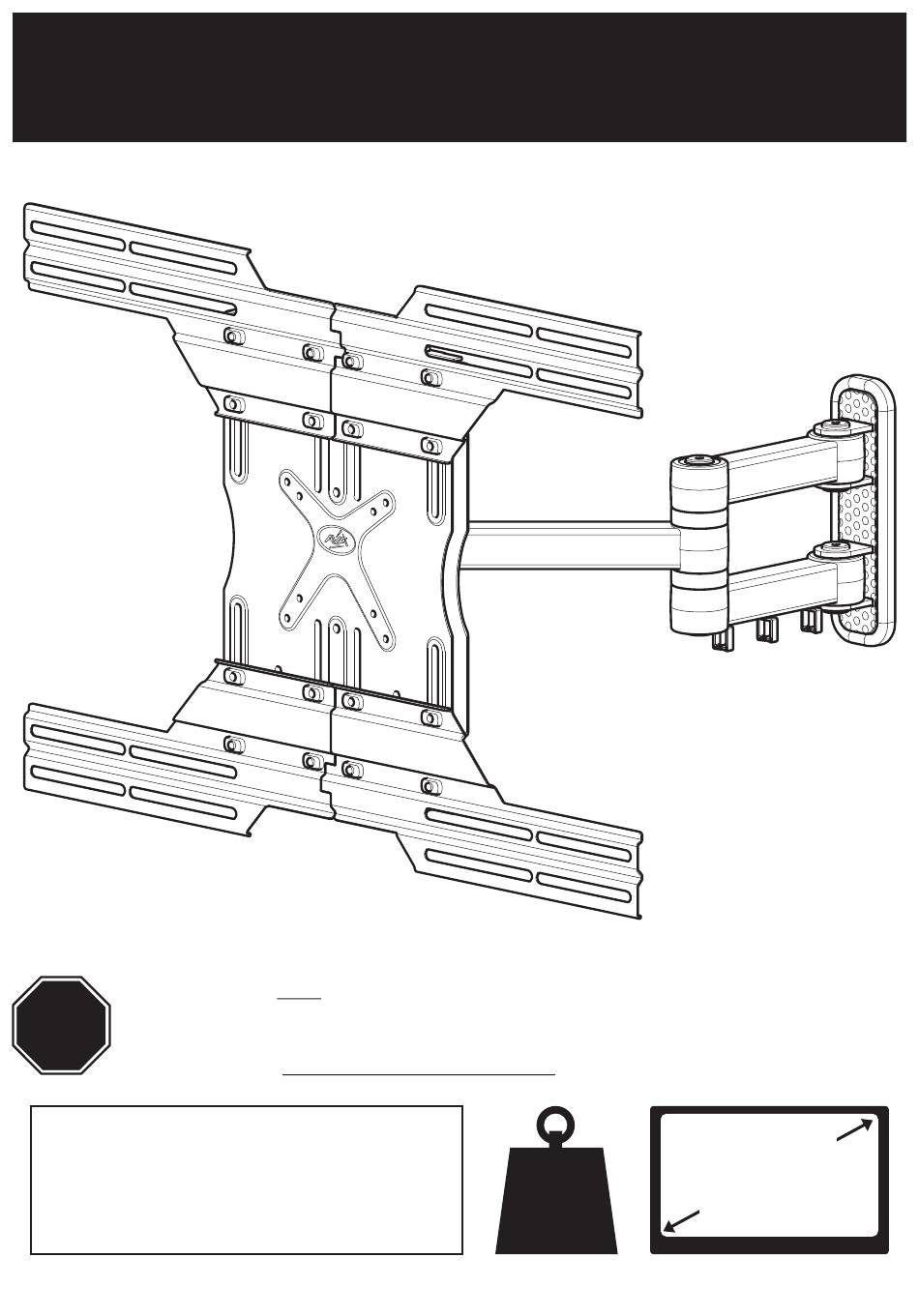

NUL604
Leaflet No. 464053
rev00
Read through ALL instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services help line before returning this product to
the store.
Visit http://te.avf.co.uk/p/nul604 for more information.
63"
CUSTOMER SERVICES HELP LINE NUMBER:
110lbs
01952 670009
160cm
50kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF NUL604
Summary of Contents for AVF NUL604
- Page 1 STOP contact the customer services help line before returning this product to the store. Visit http://te.avf.co.uk/p/nul604 for more information. 63" CUSTOMER SERVICES HELP LINE NUMBER: 110lbs 01952 670009 160cm 50kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
- Page 2 Assembly Overview Fit the TV Mounting Plate Fit the Wall Bracket Attach the TV...
- Page 3 It is the responsibility of the installer to ensure that the mounting wall is of a suitable standard and void of any services (eg gas, electricity, water etc). AVF accept no responsibility for any damage or loss caused by installing this product in a sub standard wall.
-
Page 4: Tools Recommended
Tools Recommended Ø10mm (25/64") Stud Finder Ø3mm (1/8") Masonry Wood Boxed Parts... - Page 5 TV Screws, Reducers and Spacers...
- Page 6 Measure the TV fixing holes Width and Height TV Fixing Holes 75 - 600mm 75 - 400mm If width X is greater than 600mm or height Y greater than 400mm STOP installation now and contact the customer help line You are provided with 2 diameters of TV fixing screws, M6 and M8. Determine the screw diameter that fits and remember for step 3.
- Page 7 Preparing the TV Mounting Plate Use the option that fits your TV OPTION 1 OPTION 2 OPTION 3 TV Fixing Hole Sizes TV Fixing Hole Sizes TV Fixing Hole Sizes 75mm 75mm 300mm 200mm 600mm 200mm 100mm 100mm 300mm 300mm 600mm 300mm 200mm...
- Page 8 OPTION 2 400mm MAX 250mm MIN 400mm MAX 160mm MIN Adaptors and F can be fixed in different positions in the slots on Plate E to match your TV fixing holes Either row of holes can be used to fit adaptors F onto Plate E.
- Page 9 OPTION 3 600mm MAX 425mm MIN 400mm MAX 160mm MIN Adaptors and F can be fixed in different positions in the slots on Plate E to match your TV fixing holes Either row of holes can be used to fit adaptors F onto Plate E.
- Page 10 Fitting the TV Mounting Plate No Spacers Spacers For Tvs with flat/unobstructed back For Tvs with irregular/obstructed back WARNING After completing step 3 you will have fittings left over, please keep for future reference...
- Page 11 OPTION 1 Screw diameter dependant If required Screw diameter dependant OPTION 2 & 3 Option 3 shown If required If required Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.
- Page 14 Arm Assembly...
- Page 16 Attach the TV Attaching TV Levelling & Cable Management Optional Lock Tilt...
