Delfield SARRI1-S Specifications

Delfield SARRI1-S Specifications

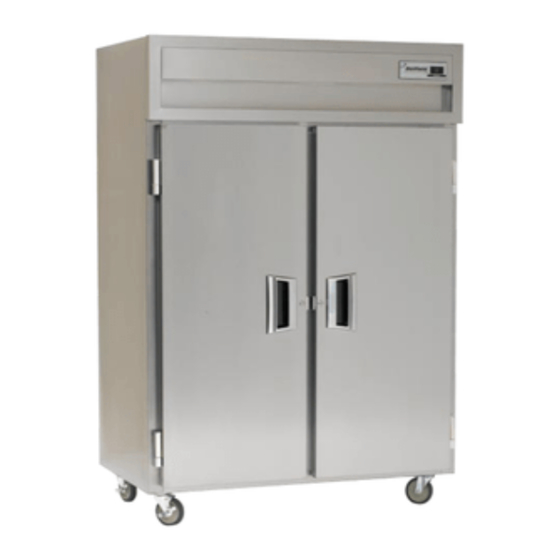

Self-contained solid door roll-in refrigerator

Advertisement

Quick Links

Specification Line
Self-Contained Solid Door Roll-In Refrigerator
MODELS
 SSRRI1-S_
1_section_stainless_interior_
_
full_door
 SARRI1-S_
1_section_aluminum_interior_
_
full_door
SSRRI2-S
SPECIFICATIONS
Exterior: Cabinet_exterior_sides,_front_and_shroud_
shall_be_22-gauge,_corrosion_resistant_stainless_steel.__
Upper_shroud_shall_be_hinged,_with_stay-open_feature_
to_provide_easy_access_to_refrigeration_system.
Interior:_Cabinet_interior_shall_be_22-gauge,_corrosion_
resistant_stainless_steel_(SS_models)_or_heavy_gauge_
aluminum_(SA_models).__Bottom_and_top_surfaces_are_
die_stamped_to_provide_radius_corners_and_recessed_
floor._Interior_light,_mounted_to_the_interior_ceiling_is_
controlled_automatically_through_a_switch_mounted_in_
the_hinge_assembly_to_protect_against_breakage.__Door_
openings_are_protected_with_heavy_gauge_stainless_
steel_breaker_strips.__An_air_duct_is_mounted_to_the_
ceiling_assuring_low_velocity,_even_air_movement_
throughout_the_cabinet_interior.
Solid Doors:_Exterior_shall_be_22-gauge,_corrosion_
 SSRRI2-S_
2_section_stainless_interior_
_
full_door
 SARRI2-S_
2_section_aluminum_interior_
_
full_door
STANDARD FEATURES
•_ Stainless_steel_interior_and_exterior_(SS)
•_ Stainless_steel_exterior,_aluminum_interior_(SA)
•_ Built_in_door_locks_with_heavy_duty_strikes
•_ Recessed_metal_door_handle
•_ Exterior_digital_thermometer_with_high/low_
temperature_alarm
•_ Easy_to_use_electronic_control
•_ Easy_access_"flip_up"_shroud
•_ Three_chrome_plated_wire_shelves_per_section
•_ Tough_ABS_interior_door_liners
•_ 10'_attached_cord_and_plug_standard_on_115V_units
•_ Stainless_steel_breaker_strips
•_ Energy_savings_door_heater_switch
•_ Inclined_stainless_steel_exterior_ramp
•_ Environmentally_friendly_404A_refrigerant
•_ Two_year_parts_&_labor_warranty
resistant_stainless_steel.__Interior_liner_shall_be_resilient_high_
impact_ABS_material,_formed_to_protrude_beyond_the_door_
gasket_to_protect_the_gasket_from_tearing.__Each_door_has_
two_edge_mount,_self_closing,_cam_lift_style_hinges.__Doors_
can_be_removed_from_cabinet_without_the_use_of_tools.__
Metal_door_handle_is_recessed_into_the_door_for_easy_grip_
without_impacting_aisle_space.__Keyed_door_lock_is_mounted_
in_the_door_next_to_the_handle.__Lock_engages_into_a_heavy_
duty_strike_mounted_to_the_cabinet_face.__Door_gaskets_are_
magnetic_and_mount_to_the_door_snapping_in_place_and_are_
removable_without_tools.
Refrigeration system:__All_components_are_mounted_to_
the_exterior_cabinet_ceiling,_outside_the_food_zone_and_are_
assembled_as_one_piece_and_can_be_removed_as_one_piece.__
Environmentally_friendly_R404A_refrigerant_is_used.__System_
has_the_capability_of_maintaining_between_27˚F_and_40˚F_in_
heavy_use_food_service_operations.__Refrigerant_is_metered_
using_a_highly_responsive_thermostatic_expansion_valve.__
980_S._Isabella_Road
Phone:_800-733-8948
Mt._Pleasant,_MI_48858
Fax:_800-669-0619
www.delfield.com
Email:_info@delfield.com
Project_ __________________________
Item_____________________________
Quantity_ _________________________
CSI_Section_11400
 SSRRI3-S_
3_section_stainless_interior_
_
full_door
 SARRI3-S_
3_section_aluminum_interior_
_
full_door
OPTIONS AND ACCESSORIES
 Security_package
 Stainless_steel_interior_door_liner
 Stainless_steel_back
 Laminate_on_front,_sides_and_back
 Heat_shield_end
 Stainless_steel_kick_plate
 Full_height_shelf_kit
 Half_height_shelf_kit
 Flat_exterior_ramp
 High_humidity_evaporator_coil
 Alarm_control_display
 220-50-1_electrical
 220-60-1_electrical
System_is_controlled_using_Delfield's_ACT-Advanced_
Control_Technology_electronic_temperature_control,_which_
provides_improved_pull_down_times,_reducing_compressor_
cycling_and_longer_compressor_life_with_lower_energy_
consumption.__
Control_system_uses_adaptive_defrost_to_assure_
evaporator_coil_is_free_of_ice_and_operating_at_optimum_
efficiency.__Evaporator_condensate_is_eliminated_using_an_
energy_efficient_hot_gas_system.
Electrical:_Standard_electrical_connections_shall_be_115V,_
60Hz,_single_phase.__A_10'_cord_and_plug_is_supplied_
attached_to_a_junction_box_mounted_on_the_exterior_
top_of_the_cabinet.__Three_section_standard_voltage_is_
115/208-230V,_60Hz_single_phase.__Electrical_connection_
must_be_hard_wired_to_junction_box.
Approval__________________
Date_ _ ___________________
