Claas LEXION 670 Manual

Claas LEXION 670 Manual

Information and basic field settings
Hide thumbs
Table of Contents

Advertisement

Quick Links

Information and Basic Field
Settings for LEXION 670 - 620

Advertisement

Table of Contents
loading

Related Manuals for Claas LEXION 670

Summary of Contents for Claas LEXION 670

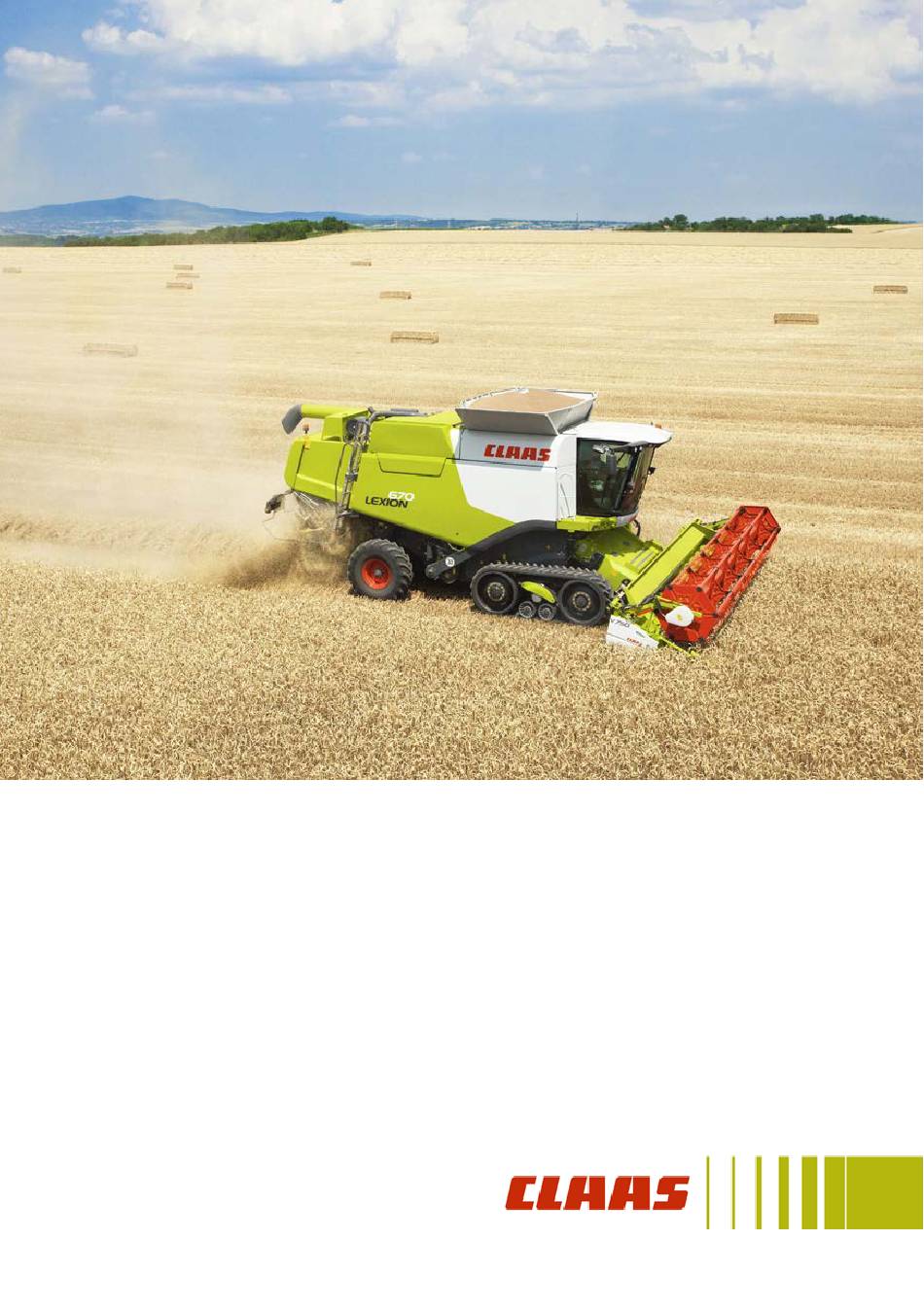

  • Page 1 Information and Basic Field Settings for LEXION 670 - 620...

  • Page 3: Table Of Contents

    Content Introduction Safety Overview Cab Controls, Layout Cab Controls, CEBIS Service Maintenance Settings Losses EASY CRUISE PILOT EASY Steering Frequent Questions Wet Harvest Recommendations Recommendations...

  • Page 4: Introduction

    This guide does not replace the operator’s manual. More in depth information is available within the operator’s manual. Your CLAAS combine is designed for output and efficiency but this can only be achieved with the correct operation and maintenance of the machine.

  • Page 5: Safety

    The operator’s manual is an integral part of the machine. It addresses the user and contains safety relevant information. Only procedures specified in the operator’s manual are safe. Read and observe the operator’s manual before starting work. If you need help understanding the content, contact your local CLAAS Dealer.

  • Page 6: Overview

    Overview: Safety - Dimensions with front wheels Length up to tailgate 8950 Length up to safety frame of straw spreader 9330 Length up to safety frame of radial spreader 9370 Length, with XL grain tank unloading tube 9320 Length, with XXL grain tank unloading tube 9900 Length, with 3XL grain tank unloading tube 10500...
  • Page 7 Overview: Safety - Dimensions with TERRA TRAC Length up to tailgate 8950 Length up to safety frame of straw spreader 9330 Length up to safety frame of radial spreader 9370 Length, with XL grain tank unloading tube 9320 Length, with XXL grain tank unloading tube 9900 Length, with 3XL grain tank unloading tube 10500...
  • Page 8 Overview: 670 - 620 Function Description The feeder chains (1) accept the crop from the front attachment and convey Collecting thecrop. it to the accelerator drum.
  • Page 9 Overview: 670 - 620 The stone trap (2) can collect stones and foreign objects. The accelerator drum (3) accelerates the crop and feeds it to the threshing drum (5). The preconcave (4) deposits some of the grain, chaff and broken straw on the preparation floor (10).

  • Page 10: Cab Controls, Layout

    Cab Controls: Layout CEBIS rotary switch Gear selection switch HOTKEY rotary switch Park brake Main menu rotary switch LASER PILOT left & right switch ESC button Overdrive switch Value select rotary switch POWER TRAC/4TRAC switch Information button Engine speed switch Quick access button Grain tank extension Front attachment engagement...
  • Page 11 Cab Controls: Layout MONTANA Front attachment TIP. Before starting combining Threshing engagement in the field make sure the MONTANA automatic is active. Front attachment reverse Press the button once and the Left rape knife switch light will turn on. Front attachment cross levelling/ HOTKEY/VARIO adjustment TIP.
  • Page 12 Cab Controls: Layout Hazard warning lights Road travel switch Front attachment folding LED working main beam...
  • Page 13 Cab Controls: Layout Symbols for steering column: Engine fault 15. Turn signal indicator Urea indicator light. 16. 24 V charge light Minimum level 17. No function No function 18. Main beam 10. Engine output reduction 19. Trailer turn signal indicator 11.
  • Page 14 Cab Controls: C-MOTION Multifunction Lever Lower reel 11. Manual cross levelling, HOTKEY Reel forward adjustment, table in and out Raise reel 12. Grain tank unloading Reel back 13. Swing out the unloading tube AUTOPILOT on 14. Swing in the unloading tube Raise front attachment, slow and fast Cutting height control...
  • Page 15 Notes...

  • Page 16: Cab Controls, Cebis

    Cab Controls: CEBIS Main menu Vehicle control display Engine RPM Drive status Speedometer 10. Message fields 4. Time 11. Coolant temperature Operating hours 12. Fuel (pointer) Ground speed urea level* (green bar) Ground speed units *Engine HP is reduced if urea tank is below 20%...
  • Page 17 Cab Controls: CEBIS – Harvest Display Main menu 13. Drive status Returns meter 14. Variable display GRAINMETER 15. Variable display Separation performance monitor 16. Variable display Cleaning performance monitor 17. Message fields 6. Area counter 18. Cutting height control 7. Area work rate display 19.
  • Page 18 Cab Controls: CEBIS Keys Using the CEBIS rotary switch (1) the combine settings can be adjusted. The picture shows the operating settings that can be adjusted. To navigate through the settings, turn the CEBIS rotary switch (1). Inside the CEBIS display there are two large numbers.
  • Page 19 Cab Controls: HOTKEY The HOTKEY (2) is used to adjust the more frequently changing settings on the combine for example all the AUTOCONTOUR settings. To adjust any of the HOTKEY values turn the rotary switch (2) and the HOTKEY dial will appear on CEBIS which is shown in the picture below.
  • Page 20 Cab Controls: CEBIS Symbols Exits the menu and returns to CEBIS main screen Manual reel speed adjustment Upper sieve adjustment Lower sieve adjustment Front attachment speed adjustment (if fitted) CEBIS screen brightness adjustment Drum speed adjustment Fan speed adjustment Concave clearance adjustment Cleaning throughput monitor adjustment (sieve loss) Separation throughput monitor adjustments (rotor loss)
  • Page 21 Cab Controls: HOTKEY Symbols Cutting height, VARIO length, end snapping plate adjustment Partial working width adjustment LASER PILOT adjustment Hectolitre weight adjustment Flagging function for yield mapping Left / Right chopper bias, working width, central overlap (only with power spreader) and crosswind compensation if fitted Favourite crop settings CRUISE PILOT Automatic reel speed, reel height, reel fore &...
  • Page 22 Cab Controls: CEBIS Menu Navigation To navigate through the CEBIS menu turn the switch (3) shown below and the different icons at the top of the CEBIS screen will be highlighted in black (8). When the desired menu is highlighted push switch (3) to enter it, with any menu turn switch (3) to select the required section and push it to enter it.

  • Page 23: Service Maintenance

    Service Maintenance When carrying out any service operation make sure that the correct procedures are followed. See operator’s manual chapter 9.1 for the complete service requirements. TIP. When blowing down the whole combine taking extra care in the following areas •...
  • Page 24 Service Maintenance 1.End to end guides Correct tension is achieved when the ends of “D” are end to end. To tension the belt, slacken nut K from M and wind M in a clockwise direction until the ends of D meet then lock nuts M and K.
  • Page 25 Service Maintenance 4. Sieve box drive The sieve box drive belt differs slightly from the others on the machine in that to check the tension of the belt the nut, B, needs slackening, then the spring length F can be set to the guide D.

  • Page 26: Settings

    Settings: CEBIS Calibration To allow the machine to display accurate information, certain parameters need to be learnt either on a daily or seasonal basis. Daily zeroing This should be carried out with the machine running with threshing engaged at maximum no load speed.
  • Page 27 Settings: CEBIS Calibration 1. Learn the AUTOCONTOUR end stops at the start of the season. TIP. Learn the working position of the cutterbar within CEBIS. This may also need to be changed when combining different crops. 2. At the start of each crop make sure you have selected the correct crop type, or your personal crop settings.
  • Page 28 Set the height the same as the stubble. Lifters It is recommended that lifters should be fitted to CLAAS cutterbars. The lifters should be fitted by placing the first one on the fifth finger from the RHS of the cutterbar and then on every fourth one thereafter.
  • Page 29 Settings: Cutterbar Check that the knife is in good condition in order for it to work effectively. This involves replacing damaged or broken sections. TIP. Remove any knife play by adjusting the keeps, and make sure that the fingers are not rounded or bent. A cleaner cutting knife will reduce stress on the knife drive.
  • Page 30 Settings: Cutterbar Adjustments TIP. Check the height of the auger within the trough of the cutterbar. There should be a minimum gap of 20mm between the trough and the auger flights. TIP. Remove the intermediate retractable fingers along the length of the auger leaving just the middle ones.
  • Page 31 Settings: Side Knife/Divider Both the side knife and the divider use the new fork locating and locking device. For the side knife simply slide into the lock and turn the handle to lock in place. Make sure the lever has locked into the locking device.
  • Page 32 Settings: Pre-Separation De-awning De-awning can be carried out by operating the lever by the right hand front wheel of the machine, which in turn closes or opens a set of plates under the APS concave. This gives the crop an extra ‘rub’...
  • Page 33 Settings: Threshing To obtain initial settings it is recommended that the ‘CLAAS settings’ are loaded through CEBIS, these are to only be used as a starting point, then adjustments should be made from there. TIP. Only make one adjustment at a time.
  • Page 34 Settings: Cleaning The preparation pan (1) is the first part of the cleaning system that the grain will come into contact with. Its function is to separate the grain and the chaff. The grain is heavier and therefore goes to the bottom, the lighter chaff goes to the top.
  • Page 35 Cleaning The fan speed is shown on the CEBIS screen. The speed range of the fan is 750rpm – 1600rpm. With the standard cleaning on the LEXION 670-620 machines there are two other adjustments. • The wind board • The wind throttle TIP.
  • Page 36 Settings: Cleaning Both the top (1) and bottom (2) sieves are adjustable from 0 – 20mm in the cab. The sieves need to be open enough to cope with high volumes of grain. With wide sieve settings there is a need for high wind speed. TIP.
  • Page 37 Settings: Straw and Chaff Management The chaff spreader can be adjusted to spread chaff wider. See operator’s manual for adjustments. The straw chopper can be engaged and disengaged from work by operating the buttons on the rear of the machine or via CEBIS.
  • Page 38 Settings: Straw and Chaff Management The width that the POWERSPREADER spreads can be adjusted from the cab in CEBIS. TIP. Make sure that the spreader is not spreading too wide and that it is not in the standing crop. TIP. Make one adjustment at a time.
  • Page 39 Settings: Grain Tank 1. Increase fan speed Pieces of straw 2. Open concave 3. Reduce drum speed 4. Close both sieves Unthreshed heads 1. Close the lower sieve 2. Increase the drum speed 3. Close the concave Broken grains 1. Reduce the drum speed High sieve losses Grain Tank 1.

  • Page 40: Losses

    Losses When deciding what to adjust on the combine to reduce the amount of loss, it is important to understand where the loss is coming from and what is acceptable. At the front of the machine - • Is the loss happening before or after the cutterbar? •...
  • Page 41 Losses Where are the losses coming from? To work out what is coming from the rotors engage the chaff spreader and carry out a check behind the combine, count the grains on the floor. To check the losses from the sieves disengage the chaff spreader and engage the chopper and spread this as wide as possible and then count the...
  • Page 42 Losses Straw 1. Increase drum speed Grains in the ears 2. Close the concave 1. Open the concave Poor straw quality 2. Reduce drum speed Returns Unthreshed heads 1. Increase drum speed 2. Close the concave Pieces of straw 1. Increase fan speed 2.
  • Page 43 Notes...

  • Page 44: Easy Cruise Pilot

    EASY: CRUISE PILOT CRUISE PILOT adjusts the ground speed while combining. There are three different driving strategies that can be selected with CRUISE PILOT. CRUISE CONTROL (constant ground speed) Performance (constant throughput) Throughput (throughput with control) TIP. It is important that the “zero throughput” value is learnt after long periods at standstill/idle or after adjustment to the feeder housing.
  • Page 45 EASY: CRUISE PILOT To engage CRUISE PILOT press the AUTOPILOT button on the joystick. The symbols in the HOTKEY direct menu will have the colours inverted on activation. TIP. Make sure that the combine has crop going through it before pressing the AUTOPILOT button on the joystick.
  • Page 46 EASY: CRUISE PILOT Symbols The symbol displayed in the HOTKEY section (1) is the limiting factor for CRUISE PILOT. Now adjust the relevant limiting value. Maximum throughput is reached Maximum diesel engine load reached Ground speed limit, the maximum pre-set ground speed has been reached The separation loss limit has been reached The sieve loss limit has been reached...
  • Page 47 EASY: CRUISE PILOT To set throughput, drive the combine into the standing crop so that the loss monitors are full. Now check the losses. Are these losses acceptable? If not then increase or decrease the sensitivity to show what is acceptable. Adjust the walker loss sensitivity so that the loss triangles are shown 3/4 up...

  • Page 48: Easy Steering

    EASY: Steering To activate LASER PILOT make sure it is turned on in CEBIS (1) and that LASER PILOT is selected (2). Line up with the crop edge before pressing the AUTOPILOT buttonon the joystick. To set up the LASER PILOT, make sure the combine has a straight edge and is lined up with the crop.
  • Page 49 EASY: Steering - S10 To activate GPS turn it on in CEBIS (1). Make sure that the screen is on and that GPS is selected (2). Press the AUTOPILOT button on the joystick when you are near the A=B line. If a new AB line is required use the corresponding screen to set your AB line.
  • Page 50 EASY: Steering - S7 To activate GPS turn it on in CEBIS (1). Make sure that the screen is on and that GPS is selected (2). Press the AUTOPILOTbutton on the joystick when you are near the A=B line. For the S7 screen to set a new A=B line press 1 then press 2 and after a short...

  • Page 51: Frequent Questions

    Frequent Questions Threshing won’t engage and none of the hydraulics are working. Check that the road travel switch is not engaged. Threshing has engaged but the engine will not go to full rpm when the engine speed dial is turned. Check that the combine is not in 3rd gear.

  • Page 52: Wet Harvest Recommendations

    Wet Harvest Recommendations In wet and laid crops It is even more important to get a good cut and feed into the combine. Check the knife and fingers regularly, paying particular attention to the knife to finger gap. To pick up laid crops The skids under the bar must be raised into their highest position.
  • Page 53 Wet Harvest Recommendations When unloading wet grain Reduce the flow into the unloading auger by shutting down the slides on both the cross augers in the grain tank. This will reduce the load on the unloading system, bringing it down to a ‘normal’ level. If wet and dirty grain is being unloaded It is also likely that dirt will build up in the turret auger.

  • Page 54: Recommendations

    Recommendations Seasonal calibration At the beginning of the season before the combine is used, it is advised that the following items are learnt: A. Learn AUTOCONTOUR limits (1), VARIO (2) and reel (3) ‘end stops’ in the cutterbar section of CEBIS. B.
  • Page 56 CLAAS Telematics CLAAS CEMOSAdvisor CLAAS U.K. Ltd Saxham Bury St. Edmunds Suffolk IP28 6QZ Tel: 01284 763100 Fax: 01284 769839 www.claas.co.uk © 2018 All Rights Reserved by CLAAS...
