7. Functions and instructions

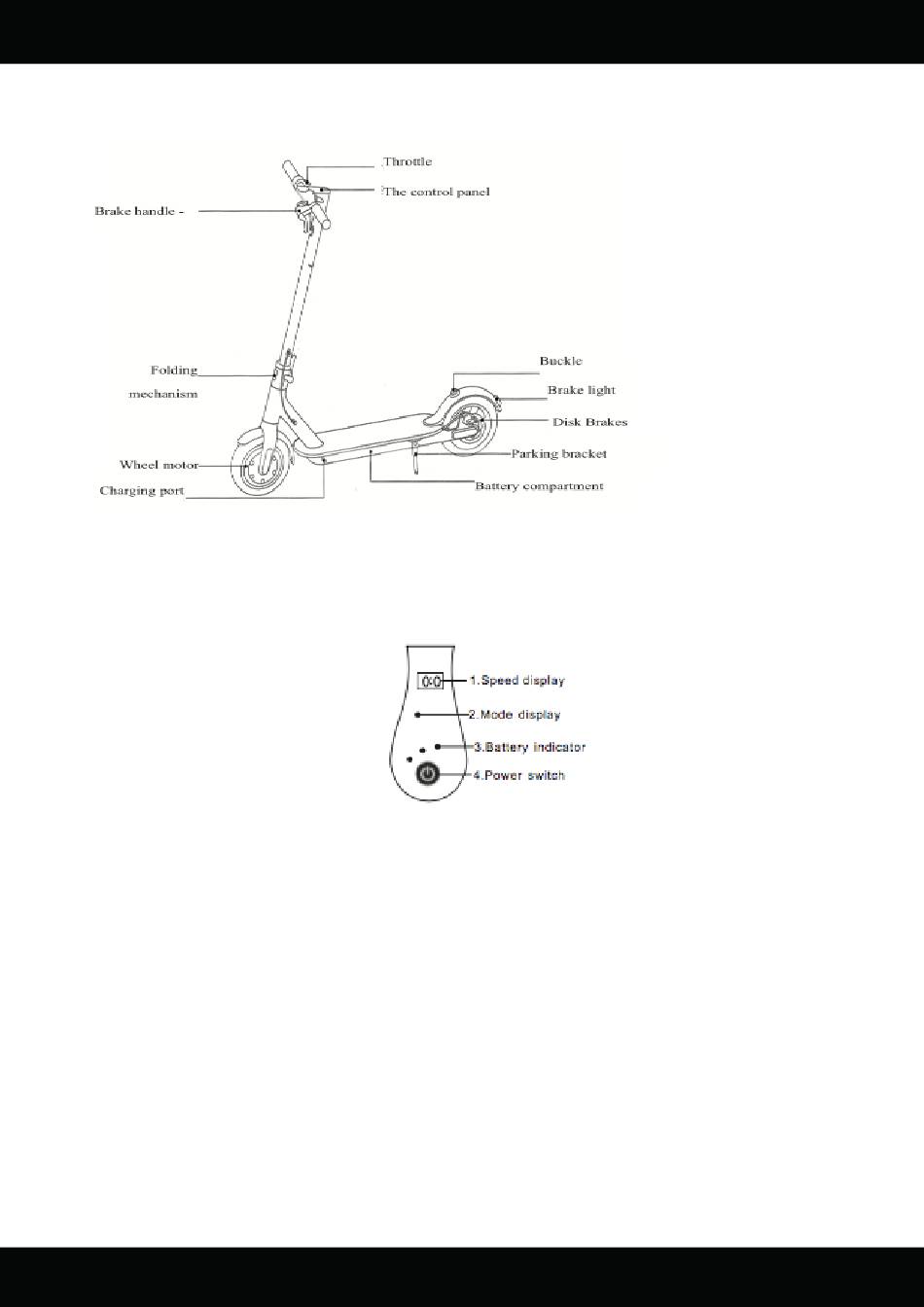

The Control Panel

1) Speed display: showing the running speed while riding
2) Model display: Green light is on when the power on in low speed mode first and max speed it 15km/h, double press the
switch to change it to high speed mode with red light on and max speed is 25km/h.
3) Battery indicator: The battery light status will change from right to left: 4 lights on indicating battery between 86 to 100%;
3 lights on indicating battery between 71 to 85%; when the battery used up, all lights are extinct and the scooter will slide to
natural stop by inertia. Then time to recharge.
4) Power switch: When the scooter is power on, quick press the switch to turn on the vehicle, long press the switch for 2S, can
turn it off. After turning on the vehicle, quick press the switch: on/off the light.
6
