Delfield SAF1-G Specifications

Specification Line

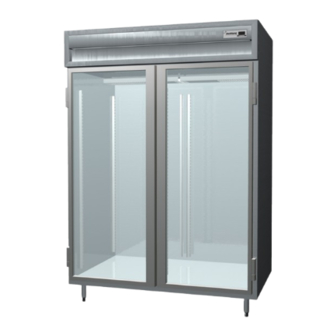

Self-Contained Hinged Glass Door Reach-In Freezer
MODELS
 SSF1-G_
1_section_stainless_interior_
_ full_glass_door
 SSF1-GH_ 1_section_stainless_interior_
_ half_glass_door
 SAF1-G_ 1_section_aluminum_interior_
_ full_glass_door
 SAF1-GH_ 1_section_aluminum_interior_
_ half_glass_door
SSF2-G
SPECIFICATIONS
Exterior: Cabinet_exterior_sides,_front_and_shroud_
shall_be_22-gauge,_corrosion_resistant_stainless_steel.__
Upper_shroud_shall_be_hinged,_with_stay-open_feature_
to_provide_easy_access_to_refrigeration_system.
Interior:_Cabinet_interior_shall_be_22-gauge,_corrosion_
resistant_stainless_steel_(SS_models)_or_heavy_gauge_
aluminum_(SA_models).__Bottom_and_top_surfaces_are_
die_stamped_to_provide_radius_corners_and_recessed_
floor.__Three_chrome_plated_wire_shelves_are_provided_
per_section.__Shelves_rest_on_clips_which_are_adjustable_
in_1"_increments_on_stainless_steel_pilasters_affixed_
to_the_cabinet_interior.__Pilasters_are_removable_
without_tools_for_cleaning._Interior_light_mounted_to_
the_interior_ceiling_is_controlled_automatically_through_
a_switch_mounted_in_the_hinge_assembly_to_protect_
against_breakage.__Door_openings_are_protected_with_
heavy_gauge_stainless_steel_breaker_strips.__An_air_duct_
 SSF2-G_ 2_section_stainless_interior_
_ full_glass_door
 SSF2-GH_ 2_section_stainless_interior_
_ half_glass_door
 SAF2-G_ 2_section_aluminum_interior_
_ full_glass_door
 SAF2-GH_ 2_section_aluminum_interior_
_ half_glass_door
STANDARD FEATURES
•_ Stainless_steel_interior_and_exterior_(SS)
•_ Stainless_steel_exterior,_aluminum_interior_(SA)
•_ Exterior_digital_thermometer_with_high/low_
temperature_alarm
•_ Easy_access_"flip_up"_shroud
•_ Three_chrome_plated_wire_shelves_per_section
•_ 10'_attached_cord_and_plug_standard_on_115V_units
•_ 6"_adjustable_stainless_steel_legs
•_ Stainless_steel_breaker_strips
•_ Flourescent_light
• Two_year_parts_&_labor_warranty
_
is_mounted_to_the_ceiling_assuring_low_velocity,_even_air_
movement_throughout_the_cabinet_interior.
Doors:_Double_paned_heated_tempered_thermopane_glass.__
Constructed_with_a_combination_of_extruded_aluminum_
and_PVC.__Each_door_has_two_edgemount,_self-closing,_cam_
lift_style_hinges.__Doors_can_be_removed_from_the_cabinet_
without_the_use_of_tools.__Door_handle_is_continuous_along_
vertical_dimension_of_the_door.__Door_gaskets_are_magnetic_
and_mount_to_the_door,_snapping_in_place_and_removable_
with_out_tools.__Keyed_door_lock_is_mounted_to_the_door.__
Lock_is_mounted_to_the_door.__Lock_engages_into_a_heavy_
duty_strike_mounted_to_the_cabinet_face.
Refrigeration system:__All_components_are_mounted_
to_the_exterior_cabinet_ceiling,_outside_the_food_zone_and_
are_assembled_as_one_piece_and_can_be_removed_as_one_
piece.__Environmentally_friendly_R404A_refrigerant_is_used.__
System_has_the_capability_of_maintaining_between_-5˚F_and_
980_S._Isabella_Road Phone:_800-733-8948
Mt._Pleasant,_MI_48858 Fax:_800-669-0619
www.delfield.com Email:_info@delfield.com
Project_ __________________________
Item_____________________________
Quantity_ _________________________
CSI_Section_11400
 SSF3-G_ 3_section_stainless_interior_
_ full_glass_door
 SSF3-GH_ 3_section_stainless_interior_
_ half_glass_door
 SAF3-G_ 3_section_aluminum_interior_
_ full_glass_door
 SAF3-GH_ 3_section_aluminum_interior_
_ half_glass_door
OPTIONS AND ACCESSORIES
 Security_package
 Additional_shelves
 Tray_slides
 Stainless_steel_back
 Laminate_on_shroud,_sides_and_back
 Bottom_mount_electrical
 Stainless_steel_banking_strip
 Heat_shield_end
 Stainless_steel_kick_plate
 Laminate_kick_plate
 4"_stainless_steel_utility_base
 220-50-1_electrical
 220-60-1_electrical
0˚F_in_heavy_use_food_service_operations.__Refrigerant_
is_metered_using_a_highly_responsive_thermostatic_
expansion_valve.__Evaporator_defrost_is_automatic_
using_a_time_initiated,_time/temperature_terminated_
system_with_electric_heaters.__Evaporator_condensate_is_
eliminated_using_an_energy_efficient_hot_gas_system.___
Electrical:_Standard_electrical_connections_shall_be_115V,_
60Hz,_single_phase.__A_10'_cord_and_plug_is_supplied_
attached_to_a_junction_box_mounted_on_the_exterior_
top_of_the_cabinet._Other_voltage_requires_a_hardwire_
connection.
Approval__________________
Date_ _ ___________________
