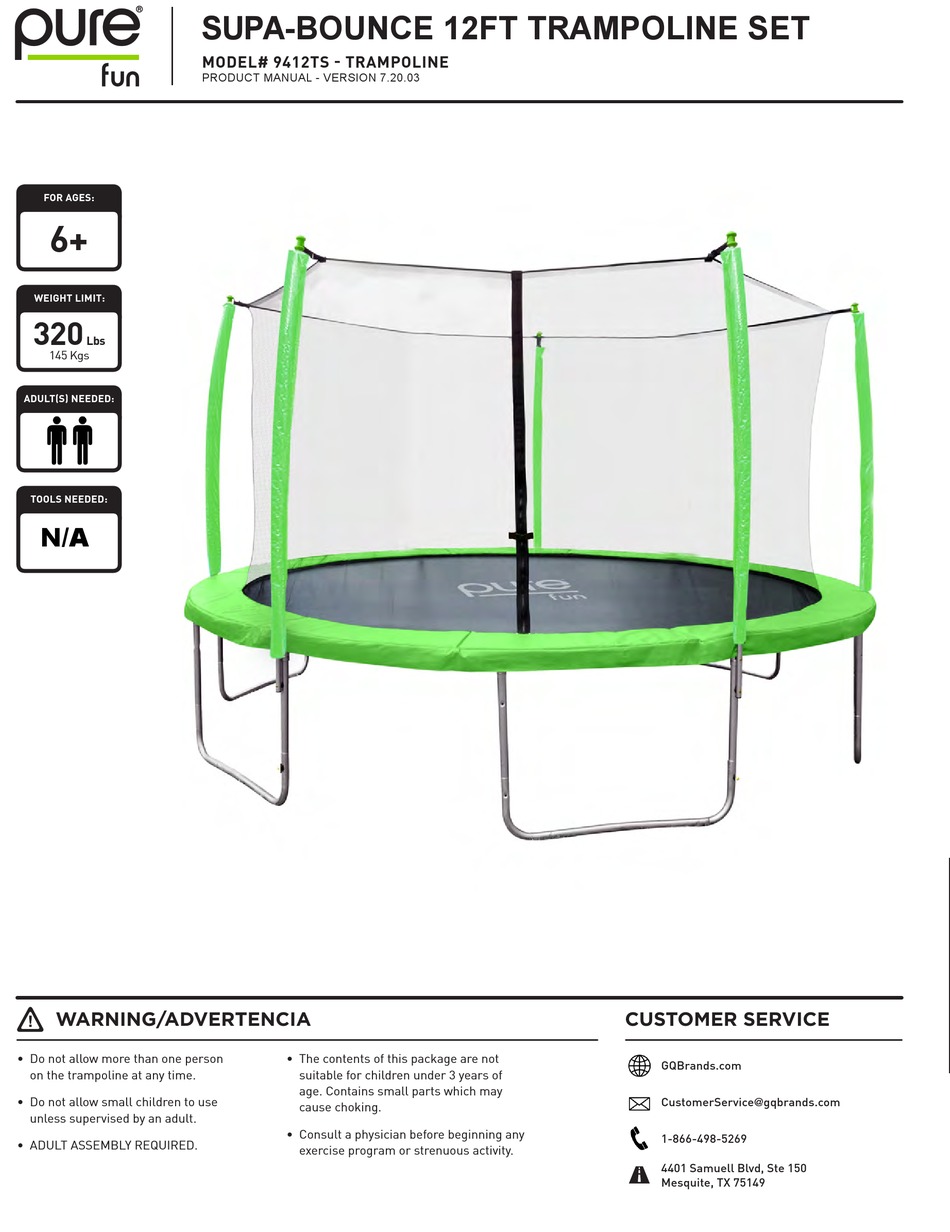

FOR AGES:
6+
WEIGHT LIMIT:
320
Lbs
145 Kgs
ADULT(S) NEEDED:
TOOLS NEEDED:
N/A
WARNING/ADVERTENCIA
• Do not allow more than one person
on the trampoline at any time.
• Do not allow small children to use
unless supervised by an adult.
• ADULT ASSEMBLY REQUIRED.

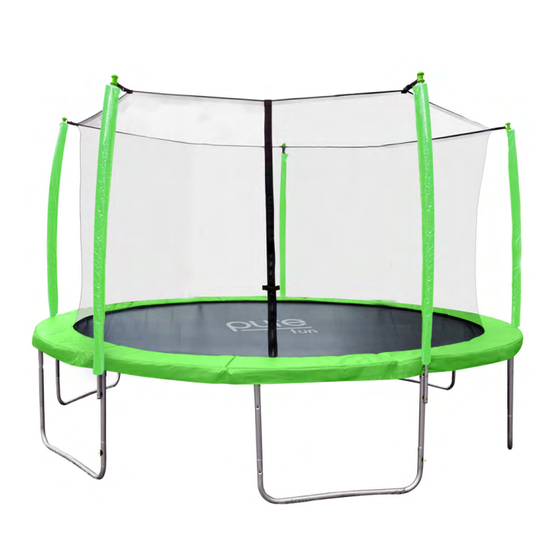

SUPA-BOUNCE 12FT TRAMPOLINE SET
MODEL# 9412TS - TRAMPOLINE
PRODUCT MANUAL - VERSION 7.20.03
• The contents of this package are not
suitable for children under 3 years of
age. Contains small parts which may
cause choking.
• Consult a physician before beginning any
exercise program or strenuous activity.
CUSTOMER SERVICE
GQBrands.com
CustomerService@gqbrands.com
1-866-498-5269
4401 Samuell Blvd, Ste 150
Mesquite, TX 75149

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPA-BOUNCE 12FT TRAMPOLINE SET and is the answer not in the manual?

Questions and answers

Related Manuals for Pure Fun SUPA-BOUNCE 12FT TRAMPOLINE SET

Summary of Contents for Pure Fun SUPA-BOUNCE 12FT TRAMPOLINE SET

  • Page 1 SUPA-BOUNCE 12FT TRAMPOLINE SET MODEL# 9412TS - TRAMPOLINE PRODUCT MANUAL - VERSION 7.20.03 FOR AGES: WEIGHT LIMIT: 145 Kgs ADULT(S) NEEDED: TOOLS NEEDED: WARNING/ADVERTENCIA CUSTOMER SERVICE • Do not allow more than one person • The contents of this package are not GQBrands.com...
  • Page 2 CUSTOMER SERVICE INFORMATION Thank you for purchasing: SUPA-BOUNCE 12FT TRAMPOLINE SET MODEL# 9412TS If you have an issue with your item, do not return. Please report To register you product please visit: items that are damaged or missing parts to the manufacturer GQ www.globalqualitybrands.com/product-registration...

  • Page 3: Important Message

    WARNINGS IMPORTANT MESSAGE WARNING - PLEASE READ ADULT ASSEMBLY REQUIRED CHOKING HAZARD - Small Parts NOT for children under 3 years of age. WARNING: While every attempt is made to ensure the highest degree of protection in all equipment, we cannot guarantee freedom from injury. The user assumes all risks of injury due to use.
  • Page 4 WARNINGS Please read these warnings and the information in this manual in its entirety. Failure to comply with the following instructions may increase the risk of serious injury and/or death: • Ensure the trampoline has been • DO NOT use the trampoline as a •...

  • Page 5: Safety Information

    You can purchase an • As your trampoline mat is raised off the ground, ANCHOR KIT for your trampoline from Pure Fun, by there is the risk of falling when entering or exiting visiting us on the web at: www.PureFun.Net the trampoline.

  • Page 6: Trampoline Parts List

    TRAMPOLINE PARTS LIST Part # Description Part# Description Leg Extension Jump Mat Curved Top Rail U Shaped Leg T-Section with Bolt Spring Frame Pad M6x45mm Bolt Wrench Spring Tool (4a) M6 x 45mm MODEL# 9412TS- TRAMPOLINE...
  • Page 7 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 1: Gather all 10 Curved Top Rails (Part 2) and 10 T-Sections (Part 3).Flip the Curved Top Rails (Part 2) over so the spring holes are facing up. Make sure to place them all on a flat and secure surface before you begin.
  • Page 8 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 4: Gather all Leg Extensions (Part 5) and U- Shaped Legs (Part 6). You will be attaching 2 leg extensions (5) to each U- Shaped Leg. NOTE: The Leg Extension will have 3 openings. The 2 openings closest to each other, will go on the top and connect to the T- Section at the top of the trampoline.
  • Page 9 TRAMPOLINE ASSEMBLY INSTRUCTIONS Repeat step 7 until you have attached 5 of the top T-Sections which will look like figure shown. Figure C GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 10 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 8: Place the Jumping Mat (Part 1) in the middle of the frame and unfold it completely. NOTE: Make sure the stitching of the Jumping mat is facing the floor In order to avoid ripping and to distribute tension when attaching springs to the frame, follow the numbered order shown.
  • Page 11 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 9: Unfold the Frame Pad (Part 8) and place it on top of the Top Rail and springs. The skirt of the Frame Pad must cover the Top Rails completely to avoid injury. NOTE: Make sure the connecting straps are facing down towards the Top Rails in order to secure the Frame Pad to them in Step 10.
  • Page 12 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 10: Find all the bottom connecting straps of the trampoline frame pad and secure them by tying them in a knot around to the top rail to avoid moving or shuffling when jumping on the trampoline as shown below.

  • Page 13: Enclosure Parts List

    ENCLOSURE PARTS LIST Part # Description Part# Description Straight Enclosure Pole Washer Curved Enclosure Pole Enclosure Pole Cap Black String Enclosure Net M6x75mm Bolt Spacer Lime Pole Cover M6x75mm Bolt MODEL# 9412TS - ENCLOSURE...
  • Page 14 ENCLOSURE ASSEMBLY INSTRUCTIONS STEP 1: Gather all Curved Enclosure Poles (Part 2) and Enclosure Pole Caps (Part 3). IMPORTANT: Do not attach the Enclosure Pole Caps to the Straight Enclosure Poles. If an Enclosure Pole Cap has been accidentally installed on a straight pole it cannot be removed.
  • Page 15 ENCLOSURE ASSEMBLY INSTRUCTIONS STEP 3: Slide the Lime Pole Cover (Part 10) over the foam of the connected enclosure poles as shown. Repeat this on all 5 poles before moving to next step. GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 16 ENCLOSURE ASSEMBLY INSTRUCTIONS STEP 4: A. With the help of another adult, hold the completed enclosure pole by aligning both square holes to begin installation. NOTE: Curved Enclosure Pole must face towards the center of the trampoline. B. Once aligned, attach the completed enclosure pole to the trampoline leg.
  • Page 17 ENCLOSURE ASSEMBLY INSTRUCTIONS M6x75mm Bolt Spacer Washer GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 18 ENCLOSURE ASSEMBLY INSTRUCTIONS STEP 5: Place the Enclosure Net (Part 9) on top of the trampoline. Align the straps to the corresponding Enclosure Poles so they are as near to each other as possible when lifted. NOTE: Make sure that zipper and buckle snap are facing the outside of the trampoline.

  • Page 19: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS • Question: “The foam padding or mat is • Question: “I had a part missing from damaged, what should I do?” my box” or “something was damaged in shipping, can you send it to me?” Answer: If you are still within your warranty period (90 Days from initial Answer: If it has been 30 days or less purchase) you should contact customer...
