FOR AGES:
6+
WEIGHT LIMIT:
350
Lbs
159 Kgs
ADULT(S) NEEDED:
TOOLS NEEDED:
WARNING/ADVERTENCIA
• Do not allow more than one person
on the trampoline at any time.
• Do not allow small children to use
unless supervised by an adult.
• ADULT ASSEMBLY REQUIRED.

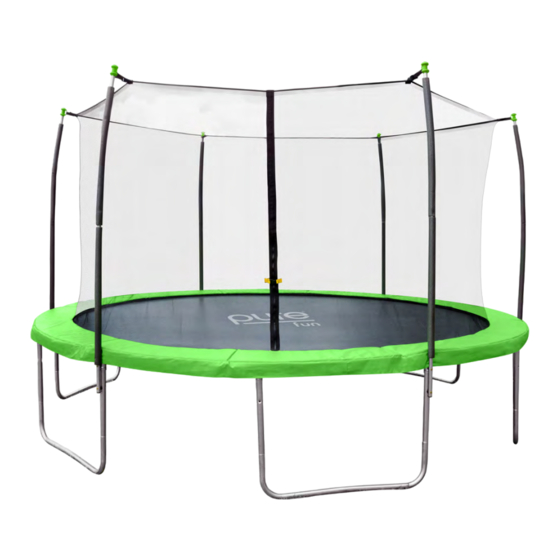

DURA-BOUNCE 12FT TRAMPOLINE SET
MODEL# 9312TS
PRODUCT MANUAL VERSION 5.20.01
• The contents of this package are not
suitable for children under 3 years of
age. Contains small parts which may
cause choking.
• Consult a physician before beginning any
exercise program or strenuous activity.
CUSTOMER SERVICE
GQBrands.com
CustomerService@gqbrands.com
1-866-498-5269
4401 Samuell Blvd, Ste 150
Mesquite, TX 75149
Advertisement
Table of Contents
Related Manuals for Pure Fun DURA-BOUNCE 12FT
Summary of Contents for Pure Fun DURA-BOUNCE 12FT
- Page 1 DURA-BOUNCE 12FT TRAMPOLINE SET MODEL# 9312TS PRODUCT MANUAL VERSION 5.20.01 FOR AGES: WEIGHT LIMIT: 159 Kgs ADULT(S) NEEDED: TOOLS NEEDED: WARNING/ADVERTENCIA CUSTOMER SERVICE • Do not allow more than one person • The contents of this package are not GQBrands.com on the trampoline at any time.
- Page 2 CUSTOMER SERVICE INFORMATION Thank you for purchasing: DURA-BOUNCE 12FT TRAMPOLINE SET MODEL# 9312TS If you have an issue with your item, do not return. Please report To register you product please visit: items that are damaged or missing parts to the manufacturer GQ www.globalqualitybrands.com/product-registration...
-
Page 3: Important Message
WARNINGS IMPORTANT MESSAGE WARNING - PLEASE READ ADULT ASSEMBLY REQUIRED CHOKING HAZARD - Small Parts NOT for children under 3 years of age. WARNING: While every attempt is made to ensure the highest degree of protection in all equipment, we cannot guarantee freedom from injury. The user assumes all risks of injury due to use. - Page 4 WARNINGS Please read these warnings and the information in this manual in its entirety. Failure to comply with the following instructions may increase the risk of serious injury and/or death: • Ensure the trampoline has been • DO NOT use the trampoline as a •...
-
Page 5: Safety Information
You can purchase an • As your trampoline mat is raised off the ground, ANCHOR KIT for your trampoline from Pure Fun, by there is the risk of falling when entering or exiting visiting us on the web at: www.PureFun.Net the trampoline. -
Page 6: Trampoline Parts List
TRAMPOLINE PARTS LIST Part # Description Part# Description Jump Mat Leg Extension Curved Top Rail U Shaped Leg T-Section Screw Spring M8x50mm Bolt Frame Pad M6x50mm Bolt MODEL# 9312TS - TRAMPOLINE... - Page 7 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 1: Gather all 12 Curved Top Rails (Part 2), flip them over so the spring holes are touching the floor. Separate them into 3 groups of 4 Top Rails. Make sure to place them all on a flat and secure surface before you begin.
- Page 8 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 4: A. Gather all Leg Extensions (Part 6) and begin inserting them into the T-Sections NOTE: The Leg Extension will have 3 openings. The 2 square openings closest to each other, will go inside the T-Section. Make sure that wider section is facing the center of the trampoline.
- Page 9 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 6: Use the Screw (Part 8) with a Phillips screwdriver to secure the Leg Extension to the U Shaped Leg. NOTE: It is recommended to use a powered screwdriver to accomplish this task safely. STEP 7: Once all 3 groups have been successfully completed, flip them over so they may stand.
- Page 10 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 8: Place the Jumping Mat (Part 1) in the middle of the frame and unfold it completely. NOTE: Make sure the stitching of the Jumping mat is facing the floor In order to avoid ripping and to distribute tension when attaching springs to the frame, follow the numbered order shown.
- Page 11 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 9: Unfold the Frame Pad (Part 10) and place it on top of the Top Rail and springs. The skirt of the Frame Pad must cover the Top Rails completely to avoid injury. NOTE: Make sure the connecting straps are facing the Top Rails in order to secure the Frame Pad to them in Step 10.
- Page 12 TRAMPOLINE ASSEMBLY INSTRUCTIONS STEP 10: Find all the bottom connecting straps of the trampoline frame pad and secure them by tying them in a not on to the top rails to avoid moving or shuffling when jumping on the trampoline. Tighten straps to the top rail MODEL# 9312TS - TRAMPOLINE...
-
Page 13: Enclosure Parts List
ENCLOSURE PARTS LIST Part # Description Part# Description Straight Enclosure Pole Washer Curved Enclosure Pole Enclosure Pole Cap Black Plastic Cap Nut M6x80mm Bolt Enclosure Net Spacer MODEL# 9312TS - ENCLOSURE... - Page 14 ENCLOSURE ASSEMBLY INSTRUCTIONS STEP 1: Gather all Curved Enclosure Poles (Part 2) and Enclosure Pole Caps (Part 3). IMPORTANT: Do not attach the Enclosure Pole Caps to the Straight Enclosure Poles. Once an Enclosure Pole Cap has been installed it cannot be removed. Snap and click all Enclosure Pole caps to the Curved Enclosure Pole.
- Page 15 ENCLOSURE ASSEMBLY INSTRUCTIONS STEP 3: A. Remove the Nut and bolt from 12FT Enclosure Trampoline on the right side of the U-Shaped Leg. Do not remove all nuts and bolts at the same time, only 1 set a time to keep the strength of the Frame at all times.
- Page 16 ENCLOSURE ASSEMBLY INSTRUCTIONS M6x80mm Bolt Spacer Washer Black Nut Cap GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
- Page 17 ENCLOSURE ASSEMBLY INSTRUCTIONS STEP 4: Place the Enclosure Net (Part 9) on top of the trampoline. Align the straps to the corresponding Enclosure Poles so they are as near to each other as possible when lifted NOTE: Make sure that zipper and buckle snap are facing the outside of the trampoline.
-
Page 18: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS • Question: “The foam padding or mat is • Question: “I had a part missing from damaged, what should I do?” my box” or “something was damaged in shipping, can you send it to me?” Answer: If you are still within your warranty period (90 Days from initial Answer: If it has been 30 days or less purchase) you should contact customer...
