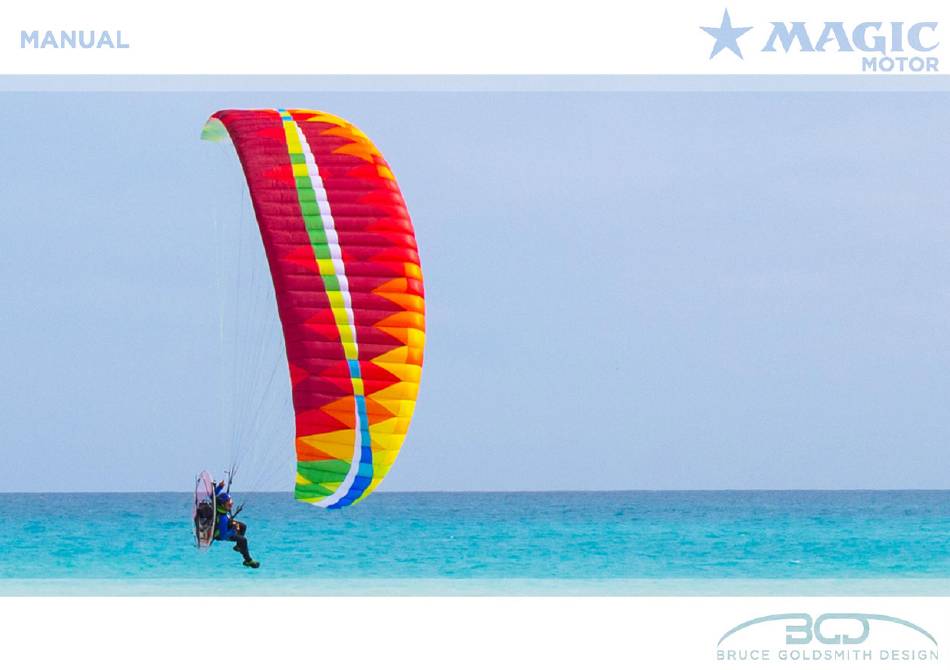

  • Page 1 Version 1.3 June 2020 MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 2: Table Of Contents

    Contents Contents 1. Welcome 2. Introduction 3. Preparation 4. Pre-flight Inspection 5. Flight Characteristics 6. Recovery Techniques 7. Storage and Servicing 8. Technical Data 9. Service booklet 10. Closing Words MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 3: Welcome

    POWERED PARAGLIDER EN / LTF A + DGAC Welcome to Bruce Goldsmith Design BGD is a world leader in the design and production of paragliders. For many years Bruce Goldsmith and his team have been developing products with world-beating performance for pilots who want the best. We apply our Introduction competitive knowledge to design top quality products that combine the highest performance with the safe handling our customers value and respect. BGD pilots appreciate our quality and reliability. BGD´s world-class status is based on the skills and expertise we have developed in combining aerodynamic design with cloth and materials technology. All BGD products are developed and made with the same skill and attention to good design that are synonymous with the ultimate performance and precision required by paragliders. Congratulations on your purchase of the BGD MAGIC MOTOR The MAGIC MOTOR is a safe and fun wing, suitable for beginners and perfectly adapted for paramotoring. It is designed to a high standard of safety and stability, but it will only retain these characteristics if it is properly looked after. This manual has been prepared to give you information and advice about your paraglider. If you ever need any replacement parts or further information, please do not hesitate to contact your nearest BGD dealer or contact BGD directly. Please read this manual carefully from the first to the last chapter to ensure you get the best out of your wing. MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 4: Introduction

    2. Introduction 2. Introduction The MAGIC MOTOR is a powered paraglider suitable for novice pilots. It is easy to launch and very stable in flight, well suited for pilots under instruction and for their continued progression after school. It is certified for both free-flight and paramotor use with two riser sets available – one for free-flight and one for powered flight. Ensure that you have the correct riser set installed for your intended purpose, free-flight or PPG. The use of this glider is limited to non-aerobatic manoeuvres. This paraglider must not: 1. Be flown outside the certified weight range 2. Have its trim speed adjusted by changing the length of risers or lines 3. Be flown in rain or snow 4. Be towed with a tow-line tension in excess of 200kg Test Flight It is your dealer´s responsibility to test fly your paraglider before you receive it. The test flight record of this can be found towards the end of this manual. Please be sure that this has been completed by your dealer. Failure to test fly a new paraglider may invalidate any warranty. MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 5 2. Introduction Brake Line Adjustments for PPG When using the PPG risers, the brake line lengths should be adjusted to suit the hangpoints (high, low or trike). Modifications When using the PPG riser-set, only the brake line lengths should be adjusted. No other changes or modifications should be performed without first consulting your BGD dealer, as they may invalidate the warranty or certification. Warranty In order to enjoy full benefits of the BGD warranty, you must complete the warranty form on the website. For further information about the BGD warranty, please refer to the corresponding page on our website. MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 6: Preparation

    3. Preparation 3. Preparation 1. Select a suitable take-off area determined by wind and terrain, clear of any obstacles that may catch in the lines or damage the canopy. 2. Unroll the canopy with the bottom surface facing upwards, the openings at the downwind end of the take-off area, and the harness at the trailing edge at the upwind side. 3. Unroll the canopy to each side so that the leading edge openings form a semicircular shape, with the trailing edge drawn together at the centre of the arc. The harness should be drawn away from the canopy until the suspension lines are just tight. 4. Prepare and check your paramotor according to the manufacturer’s instructions. 5. Connect the wing to the paramotor (or to the tandem spreaders), making sure there are no twists in the risers, and that the maillons or karabiners are correctly closed. MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 7: Pre-Flight Inspection

    4. Pre-flight Inspection 4. Pre-flight Inspection Your paraglider is designed to be as simple as possible to inspect and maintain but a thorough pre-flight procedure is mandatory on all aircraft. The following pre-flight inspection procedure should be carried out before each flight. 1. Whilst opening out the paraglider check the outside of the canopy for any tears where it may have been caught on a sharp object or even have been damaged whilst in its bag. 2. Check that the lines are not twisted or knotted. Divide the suspension lines into six groups, each group coming from one riser. By starting from the harness and running towards the canopy remove any tangles or twists in the lines. Partially inflating the canopy in the wind will help to sort out the lines. 3. It is particularly important that the brakes are clear and free to move. Check the knot which attaches the brake handles to the brake lines. Both brakes should be the same length and this can be checked by asking an assistant to hold the upper end of the brake lines together whilst the pilot holds the brake handles. The brake lines should be just slack with the wing inflated when the brakes are not applied. After checking the brake lines lay them on the ground. 4. Always check the riser maillons and the attachment points to the paramotor frame or buggy. It is strongly recommended to use a safety strap. 5. Before getting into the harness you shoule be wearing a good crash helmet. Put on the harness ensuring all the buckles are secure and properly adjusted for comfort. 6. Check that the trimmers are closed and maillons at the same height – the position recommended for take-off. MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 8 4. Pre-flight Inspection WARNING Take care to protect yourself and other people from the propeller. Always start your motor up at a safe distance from other people. If it touches the ground it can fire objects into the air which could injure people several metres away. Remember there are inherent risks with petrol, oil and volatile or flammable materials. MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 9: Flight Characteristics

    5. Flight Characteristics 5. Flight Characteristics This manual is not intended as an instruction book. You should be a qualified pilot or under suitable supervision, but the following comments describe how to get the best from your paraglider. Weight range Each size of paraglider certified for a certain weight range. The weight refers to the ‘overall take-off weight’. The ‘In-flight weight range for free-flight’ is the weight of the pilot, paraglider, harness and other equipment carried when free-flying. The paraglider is EN/LTF certified for this weight range. The ‘extended weight range for PPG’ allows for all of the above, plus the paramotor and a full tank of fuel. It is the weight range approved by DGAC for flying under power. We recommend to fly in the middle of the weight range. If you fly in the lower half of the weight range, the turning agility decreases and the glider will be more damped. In strong turbulence the wing will have a slightly increased tendency to deform and to collapse than with a higher wing loading. Only fly lightly loaded if you fly in aerologically stable conditions, such as in the morning or evening. If you fly in the upper half of the weight range, agility and stability in turbulence will increase, and speed will increase slightly. The self-damping will decrease in turns, as well as after collapses. Take-off Your wing is easy to inflate in light or stronger winds and will quickly rise overhead to the flying position. The best MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 10 5. Flight Characteristics inflation technique is to hold one A-riser in each hand. The easiest take-off is usually obtained with the trimmers fully closed, maillons level. We recommend the trimmers are partially released for launching in strong-wind (more than 10km/h) conditions. Never try to launch if the wing is not fully inflated and above your head, and if you do not have full control of pitch and / or roll. Initial climb Once in the air, you should continue to face into the wind while you gain altitude. Leave the trimmers in the take-off (closed) position to attain the best climb rate. Do not attempt to increase your climb rate by braking, as using the brakes combined with the engine’s thrust can increase the angle of attack to the point where the wing can stall. In addition, this high angle of attack can result in a big dive if the motor suddenly dies, which could be dangerous if you are near the ground. Do not initiate a turn until you have sufficient height and speed to do so. In certain circumstances, a pilot can induce unintended oscillations. This can be due to a combination of the engine/propeller and pilot’s weightshift and / or action on the brakes. To stop these oscillations you should reduce the power, ensure that you are seated centrally and not accidentally applying weightshift, and that you are not acting on the brakes. Once the oscillations have stabilised you can gently reapply power. Straight flight and trimmers After take-off, once you have gained a safe altitude, if you want to increase your speed you can open up the trimmers completely, keeping your hands up. To reduce fuel consumption or to fly in thermals, the trimmers should be closed, pulled down to their maximum. It is important to regularly check the wear on the trimmers and that the system is functioning cleanly with no sticking MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 11 5. Flight Characteristics points. If they are showing signs of wear, the trimmers should be replaced by the pilot. You should never fly a paramotor in strong turbulence or violent winds. Turning The first turns should be gradual and progressive. The first action to change direction should be the movement of your weight in the harness towards the side of the intended turn. Then gently relax the pressure on the outer brake, and gently apply pressure to the inner brake until you attain the desired bank angle. To adjust your speed and turning-circle size, coordinate your weightshift with pressure on the outer brake. Remember that to violently apply pressure on the brakes is dangerous and should be avoided. Never initiate a turn if you are flying slowly, as you risk the glider entering a spin. Landing Set the trimmers to the closed position (maillons aligned) and set up your approach downwind of the landing field. When your height above the field is around 40m, slow the motor down and glide in the direction of your intended landing point. If you are sure to be able to reach your landing place, you should switch the engine off*. If not, power up, gain some height and make your approach again. When you are on your final approach with your engine off, maintain your speed (hands up) to keep plenty of energy in the wing until you are about 1-2 metres above the ground. Flare, braking slowly and gradually to slow down the wing until you are close to the stall-point and able to land on your feet. *If you land with the engine running there is a considerable risk of rotational propeller damage, (lines passing through the propeller, or even injury) MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 12 5. Flight Characteristics Active Piloting ‘Active piloting’ is a tool that will help you fly with greater safety and enjoyment. It means flying in empathy with your paraglider, not only guiding it through the air but also being aware of feedback from the wing, especially in thermals and turbulence. If the air is smooth the feedback can be minimal but in turbulence feedback is continuous and needs to be constantly assessed by the pilot. Such reactions become instinctive in good pilots. Rapid Descent Techniques Big Ears The ‘baby A-riser’ allows the wing tips of the paraglider to be folded in simply and easily to increase its sink rate. This big ear facility does not mean you should fly in stronger winds, but allows you to descend quickly without substantially reducing the forward speed of the canopy (B-lining substantially reduces the canopy’s forward speed). To engage big ears, lean forward in the harness and grasp the baby A-risers (one in each hand) at the maillons, keeping hold of both brake handles if possible. Pull the risers out and down at least 30cm so as to collapse the tips of the glider. It is very important that the other A-lines are not affected when you do this, as this could cause the leading edge to collapse. Steering is possible by weightshifting with big ears in. If the big ears do not come out quickly on their own, a gentle pump on the brakes will speed things up. Before using the big ears facility in earnest it is essential to practise beforehand with plenty of ground clearance in case a leading edge collapse occurs. Always keep hold of both brakes in order to retain control. Putting your hands through the brake handles so they remain on your wrists is a good method of doing this. B-Line Stall This fast descent method is a useful emergency procedure. With both hands through the brake handles, take hold of the top of the B-risers, one in each hand, and pull them down by around 50 cm. This will stall the canopy and forward speed will drop to zero. Make sure you have plenty of ground clearance because the descent rate can be over 10 m/sec. To increase the descent rate pull harder on the B-risers. When you release the B-risers the canopy will MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 13 5. Flight Characteristics automatically start flying again, normally within two seconds. Sometimes the canopy will turn gently when it exits from the B-line stall. It is normally better to release the B-risers fairly quickly rather than slowly, as doing so slowly may result in the canopy entering deep stall. Always release the risers symmetrically, as an asymmetric release from a B-line stall may result in the glider entering a spin. This manoeuvre is useful if you need to lose a lot of height quickly, perhaps when escaping from a thunderstorm. It should not be performed with less than 100m of ground clearance. Spiral Dive A normal turn can be converted into a strong spiral dive by continuing to apply one brake. The bank angle and speed of the turn will increase as the downward spiral is continued. Be careful to enter the spiral gradually as too quick a brake application can cause a spin or an over-the-nose spiral. BGD gliders are designed and tested to recover from normal spirals with a descent rate inferior to 16 m/s, automatically without pilot input. If the pilot increases the descent rate of the spiral to over 16 m/s or initiates what is known as an over-the-nose spiral, the glider may require pilot input to recover. In this case all the pilot needs to do is to apply some outside brake and steer the glider out of the turn. The over-the-nose spiral is a special type of spiral dive where the glider points almost directly at the ground. It will enter this if you make a sudden brake application during the spiral entry so that the glider yaws around. The nose of the glider ends up pointing at the ground, after which it picks up speed very quickly. This technique is very similar to SAT entry technique, and like the SAT it is an aerobatic manoeuvre, which is outside the normal safe flight envelope. Please do not practise these manoeuvres as they can be dangerous. Care should be taken when exiting from any spiral dive. To pull out of a steep spiral dive, release the applied brake gradually or apply opposite brake gradually. A sharp release of the brake can cause the glider to surge and dive as the wing converts speed to lift. Always be ready to damp out any potential dive with the brakes. Also be ready to encounter turbulence when you exit from a spiral because you may fly though your own wake turbulence, which can cause a collapse. MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 14 5. Flight Characteristics CAUTION: Spiral dives can cause loss of orientation (black-out) and some time is needed to exit this manoeuvre. This manoeuvre must be exited in time and with sufficient height. Accelerator (speed stirrup) and trimmers The PPG risers have trimmers and an accelerator system, which can be used to increase the speed. The standard trimmer setting is fully closed (maillons level), which is the slowest position. We recommend you fly in conditions where you can penetrate into wind without having to use the accelerator or fully opening the trimmers, which gives you a safety margin of extra speed should you need it. Glide deteriorates slightly and the glider is slightly more susceptible to collapses with trimmers open or the speed bar applied. Using the speed system can affect the pilot´s balance in the harness and it may be necessary to make some adjustments to the harness. To fly at maximum speed the trimmers should be released and the speed bar pushed progressively until the pullies touch. Do not go beyond this point by using excessive force to attempt to make the glider go faster as this may result in the glider collapsing. IMPORTANT: We do not recommend pilots to fly with full accelerator and trimmers fully open at the same time Check the speed system and trimmer components regularly for wear and tear, and ensure they always work smoothly. EN certification is only valid with the PPG risers when flown within the ‘In-flight weight range for free flight’, and with the trimmers set to their fully closed (slow) position.

  • Page 15: Recovery Techniques

    6. Recovery Techniques 6. Recovery Techniques Stalls Stalls are dangerous and should not be practised in the course of normal flying. Stalls are caused through flying too slowly. Airspeed is lost as brake pressure increases and as the canopy approaches the stall point it will start to descend vertically and finally begin to collapse. Should this occur it is important that the pilot releases the brakes at the correct moment. The brakes should never be released when the wing has fallen behind the pilot; the brakes should be released fairly slowly, to prevent the forward dive of the canopy from being too strong. A pre-release of the brake and the reconstruction of the full span is recommended to avoid the tips getting cravatted during the recovery. Pilots are advised never to attempt this manoeuvre unless under SIV instruction. This manual is not intended to give instruction in this or any other area. Deep Stall (or Parachutal Stall) Your paraglider has been designed so that it will not easily remain in a deep stall. However, if it is incorrectly rigged or its flying characteristics have been adversely affected by some other cause, it is possible that it could enter this situation. In the interests of safety all pilots should be aware of this problem, and know how to recover from it. The most common way to enter deep stall is from a flying too slowly, from a B-line stall or even from big ears. When in deep stall the pilot will notice the following: 1. Very low airspeed. 2. Almost-vertical descent (like a round canopy), typically around 5m/s. 3. The paraglider appears quite well inflated but does not have full internal pressure. It looks and feels a bit limp. MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 16 6. Recovery Techniques Recovery from deep stall is quite simple: the normal method is to simply initiate a mild turn. As the canopy starts to turn it will automatically change to normal flight, but it is very important not to turn too fast as this could induce a spin. The second method is to pull gently on the A-risers. This helps the airflow to re-attach to the leading edge, but be careful not to pull down too hard as this will induce a front collapse. If the deep stall is particularly stubborn and the previous methods do not work then a full stall will solve the problem. To do this apply both brakes again fairly quickly, as if to do a strong stall, then immediately release both brakes and damp out the forward surge in the normal way. The canopy will swing behind you then automatically reinflate and surge forward in front of you before returning to normal flight. It is the surge forward that exits the canopy from deep stall. Spins Spins are dangerous and should not be practised in the course of normal flying. Spins occur when the pilot tries to turn too fast. In a spin the pilot, lines and canopy basically stay vertical and rotate around a vertical axis. Your paraglider will resist spinning, but if a spin is inadvertently induced the pilot should release the brake pressure but always be ready to damp out any dive as the glider exits the spin. If the pilot does not damp the dive on exiting the spin the glider may have an asymmetric deflation. Symmetric Front Collapse It is possible that turbulence can cause the front of the wing to symmetrically collapse, though active piloting can largely prevent this from occurring accidentally. A pilot can reproduce the effect by taking hold of both the A-risers and pulling down sharply on them. The wing will automatically recover on its own from this situation in around 3 seconds. During this recovery period it is advisable not to apply the brakes as this could stall the wing. Asymmetric Front Collapse Your paraglider is very resistant to deflations; however if the canopy collapses on one side due to turbulence, the MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 17 6. Recovery Techniques pilot should first of all control the direction of flight by countering on the opposite brake. Most normal collapses will immediately reinflate on their own and you will hardly have time to react before the wing reinflates automatically. The act of controlling the direction will tend to reinflate the wing. However, with more persistent collapses it may be necessary to pump the brake on the collapsed wing using a long, strong, smooth and firm action. Normally one or two pumps of around 80 cm will be sufficient. Each pump should be applied in about one second and smoothly released. In severe cases it can be more effective to pump both brakes together to get the canopy to reinflate. Be careful not to stall the wing completely if this technique is used. Releasing a trapped tip (cravat) It should be difficult to trap the tip so that it will not come out quickly. However, following a very severe deflation any canopy could become tied up in its own lines. If this occurs then first of all use the standard method of recovery from a tip deflation as described in Asymmetric Front Collapse above. If the canopy still does not recover then pull the rear risers to help the canopy to reinflate. Pulling the stabilo line is also a good way to remove cravats, but remember to control your flight direction as your number-one priority. If you are very low then it is much more important to steer the canopy into a safe landing place or even throw your reserve. NOTE: Test pilots have tested your paraglider well beyond the normal flight envelope, but such tests are carried out in a very precise manner by trained test pilots with a back-up parachute, and over water. Stalls and spins on any paragliders are dangerous manoeuvres and are not recommended. Loss of brakes In the unlikely event of a brake line snapping in flight, or a handle becoming detached, the glider can be flown by gently pulling the rear risers for directional control. MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 18: Storage And Servicing

    7. Storage and Servicing 7. Storage and Servicing Storage & Care If you have to pack your canopy away wet, do not leave it for more than a few hours in that condition. As soon as possible dry it out or it can become affected by mould. Do not use direct heat sources to dry the canopy as it is inflammable. Using a dehumidifier is strongly recommended if several damp gliders are stored together frequently. Always store the canopy in a dry, warm place. Ideally this should be in the temperature range of 5 to 25 degrees centigrade. Never let your canopy freeze, particularly if it is damp. The canopy is made from high quality nylon, which is treated against weakening from ultra violet radiation. However it is always wise to minimise the exposure to UV radiation as this weakens the fabric of the canopy, and long exposure to harsh sunlight can severely compromise the safety of your canopy. Once you have finished flying, put your canopy away. Do not leave it laying in strong sunshine unnecessarily. If you are concerned about any aspect of the integrity of your paraglider please contact your nearest BGD dealer or talk to BGD directly. Never drag or slide the top surface of the glider over concrete or other hard surface as this can cause abrasion damage to the sail. Do not treat your canopy with chemical cleaners or solvents. If you must wash the fabric, use warm water and a little soap. If your canopy gets wet in sea water, wash it with warm water and carefully dry it. Small tears in the top or bottom surface (not normally the ribs) of a canopy can be repaired with a patch of self- adhesive ripstop nylon. Tears no longer than 100 mm can be repaired in this way providing they are not in a high- stress area. If you have any doubt about the airworthiness of your canopy please contact your dealer or BGD directly. MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 19 7. Storage and Servicing Servicing / Inspection It is important to have your glider regularly serviced. It should have a thorough check / inspection every 24 months or every 150 flight hours, whichever occurs first. This check must be made by the manufacturer, importer, distributor or other authorised persons. The checking must be proven by a stamp on the certification sticker on the glider as well in the service book. BGD will offer an inspection service every winter. This is a comprehensive service which checks line lengths and strength, fabric porosity and tear strength and a variety of other tests and we strongly advise all pilots to take advantage of this. Please print out the service pages from this manual, fill in the number of flights and hours flown in the Service Record, and send together with your glider when it goes for inspection or servicing. The manufacturer will only accept responsibility for paraglider lines and repairs which we have produced and fitted or repaired ourselves. Environmental protection and recycling Our sport takes place in the natural environment, and we should do everything to preserve our environment. A glider is basically made of nylon, synthetic fibres and metal. At the end of your paraglider’s life span, please remove all metal parts and put the different materials in an appropriate waste/recycling plant. MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 20: Technical Data

    8. Technical data 8. Technical data Materials The MAGIC MOTOR is made from the following quality materials: Top surface: Porcher Skytex 38g/m Bottom surface: Porcher Eazyfly white Internal structure: Porcher Skytex 38g/m Hard White Nose reinforcing: Plastic wire PA orange 2.4mm Risers: 20 mm black nylon Upper lines: Edelrid 8000U-70, 90 (non sheathed) Middle lines: Edelrid 8000U-120, 90 (non sheathed) Lower lines: Liros TSL 280, 190, 140 (sheathed) Brakes: Liros DSL 70, 110, 350 (sheathed) Spare parts can be obtained directly from BGD or though our network of registered BGD repair shops. For a full list check www.flybgd.com MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 21 8. Technical data Specifications Linear scaling factor 0.92 0.96 1.04 1.08 Projected area (m 17.83 19.53 21.23 22.93 24.63 Flat area (m Glider weight (kg) Total line length (m) Height (m) Number of main lines 3/4/3 3/4/3 3/4/3 3/4/3 3/4/3 Cells Flat aspect ratio 4.67 4.67 4.67 4.67 4.67 Projected aspect ratio 3.51 3.51 3.51 3.51 3.51 Root chord (m) 2.59 2.71...
  • Page 22 8. Technical data Overview of glider parts Cell openings Leading edge Trailing edge Upper lines Mid lines Brake lines Lower lines Risers Harness MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 23 8. Technical data PPG Risers Brake-line pulleys Baby-A or ‘big ears’ riser Limiter +45mm Accelerator system Trimmer +60mm MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 24 8. Technical data Brake and speedbar travel Size Accelerator range Brake range 12cm 65cm 14cm 70cm 14cm 75cm 14cm 80cm 14cm 85cm MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 25 8. Technical data Line Plan MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 26 8. Technical data Line Lengths All measures are in mm, with 50N line tension, this tension being slowly and gradually applied before taking the measurement. The lengths are measured from the lower surface of the canopy and include the risers. During the homologation tests the EN have checked the line lengths on the test model against the lengths quoted in the manual, after the test flights have been done. The difference between the manual lengths and those measured on the test glider can not be greater than 10mm. The measured lengths for the test glider can be found in teh appendix of this manual. MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 27 8. Technical data Size XS Overall line lengths Individual line lengths 6192 6084 6115 6259 6468 1225 1210 1343 1490 6134 6046 6081 6240 6320 1168 1173 1310 1468 6175 6066 6098 6216 6179 1210 1194 1328 6188 6090 6109 6190 6124 6153 6055 6083...
  • Page 28 8. Technical data Size S Overall line lengths Individual line lengths 6480 6367 6399 6551 6828 1282 1267 1406 1561 6421 6327 6364 6531 6671 1224 1228 1372 1538 6465 6348 6383 6509 6524 1269 1250 1392 6479 6376 6395 6482 6466 6442 6340 6369...
  • Page 29 8. Technical data Size M Overall line lengths Individual line lengths 6791 6665 6710 6862 7123 1336 1319 1441 1596 6735 6626 6673 6843 6960 1281 1281 1405 1574 6777 6649 6695 6822 6806 1324 1305 1428 6793 6675 6707 6794 6746 6754 6638 6680...
  • Page 30 8. Technical data Size ML Overall line lengths Individual line lengths 7061 6944 6971 7138 7401 1389 1372 1524 1694 6998 6903 6935 7120 7232 1327 1332 1489 1673 7047 6927 6957 7099 7073 1377 1357 1512 7066 6952 6972 7071 7010 7026 6914 6944...
  • Page 31 8. Technical data Size L Overall line lengths Individual line lengths 7314 7190 7223 7396 7772 1439 1422 1580 1756 7249 7148 7186 7378 7597 1375 1381 1544 1735 7300 7173 7209 7357 7433 1427 1407 1568 7321 7201 7226 7329 7370 7279 7163 7197...

  • Page 32: Service Booklet

    9. Service booklet 9. Service Booklet Test Flight Record Model Size Serial Number Colour Date of test flight Company signature and stamp MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 33 9. Service booklet Service Record Service No 1: Date : Stamp - Signature : No flights : Type of service : Service No 2: Date : Stamp - Signature : No flights : Type of service : Service No 3: Date : Stamp - Signature : No flights Type of service : MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 34 9. Service booklet Owner Record Pilot No 1 First name Family name Street City Post code Country Telephone Email: MAGIC-MOTOR-manual-EN-1-3 June 2020...
  • Page 35 9. Service booklet Owner Record Pilot No 2 First name Family name Street City Post code Country Telephone Email: MAGIC-MOTOR-manual-EN-1-3 June 2020...

  • Page 36: Closing Words

    10. Closing Words 10. Closing Words Your new paraglider promises many hours of safe and enjoyable flying, provided you treat it with care and always respect the potential dangers of aviation. Please always remember that flying can be dangerous and your safety depends on you. With careful treatment your wing should last for many years. It has been tested under current international airworthiness standards, and these represent the current knowledge concerning the safety of a glider. However, since there are still many unknown issues, for example the effective lifespan of the current generation of gliders and how strong the material aging can be accepted without affecting the airworthiness. There are natural forces that can threaten your safety, regardless of the quality of construction or the condition of your glider. Your security is ultimately your responsibility. We strongly recommend that you fly carefully, adapt to the weather conditions and keep your safety in mind. Flying in a club or a school with experienced pilots is highly recommended. We recommend that you fly with a standard harness with back protection and a reserve parachute. Always use good equipment and an approved helmet. See you in the sky! BGD GmbH Am Gewerbepark 11, 9413 St. Gertraud, Austria Tel: +43 (0) 4352 20477 e-mail: sales@flybgd.com www.flybgd.com MAGIC-MOTOR-manual-EN-1-3 June 2020...
