Summary of Contents for Bruce Goldsmith Design LUNA

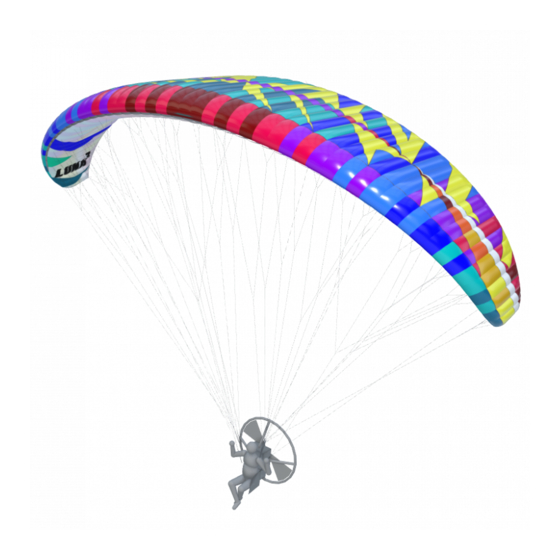

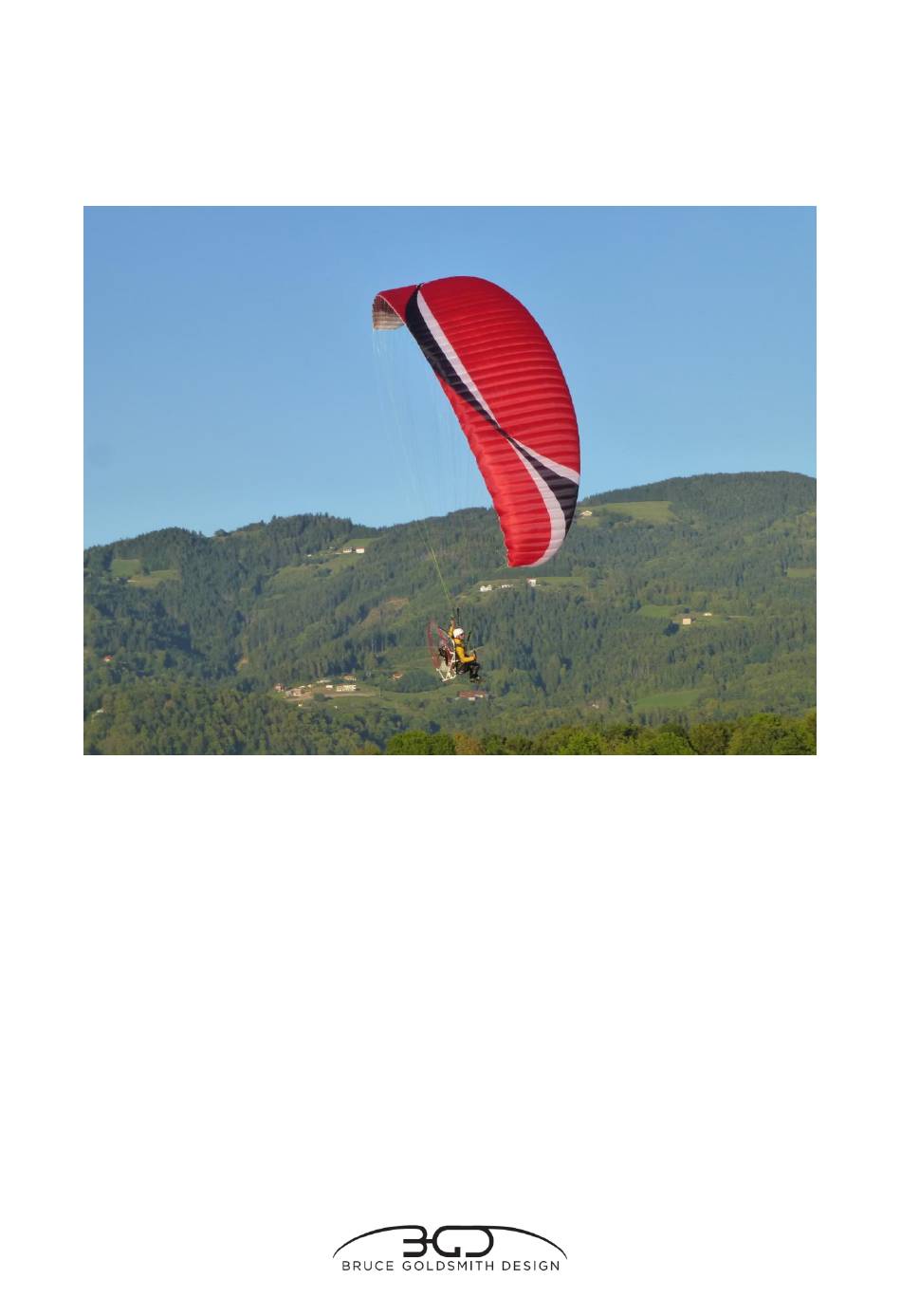

- Page 1 BRUCE GOLDSMITH DESIGN LUNA EN-C Paramotor Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria...
-
Page 2: Table Of Contents
Page 8 Recovery Techniques Page 9 Storage & Servicing Page 10 Technical data Page 11 Line Diagramm Page 12 Line length and materials Page 13 Trimmer riser description Page 14 Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria... -
Page 3: Introduction
As a Pilot of an BGD LUNA paramotor glider you have chosen one of the safest aircraft of its type available but it must be understood that flying can be a dangerous activity Properly trained people flying in a responsible and disciplined manner should only do it. -
Page 4: Quick Summary
When you pull the trim tab the trimmer automatically adjusts itself to the neutral position with all riser level. This is the best position for launch and landing. Launching is best done by pulling just the main A risers without the big ears risers. Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria... -
Page 5: Preflight Inspection
Pre-flight Inspection The LUNA is designed to be as simple as possible to inspect and maintain but a thorough pre-flight procedure is mandatory on all aircraft. The following pre-flight inspection procedure should therefore be carried out before each flight. -
Page 6: Flight Characteristics
Flight Characteristics This manual is not intended as an instruction book on how to fly the LUNA, you should be a qualified pilot or under suitable supervision, but the following comments describe how to get the best from your LUNA. - Page 7 The LUNA is highly resistant to collapse without any pilot action at all, but learning how to fly actively will increase this safety margin even further. It is not allowed to fly the paramotor glider in strong turbulence or high winds.
-
Page 8: Rapid Descent Manoeuvres
Wing Tip Area Reduction (Big Ears) The ‘baby A riser’ allows the LUNA to be ‘big eared’. The big ear device does not allow you to fly in stronger winds, but is a device which allows the pilot to descend quickly without substantially reducing the forward speed of the canopy (as is the case with B lining). - Page 9 Incidents / Recovery Techniques The LUNA is designed to the highest safety but it still may enter unusual flying attitudes under certain circumstances. These may be caused by pilot input, turbulence, unusual loads, Stalls etc. Deep Stall / Parachutal Stall It may happen that a glider keeps its normal shape on a very slow release of the B- lines, but stays descending vertically and without moving forward.
-
Page 10: Storage & Servicing
It is important to have your glider regularly serviced. Your LUNA should have a thorough check every year or every 200 flights, which ever is the earliest. BGD offers an inspection service every winter. This is a comprehensive service which checks line lengths and strength, fabric porosity and tear strength and a variety of other tests and we strongly advise all pilots to take advantage of this. -
Page 11: Technical Data
80 - 105 Kg (PTV) Motor Weight Range 105 - 145 Kg (PTV) Min speed Km/h Trim Speed 39-53 Km/h Top Speed Km/h Min sink m/sec Best glide Certification EN-C Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria... -
Page 12: Line Diagramm
Line diagram Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria... - Page 13 A lines - HMA,1.8,Red / A-6843-200-013 B lines - HMA,1.8,Blue / A-6843-200-005 C, BR4, D lines - HMA,1.8,Green / A-6843-200-006 KR1 lines - 979 2.3 yellow KR2 lines - Dyneema,1.0,Green/yellow / A-7850-100-007 Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria...
- Page 14 Difference in behavior between of New Luna risers and the traditional paramotor risers The graphs show how, to change the curvature of the reflex profile, the points of the New Luna Risers are connected in a more harmonious and clean way than the other traditional paramotor risers.
- Page 15 2 Risers Point Speed-System Activated / Trim Down New Puma risers Traditional paramotor risers type 1 Traditional paramotor risers type 2 Risers Point Speed-System Not Activated / Trim Up Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria...
- Page 16 See you in the sky! Bruce Goldsmith Design GmbH BGD R&D France Hügelweg 12, 11 Allée des Chênes, 9400 Wolfsberg, 06520 Magagnosc, Tel: +43 (0) 4352 35676 France Austria e-mail: sales@flybgd.com www.flybgd.com Rev_01_29.05.2013 Bruce Goldsmith Design GmbH, Hügelweg 12, 9400 Wolfsberg, Austria...
