BT PARAGON 400 PLUS User Manual

BT PARAGON 400 PLUS User Manual

Digital telephone answering machine
Hide thumbs Also See for PARAGON 400 PLUS:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARAGON 400 PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BT PARAGON 400 PLUS

Summary of Contents for BT PARAGON 400 PLUS

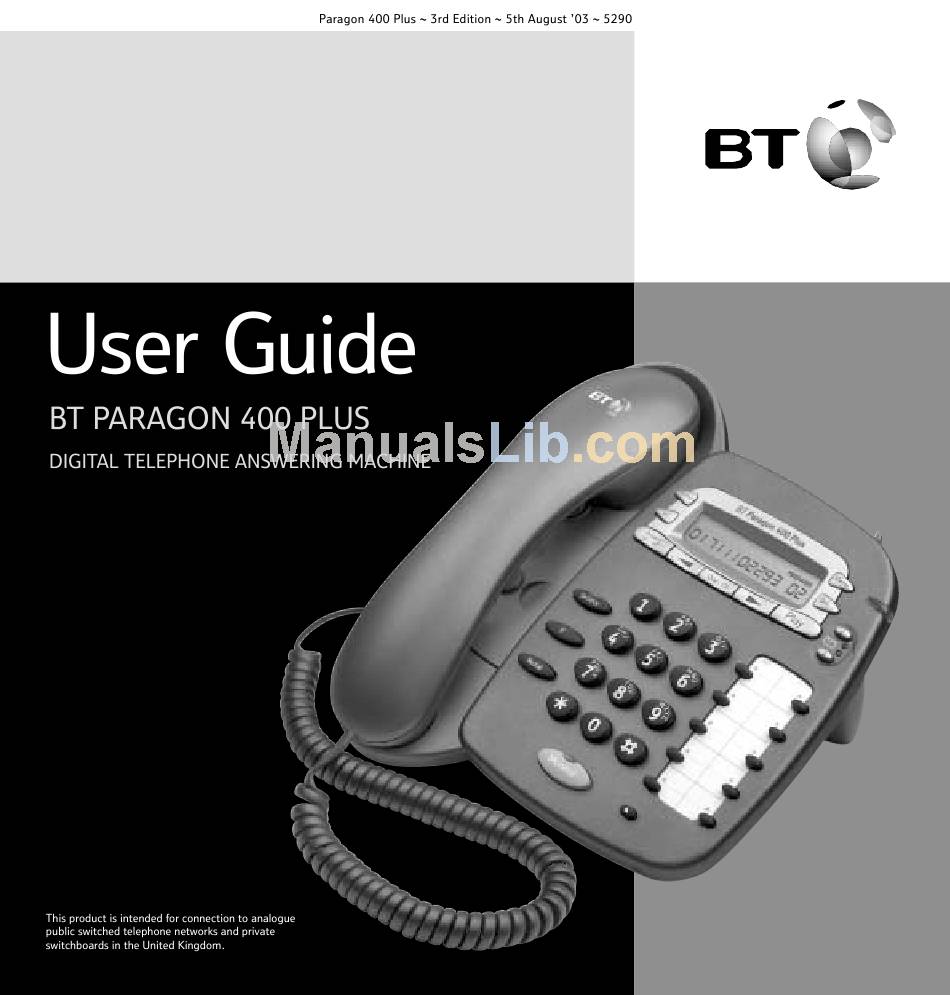

  • Page 2 Paragon 400 Plus ~ 3rd Edition ~ 5th August ’03 ~ 5290 Please open this page for an ‘at a glance’ guide to your BT Paragon 400 Plus.

  • Page 4: At A Glance

    For use when connected to a switchboard or BT Calling Features. Redial the last 5 numbers called. Also lets you enter a pause when storing numbers in the memory. Lets you skip forwards and backwards through your messages.
  • Page 5 Mode switch Default to TB Battery compartment Takes one LR61 battery (not supplied). Paragon 400 Plus ~ 3rd Edition ~ 5th August ’03 ~ 5290 MODE HANDSET CAUTION DISCONNECT FROM PHONE LINE BEFORE REPLACING BATTERY Handset socket Telephone line cord socket...

  • Page 6: Table Of Contents

    In this guide At a glance Introduction Setting up Using the telephone Using the answering machine Optional settings Help General information Wall-mounting template Index...

  • Page 7: Introduction

    Introduction You can expect your Paragon 400 Plus to give you many years of trouble-free service. Please read the instructions carefully before use and keep this User Guide for future reference. Date of purchase: Place of purchase: Serial number (on the underside of the telephone base):...

  • Page 8: Setting Up

    • Do not use your Paragon 400 Plus in damp, humid conditions such as bathrooms. • Do not expose the equipment to fire or water.
  • Page 9 25 hours back-up and ensure your messages are saved in the event of a mains power failure. Ensure the Paragon 400 Plus is disconnected from the telephone line. To fit the battery. Lift the cover.
  • Page 10 If you are connecting to a switchboard, check with your switchboard operator or communications manager which dialling mode you need. Your Paragon 400 Plus is approved for all compatible switchboards. For most switchboards the switch should be set to .
  • Page 11 If you use your Paragon 400 Plus as a desk phone you will need to fit the stand on to the base. Ensure all the cables on the underside of the base are in their respective channels. Proceed by holding the stand as shown in the illustration, ensuring the two arrows are facing each other.
  • Page 12 Press buttons in the order shown Press until TIME and DAY is shown on Menu the display. The prompt says “Please enter the day ” . Dial /OK Display the current day: MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY SUNDAY To confirm the day setting. The prompt Dial /OK says “Please enter the time using the 24 hour clock”.

  • Page 13: Using The Telephone

    Using the telephone Your Paragon 400 Plus has an inductive coupler in its handset, to improve sound quality for people using hearing aids. Switch your hearing aid to and adjust the position of the phone until you obtain the best sound.
  • Page 14 After replacing the handset, the volume returns to mid level. You can store 20 telephone numbers, each up to 32 digits long. The first 10 are stored under the locations M1-M10. The second 10 are stored under the locations M11-M20 using the shift key.
  • Page 15 Press the location to be deleted, or shift Press the button. The prompt says “Deleted”. It is possible to record a telephone conversation. You should inform your caller if you intend to record the telephone conversation. During your call press and release the Memo button.

  • Page 16: Using The Answering Machine

    The prompt will state either ‘Answer On’ or ‘Answer Off ’. Your Paragon 400 Plus also has two mailboxes which enable you to divide your messages for added convenience, for example, into personal and business messages or for two individual people.
  • Page 17 When your answering machine is switched on, the pre-recorded message will automatically greet callers with: “Hello, your call cannot be taken at the moment, so please leave your message after the tone.” Callers can skip this message by pressing start recording after the tone. You can replace this message with your own personal outgoing message.
  • Page 18 Your Paragon 400 Plus has a total recording capacity of 72 minutes. Your outgoing message is limited to a maximum of 2 minutes. Press until the display shows Menu OUTGOING MESSAGE. Display shows MAIN MESSAGE. Dial /OK To select between MAIN MESSAGE, MAILBOX 2 and MAILBOX 3.
  • Page 19 Pauses playback. Press again to resume. Play If you pause playback for more than 60 seconds, your Paragon 400 Plus will automatically return to normal mode. To playback messages in Mailboxes 2 and 3 Press the mailbox you want to listen to.
  • Page 20 Dial /OK While the Caller return setting is switched ON, the display shows 1471. You can let your Paragon 400 Plus answer a call and have the loudspeaker switched on so you can hear the caller. This gives you the option of picking up the handset and speaking to them or letting them leave a message.
  • Page 21 “Error. Please enter your 2 digit VIP code”. The previously saved code is displayed again with the first digit flashing. The code is displayed for 3 seconds and then the Paragon 400 Plus returns to the idle state.
  • Page 22 TouchTone keypad, play back your messages and memos. To help keep your messages private, your Paragon 400 Plus requires you to enter a 4-digit PIN. The pre-set code is 0000. Press until the display shows Menu SECURITY CODE.
  • Page 23 Press buttons in the order shown Ring your answering machine as normal. Press during the outgoing message. You hear two beeps. Use the keypad to enter your security PIN. Wait to hear the confirmation beep after each digit. After the last digit, the prompt says “You have X messages”...

  • Page 24: Optional Settings

    Time Saver is useful if you are ringing up from another phone to see if you have any messages. With Time Saver set, your Paragon 400 Plus will answer your call after 6 rings if there are no messages, or after 2 rings if you have messages recorded.
  • Page 25 Press buttons in the order shown While your phone is idle: Press to decrease or increase the contrast.

  • Page 26: Help

    - at least 2 seconds between each digit for your Paragon 400 Plus to recognise each one. If your Paragon 400 Plus will not respond to any button presses, remove the back-up battery and turn off the power for 10 seconds. Turning the power back on will reset your machine to ANSWER ON mode.

  • Page 27: General Information

    12 months from the date of purchase. Subject to the terms listed below the guarantee will provide for the repair of, or at BT’s or its agent’s discretion the option to replace the Paragon 400 Plus, or any component thereof,...
  • Page 28 You will still be able to make and receive telephone calls on your Paragon 400 Plus even if the mains power fails and there is no back-up battery installed. However, the answering machine will not work until the mains power is restored.

  • Page 29: Wall-Mounting Template

    Wall-mounting template If wall-mounting your Paragon 400 Plus, drill two holes for the screws using this template and insert the wall plugs provided (if required).

  • Page 30: Index

    PIN switch answering machine on Ring tone afety Secrecy Setting up Store quickdial number Switchboard use echnical information Telephone line cord Time Two way recording change code incoming calls on/off 13, 15 Volume answering machine (call screening) earpiece...
