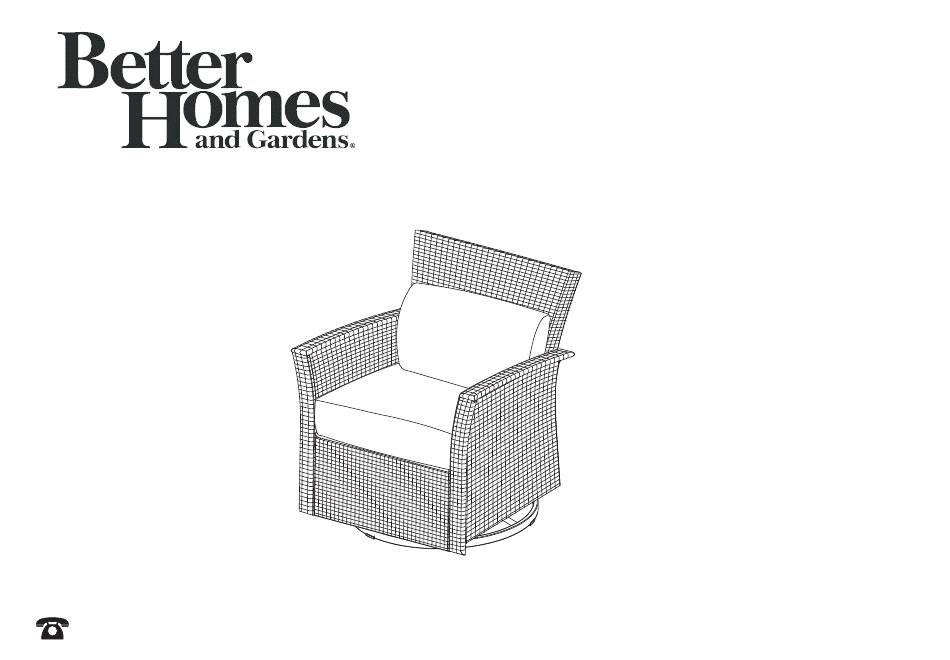

- Page 1 Cades Cove Woven Swivel Gilder # BGF06923J01 UPC # 0-50874-52643-4 If parts are missing or you need assistance please contact our Customer Service Center, Monday through Friday 9am - 5pm (Eastern Time) at 1-800-416-3511. Page 1...
- Page 2 IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!! TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT Step 1: Carefully unpack and identify all parts packed in the carton against the parts list. Remove all protective materials. If you are missing any parts or unsure how to proceed with assembly, please call our Customer Service Center at 1-800-416-3511.
- Page 3 Step 4: Attach the completed base to the completed seat frame by using four 5/16"x3 mm bolts and four washers as shown in Fig.5 . Guide the Ø8 5 X 1.5mm bolts through holes in base, into the pre-drilled holes in the seat. Hand tighten only.
- Page 4 PARTS LIST PARTS LIST DESCRIPTION ORDER PART # 1/4" X 20 MM BOLT HW0036 1/4" X 30 MM BOLT HW0038 5/16" X 35 MM BOLT HW0092 1/4" X 40MM BOLT HW0086 1/4" X 45MM BOLT HW0040 Ø6 5 X 1.0 MM HW0004 WASHER Ø8 5 X 1.5 MM...
- Page 5 * NOTE: PARTS SHOWN BELOW ARE NOT TO SCALE PARTS LIST DESCRIPTION ORDER PART # SG0193 BACK FRAME LEFT SG0194 RIGHT SG0195 SEAT FRAME SG0196 SUPPORT FRAME SG0197 GLIDER BASE W/ SG0198 GLIDER BRACKET GLIDER BRACKET G0211 FACTORY ASSEMBLY ST4 8 X 25 BOLT HW0695 FACTORY ASSEMBLY FOOTCAP...
- Page 6 CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly drain frames, remove foot caps and tilt the frames, if necessary, to remove all water.
