Quick Start

Thank you for purchasing the MSI®
section provides demonstration diagrams about how to install your computer. Some
of the installations also provide video demonstrations. Please link to the URL to watch
it with the web browser on your phone or tablet. You may have even link to the URL by
scanning the QR code.

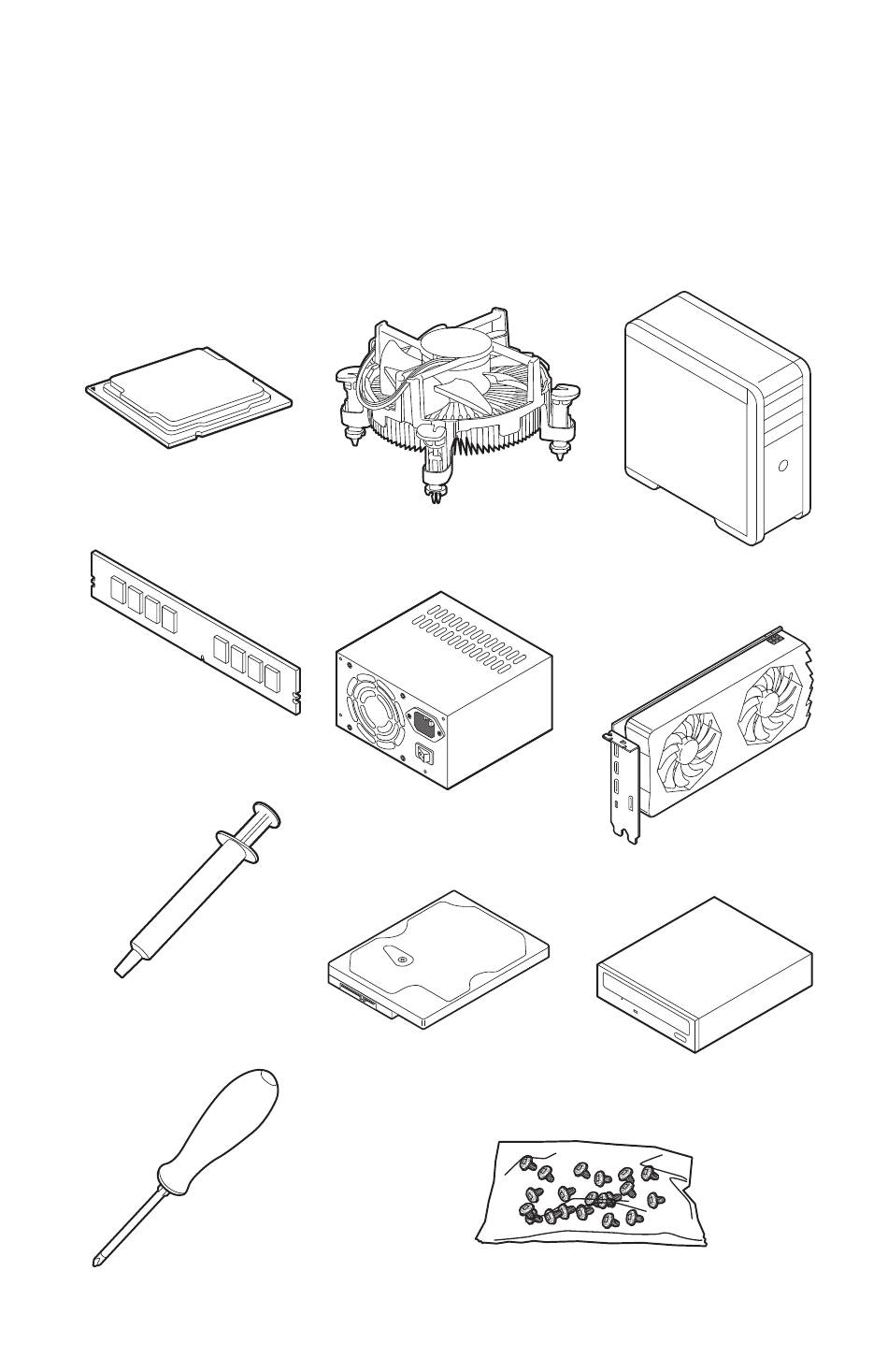

Preparing Tools and Components

Intel
LGA 1200 CPU
®
DDR4 Memory
Thermal Paste
Phillips Screwdriver
MEG Z490 GODLIKE
CPU Fan
Power Supply Unit
SATA Hard Disk Drive
motherboard. This Quick Start
Graphics Card
SATA DVD Drive
A Package of Screws
Chassis
1
Quick Start
