8e6 Technologies Threat Analysis Reporter TAR Quick Start Manual

Threat analysis reporter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Threat Analysis Reporter
®

QUICK START

GUIDE
Model: TAR
HL-005-004, SL-004-004, MSA-004-004
Release: 1.2.00 / Updated: 09.19.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Threat Analysis Reporter TAR and is the answer not in the manual?

Questions and answers

Related Manuals for 8e6 Technologies Threat Analysis Reporter TAR

Summary of Contents for 8e6 Technologies Threat Analysis Reporter TAR

  • Page 1: Quick Start

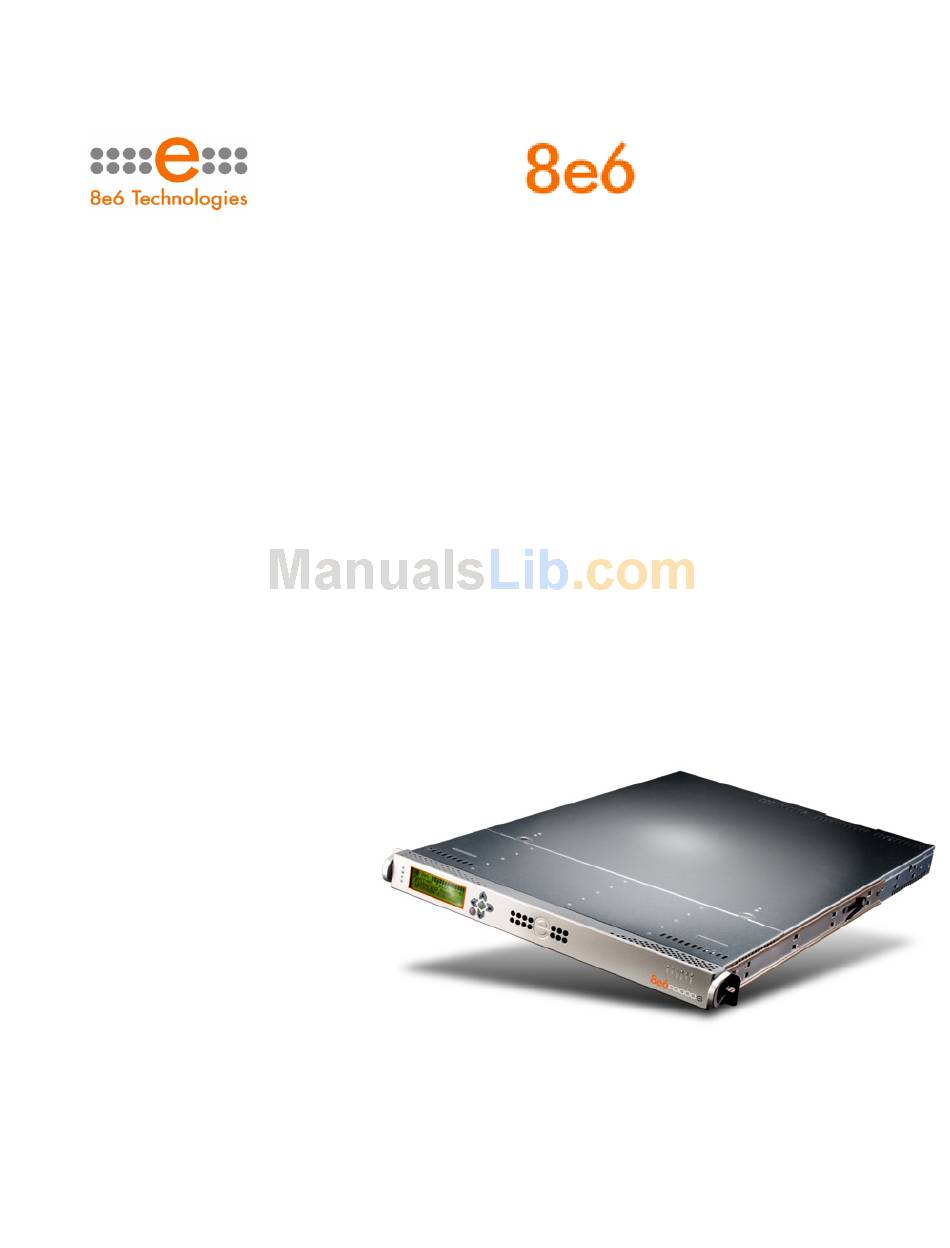

    Threat Analysis Reporter ® QUICK START GUIDE Model: TAR HL-005-004, SL-004-004, MSA-004-004 Release: 1.2.00 / Updated: 09.19.08...
  • Page 2 8e6 Technologies. Every effort has been made to ensure the accuracy of this document. However, 8e6 Technologies makes no war- ranties with respect to this documentation and disclaims any implied warranties of merchantability and fitness for a particular purpose.

  • Page 3: Table Of Contents

    ontents hreat nalysis eporter About this Document ... 2 Conventions Used in this Document ... 2 ...3 erviCe nformation reliminary etup roCedures Unpack the Unit from the Carton ... 4 Select a Site for the Server ... 5 Rack Mount the Server ... 6 Check the Power Supply ...
  • Page 4 hreaT nalysis eporTer uick TarT uide...

  • Page 5: T Hreat A Nalysis R Eporter I Ntroduction

    Thank you for choosing to evaluate the 8e6 Technologies Threat Analysis Reporter. This product addresses user-generated Web threats such as excessive use of bandwidth and inappropriate Internet usage, and provides network administrators tools to monitor such threats so management can enforce corporate Internet usage policies.

  • Page 6: About This Document

    Introduction - This section is comprised of an overview of the Threat Analysis Re- porter product and how to use this document • Service Information - This section provides 8e6 Technologies contact information • Preliminary Setup Procedures - This section includes instructions on how to physi- cally set up the Threat Analysis Reporter unit in your network environment •...

  • Page 7: S Ervice I Nformation

    The user should not attempt any maintenance or service on the unit beyond the proce- dures outlined in this document. Any initial hardware setup problem that cannot be resolved at your internal organiza- tion should be referred to an 8e6 Technologies solutions engineer or technical support representative. 8e6 Corporate Headquarters (USA) Local 714.282.6111...

  • Page 8: P Reliminary S Etup P Rocedures

    reliminary Unpack the Unit from the Carton Inspect the packaging container for evidence of mishandling during transit. If the packag- ing container is damaged, photograph it for reference. Carefully unpack the unit from the carton and verify that all accessories are included. Save all packing materials in the event that the unit needs to be returned to 8e6 Tech- nologies.

  • Page 9: Select A Site For The Server

    Select a Site for the Server The server operates reliably within normal office environmental limits. Select a site that meets the following criteria: • Clean and relatively free of excess dust. • Well-ventilated and away from sources of heat, with the ventilating openings on the server kept free of obstructions.

  • Page 10: Rack Mount The Server

    Rack Mount the Server Rack Setup Precautions Warning: Before rack mounting the server, the physical environment should be set up to safely ac- commodate the server. Be sure that: • The weight of all units in the rack is evenly distributed. Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

  • Page 11: Rack Setup Suggestions

    Rack Mount Instructions for HL Servers Rack Setup Suggestions • Determine the placement of each component in the rack before you install the rails. • Install the heaviest server components on the bottom of the rack first, and then work Identify the Sections of the Rack Rails You should have received two rack rail assemblies with the 8e6 server unit.
  • Page 12 Locking Tabs: Both chassis rails have a locking tab, which serves two functions. The first is to lock the server into place when installed and pushed fully into the rack, which is its normal position. Secondly, these tabs also lock the server in place when fully ex- tended from the rack.
  • Page 13 Install the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server chassis into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails.
  • Page 14 Install the Server into a Telco Rack If you are installing the 8e6 server unit into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will ex- tend out the front of the rack.
  • Page 15 Rack Mount Instructions for SL Servers Rack Setup Suggestions • Determine the placement of each component in the rack before you install the rails. • Install the heaviest server components on the bottom of the rack first, and then work Install the Inner Slides 1.
  • Page 16 Install the Slide Assemblies to the Rack 1. After you have installed the short and long brackets to the outer slides, you are ready to install the whole slide assemblies (outer slides with short and long brackets at- tached) to the rack. (See the previous page.) 2.
  • Page 17 Install the Chassis into the Rack 1. Push the inner slides, which are attached to the chassis, into the grooves of the outer slide assemblies that are installed in the rack as shown below: 2. Push the chassis all the way to the back of the outer slide assemblies as shown be- low: hreaT nalysis...
  • Page 18 Rack Mount Instructions for MSA Servers Optional: Install the Chassis Rails NOTE: If your chassis does not come with chassis rails, please follow the procedure listed on the last page of this sub-section to install the unit directly into the rack. CAUTION: Please make sure that the chassis covers and chassis rails are installed on the chassis before you install the chassis into the rack.
  • Page 19 3. Locate the three holes on each side of the chassis and locate the three correspond- ing holes on each of the inner rail. 4. Attach an inner rail to each side of the chassis and secure the inner rail to the chas- sis by inserting three Type G screws through the holes on each side of the chassis and the inner rail.
  • Page 20 Optional: Install the Traditional UP Racks After you have installed the inner rails on the chassis, you are ready to install the outer rails of rail assemblies to the rack. NOTE: The rails are designed to fit in the racks with the depth of 28” to 33”. •...
  • Page 21 7. Slide the chassis into the rack as shown below. NOTE: The chassis may not slide into the rack smoothly or easily when installed the first time. Some adjustment to the slide assemblies might be needed for easy installation. 8. You will need to release the safety taps on both sides of the chassis in order to com- pletely remove the chassis out of the rack.
  • Page 22 Optional: Install the Open Racks After you have installed the inner rails on the chassis, you are ready to install the outer rails of rail assemblies to the rack. NOTE: The rails are designed to fit in the racks with the depth of 28” to 33”. •...
  • Page 23 3. Attach the front (short) bracket to the front end of the rack, and secure it to the rack with two Type H screws and Type I washers as shown below. (See the previous page for descriptions of Type H and Type I hardware components.) 4.
  • Page 24 5. Measure the depth of your rack and adjust the length of the rails accordingly. Then, secure the rails to the chassis with Type G screws. 6. Slide the inner rails which are attached to the chassis into the outer rails on the rack. hreaT nalysis eporTer...
  • Page 25 Install the Chassis into the Rack CAUTION: Before installing the chassis into the rack: • Make sure that the rack is securely anchored onto an unmovable surface or structure before installing the chassis into the rack. • Unplug power cord(s) of the rack before installing the chassis into the rack. •...
  • Page 26 Install the SL or HL Server Bezel After rack mounting an SL or HL server, the bezel should be installed on the front end of the chassis. NOTE: This portion of the installation process requires you to unpack the bezel. The bezel has been packaged separately from the unit to prevent damage during shipping.

  • Page 27: Check The Power Supply

    Check the Power Supply This server is equipped with a universal power supply that handles 100-240 V, 50/60 Hz. A standard power cord interface (IEC 950) facilitates power plugs that are suitable for most European, North American, and Pacific Rim countries. Power Supply Precautions Warning: •...

  • Page 28: General Safety Information

    WARNING: If the server is used in a manner not specified by the manufacturer, the protection provided by the server may be impaired. WARNING: 8e6 Technologies is not responsible for regulatory compliance of any server that has been modified. Altering the server’s enclosure in any way other than the installation operations specified in this document may invalidate the server’s safety certifications.

  • Page 29: Electrical Safety Precautions

    • Do not expose the server to rain or use near water. If liquids of any kind should leak into the chassis, power down the server, unplug it, and contact 8e6 Technologies technical support. • Disconnect power from the server before cleaning the unit. Do not use liquid or aero- sol cleaners.

  • Page 30: Motherboard Battery Precautions

    Motherboard Battery Precautions Caution: The battery on the motherboard should not be replaced without following instructions provided by the manufacturer. Only qualified service personnel should replace batteries. The battery contains energy and, as with all batteries, a malfunction can cause heat, smoke, or fire, release toxic materials, or cause burns.

  • Page 31: I Nstall The S Erver

    nstall the erver Step 1: Initial Setup Procedures This step requires you to link the workstation to the Threat Analysis Reporter. You have the option of using the text-based Quick Start setup procedures described in Step 1A, or, if you have an SL or HL unit, the LCD panel setup procedures described in Step 1B. Quick Start Setup Requirements •...

  • Page 32: Step 1A: Quick Start Setup Procedures

    Step 1A: Quick Start Setup Procedures Link the Workstation to the Threat Analysis Reporter Monitor and Keyboard Setup A. Connect the PC monitor and keyboard cables to the rear of the chassis (see Fig. 1 for an SL or MSA unit, and Fig. 2 for an HL unit). B.
  • Page 33 Fig. 3 - Diagram of SL chassis front panel, power button at far right Fig. 4 - Diagram of MSA chassis front panel, power button at far right Fig. 5 - Diagram of HL chassis front panel, power button at far right Once the Threat Analysis Reporter is powered up, proceed to the instructions for Hyper- Terminal Setup Procedures.

  • Page 34: Hyperterminal Setup Procedures

    HyperTerminal Setup Procedures If using a serial console, follow these procedures to create a HyperTerminal session on the serial console. A. Launch HyperTerminal by going to Start > Programs > Accessories > Communica- tions > HyperTerminal: B. In the Connection Description dialog box, enter any session Name, and then click OK to open the Connect To dialog box: hreaT nalysis...
  • Page 35 C. At the Connect using field, select the COM port assigned to the serial port on the laptop (probably “COM1”), and then click OK to open the Properties dialog box, dis- playing the Port Settings tab: D. Specify the following session settings: •...
  • Page 36 F. In the HyperTerminal session window, go to File > Properties to open the Properties dialog box, displaying the Connect To and Settings tabs: G. Click the Settings tab, and at the Emulation menu select “VT100”. H. Click OK to close the dialog box, and to go to the login screen. NOTE: If using a HyperTerminal session, the login screen will display with black text on a white background.
  • Page 37 Quick Start menu instructions For these Quick Start setup procedures, you will need your network administrator to pro- vide you the LAN 1 and LAN 2 IP address and subnet mask, gateway IP address, DNS server IP address(es), host name of the server, and IP address for the Web interface (if using a NAT device).
  • Page 38 E. At the Press the number of your selection prompt, press 2 to display the Adminis- trator Password Entry screen: F. At the Enter the administrator password prompt, re-enter your password: #s3tup#r3k G. Press Enter to display the Administration menu where you can begin the Quick Start setup process using the configuration screens: H.
  • Page 39 Configure Network Interface screen A. At the Enter interface lan1 IP address field, enter the IP address for the LAN 1 interface, and then press Enter to go to the next screen. B. At the Enter interface lan1 netmask field, enter the subnet mask for the LAN 1 in- terface using the dotted decimals notation format.
  • Page 40 C. Press Y for “Yes” to confirm and save your entries for the LAN1 interface, and to go to the next screen. D. At the Enter interface lan2 IP address field, enter the IP address for the LAN 2 interface, and then press Enter to go to the next screen. E.
  • Page 41 Configure default gateway screen A. At the Enter default gateway IP field, enter the IP address for the default gateway. Press Enter to display the confirmation prompt. B. Press Y for “Yes” to confirm and save your entry for the gateway IP address, and to go to the Configure Domain Name Servers screen.
  • Page 42 B. At the Enter (optional) second DNS server IP field, if you have a secondary Do- main Name Server you wish to use, enter the IP address for that server. Press Enter to display the confirmation prompt. C. Press Y for “Yes” to confirm and save your entries for the domain name servers, and to go to the Configure Host Name screen.
  • Page 43 B. Press Y for “Yes” to confirm and save your entry for the host name, and to go to the Time zone regional configuration screen. Time zone regional configuration screen A. Use the up and down arrows in your keyboard to select your region. After selecting your locality, press Y for “Yes”...
  • Page 44 Configure Wizard user screen A. At the Enter wizard user name field, enter the username that will be used to access the setup wizard in the Threat Analysis Reporter interface. Press Enter to display the confirmation prompt. B. Press Y for “Yes” to confirm and save your entry and to go to the next screen. C.

  • Page 45: Administration Menu

    Quick Start Setup confirmation screen Press Y for “Yes” to save all your Quick Start setup entries and to return to the Adminis- tration menu. NOTE: When saving your entries, there may be a 4-10 second delay before the Administration menu displays. Administration menu After making all entries using the Quick Start setup process, you will return to the Admin- istration menu.

  • Page 46: System Status Screen

    System Status screen The System Status screen contains the following information: • lan1 interface for web access and R3000 communications: LAN1 IP address and netmask specified in screen 3 (Configure Network Interface), and current status (“Active” or “Inactive”) • lan2 interface for bandwidth monitoring: LAN2 IP address and netmask specified in screen 4 (Configure Network Interface), and current status (“Active”...

  • Page 47: Bandwidth Management

    Physically Connect the Unit to the Network After performing initial setup procedures for the Threat Analysis Reporter, the unit should be physically connected to the network. This step requires a standard CAT-5E cable to connect the unit to the network. An additional CAT-5E cable is required if the Ethernet Tap unit will be installed for bandwidth monitoring.

  • Page 48: Step 1B: Lcd Panel Setup Procedures

    IP / LAN2 > • Gateway • DNS 1 > • DNS 2 > • Host Name > • Regional Setting (Time Zone, date, time) • Admin Console Wizard User 8e6 Technologies Display Initializing Please Wait hreaT nalysis eporTer uick TarT uide...
  • Page 49 • Reboot > • Shutdown > NOTE: Navigation tips in the 8e6 menu: • Use the up / down arrow key to scroll up / down the menu • Press the checkmark key to choose the current selection • Press the “X” to go back to the previous screen Make a selection from the menu, and press the checkmark key to go to that screen.
  • Page 50 Gateway When the Gateway option is selected, the Gateway screen displays with the Configure Gateway IP menu item. A. Choose Configure Gateway IP and press the checkmark key to go to the Configure Gateway IP screen. B. Use the up / down keys to increase / decrease the current value, and the left / right arrow keys to navigate across the line.
  • Page 51 C. Press the checkmark key to return to the previous screen. D. Press the “X” key to return to the 8e6 menu. Regional Setting (Time Zone, date, time) When the Regional Setting (Time Zone, date, time) option is selected, the Regional Set- ting (Time Zone, date, time) screen displays with the Region menu item.

  • Page 52: Lcd Options Menu

    Shutdown When the Shutdown option is selected, the Shutdown screen displays with two menu items. A. Choose one of two options: • Yes, shutdown now!! - This selection shuts down the Threat Analysis Reporter. • No, cancel shutdown - This selection returns you to the previous screen. B.

  • Page 53: Lcd Controls

    LCD Controls When the LCD Controls option is selected, the LCD Controls screen displays with the following menu items: Contrast, On Brightness, Off Brightness. A. Choose one of the menu selections and press the checkmark key to go to that screen: •...

  • Page 54: Step 2: Wizard Setup Procedures

    Step 2: Wizard Setup Procedures For this step, you will need your network administrator to provide you the following infor- mation: • IP range and netmask of machines on the network the Threat Analysis Reporter server will be monitoring • R3000 IP address, and port number to be used between the R3000 and Threat Analysis Reporter •...

  • Page 55: Log In To The Threat Analysis Reporter Wizard

    D. After reading the End User License Agreement, you have the option to do either of the following: • Click No to close both the EULA Agreement dialog box and the Threat Analysis Reporter interface. You will not be able to enable the Threat Analysis Reporter for use in your environment.
  • Page 56 Wizard Step 1: Register administrator Step 1 is performed in the left side of the first screen of the wizard: A. Enter the username the global administrator will use when logging into the Threat Analysis Reporter Administrator console. The global administrator has the highest level of permissions in the Threat Analysis Reporter interface.
  • Page 57 D. Click the [+] Add tab below to open the IP Range Information dialog box: E. Enter the Bandwidth IP address range for the bandwidth the Threat Analysis Re- porter will monitor. F. Enter the Bandwidth Netmask for the bandwidth IP range to be monitored, using the dotted decimals notation format.
  • Page 58 To modify an IP address range, double-click the entry in the list box to highlight it and to display the [-] Remove tab to the left of the [+] Add tab: • To modify the entries made for the IP address range, click the [+] Add tab to re- open the IP Range Information dialog box and edit information, as necessary.
  • Page 59 Wizard Step 2: Register R3000 & ER Step 2 is performed in the right side of the first screen of the wizard. R3000: Specify information for the R3000 to be used with the Threat Analysis Reporter: A. Click the [+] Add tab above the R3000 list box to open the R3000 Information dialog box: B.
  • Page 60 E. Click OK to close the dialog box and to display your entries in the list box: NOTE: Additional R3000 servers can be included by clicking the [+] Add tab again and making the entries described in steps A through E above. To modify an R3000 entry, double-click the R3000 entry in the list box to highlight it and to display the Set as Source tab and the [-] Remove tab to the left of the [+] Add tab:...
  • Page 61 • To modify the IP address and Server Name for the R3000 server, click the [+] Add tab to re-open the R3000 Information dialog box, and edit information as necessary. Click OK to close the dialog box and to display the modified informa- tion in the list box.
  • Page 62 Respond to the question “Do you have an Enterprise Reporter?” by clicking the radio button corresponding to either “Yes” or “No”. • If “No” was selected, click SAVE > at the bottom right of the screen to go to Step 3. •...

  • Page 63: Step 3: Server Settings

    Step 3: Server Settings Step 3, the following R3000 server information displays: SMTP Server Settings, Patch Server Settings, PROXY Server Settings, NTP Server Settings: After reviewing the information in this screen, the following actions can now be per- formed: • To print this information, click the PRINT button.

  • Page 64: Led I Ndicators And B Uttons

    led i ndiCators and SL and MSA Units Front LED Indicators and Buttons for Hardware Status Monitoring LED indicators and buttons for hardware status monitoring display on the front panel, located on the right side of the SL and MSA chassis (see diagrams below). SL chassis control panel MSA chassis control panel LED indicators alert you to the status of a feature on the unit while buttons let you per-...

  • Page 65: Hl Unit

    HL Unit Front LED Indicators and Buttons for Hardware Status Monitoring On an HL unit, the following control panel buttons, icons, and LED indicators for hard- ware status monitoring display on the right side of the front panel: HL chassis control panel The buttons and LED indicators for the depicted icons function as follows: UID (button) –...
  • Page 66 Rear LED Indicators for Hardware Status Monitoring UID (LED indicator) – On the rear of the HL chassis, to the left of the power supplies, a steady blue UID LED indicator displays when the UID button on the control panel is pressed.

  • Page 67: Hl And Sl Units

    HL and SL Units Front LED Indicators for Software and Hardware Status Monitoring On an HL or SL unit, the following LED indicators for software and hardware status moni- toring display on the left side of the front panel: left side of the front panel LED Indicator Color...

  • Page 68: R Egulatory S Pecifications And D Isclaimers

    egulatory Declaration of the Manufacturer or Importer Safety Compliance USA: UL 60950-1 2nd ed. 2007 Europe: Low Voltage Directive (LVD) 2006/95/EC to CB Scheme EN 60950: 2006 International: UL/CB to IEC 60950-1:2006 Electromagnetic Compatibility (EMC) USA: FCC CFR 47 Part 15, Verified Class A Limit Canada: IC ICES-003 Class A Limit Europe:...

  • Page 69: Electromagnetic Compatibility Class A Notice

    Electromagnetic Compatibility Class A Notice Industry Canada Equipment Standard for Digital Equipment (ICES-003) Bureau of Standards Metrology and Inspection (BSMI) - Taiwan hreaT nalysis eporTer uick TarT uide...

  • Page 70: Declaration Of Conformity

    I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s). Location: Orange, CA, USA Date: January 21, 2008 8e6 Technologies 828 W. Taft Avenue Orange, CA 92865 Low Voltage • 2006/95/EC • 2004/108/EC Safety •...

  • Page 71: A Ppendix : O Ptional E Thernet T Ap I Nstallation

    Unpack the Ethernet Tap Unit from the Box Open the NetOptics Ethernet Tap box and verify that all accessories are included. Save all packing materials in the event that the unit needs to be returned to 8e6 Technologies. The NetOptics box should contain the following items: •...

  • Page 72: Install The Ethernet Tap Unit

    nsTallaTion Install the Ethernet Tap Unit Diagram showing TAR Ethernet Tap installation on the network This step is a continuation from Physically Connect the Unit to the Network in Step 1A or following setup in Step 1B. The procedures outlined in this step require the use of a CAT-5E cable.
  • Page 73 C. Using a crossover cable, connect one end to the Switch’s port configured to be the destination port of the Port Mirror. If adding a Threat Analysis Reporter to an existing installation, this port would be the port that was originally occupied by the listening interface of the R3000. D.

  • Page 74: I Ndex

    ndex BSMI 64, 65 Change Quick Start password 41 crossover cable 67, 69 EMC 64, 66 FCC 64 HL 1, 4, 7, 22, 24, 27, 28, 29, 43, 44, 61, 62, 63, 64, 66 HyperTerminal Setup 30 ICES-003 64, 65 Install Bezel 22 Install TAP 67 LCD Panel 27...
  • Page 75 R3000 1, 27, 42, 50, 55, 56, 57, 68, 69 Rack Setup Precautions 6 RAID 1, 63 reboot 45, 47 RoHS compliant 66 serial port cable 27, 28 shut down 48 SL 1, 4, 11, 22, 27, 28, 29, 43, 44, 60, 63, 64, 66 spare parts kit 4 UID 61, 62 UL 64...
  • Page 76 8e6 Corporate Headquarters (USA): 828 West Taft Avenue Orange, CA 92865-4232 • Tel: 714.282.6111 or 888.786.7999 Fax: 714.282.6116 (Sales/Technical Support) • 714.282.6117 (General Office) Satellite Office: 8e6 Taiwan: 7 Fl., No. 1, Sec. 2, Ren-Ai Rd., Taipei 10055, Taiwan, R.O.C. Tel: 886-2-2397-0300 •...
